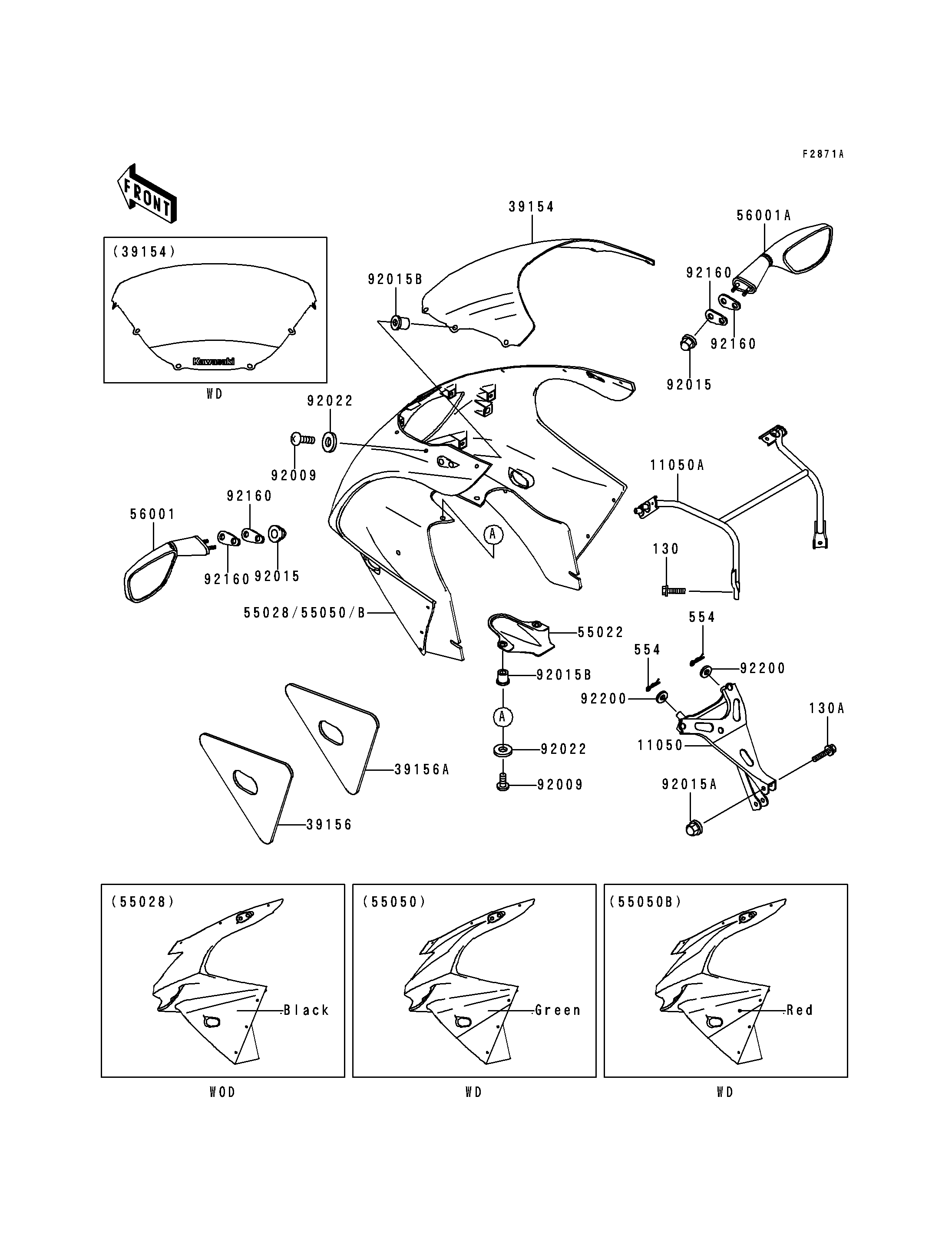

1999 Ninja® ZX™-6R - Cowling(ZX600-G2)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
554
554
11050
11050A
39154
39156
39156A
55022
55028
55050
56001
56001A
92009
92009
92015
92015
92015A
92015B
92015B
92022
92022
92160
92160
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 2
BOLT-FLANGED,8X30 130A 130J0830 2
PIN-SNAP,12MM 554 554A1200 2
BRACKET,UPP COWLING 11050 11050-1437 1
BRACKET,MIRROR 11050A 11050-1640 1
WINDSHIELD 39154 39154-5010 1
PAD,UPP COWLING,LH 39156 39156-1622 1
PAD,UPP COWLING,RH 39156A 39156-1623 1
COVER-HEAD LAMP 55022 55022-1082 1
COWLING,UPP,P.P.BLACK MICA 55028 55028-1365-20 1
COWLING-ASSY.,UPP,L.GREEN 55050 55050-5253-7F 1
MIRROR-ASSY,LH 56001 56001-1483 1
MIRROR-ASSY,RH 56001A 56001-1484 1
SCREW,5X16 92009 92009-1654 8
NUT,CAP,6MM,BLACK 92015 92015-1170 4
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,WELL,5MM 92015B 92015-1757 8
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 8
DAMPER,MIRROR 92160 92160-1089 4
WASHER,12.5X22X1.2 92200 92200-1174 2
COWLING-ASSY.,UPP,F.RED 55050B 55050-5260-B1 1
