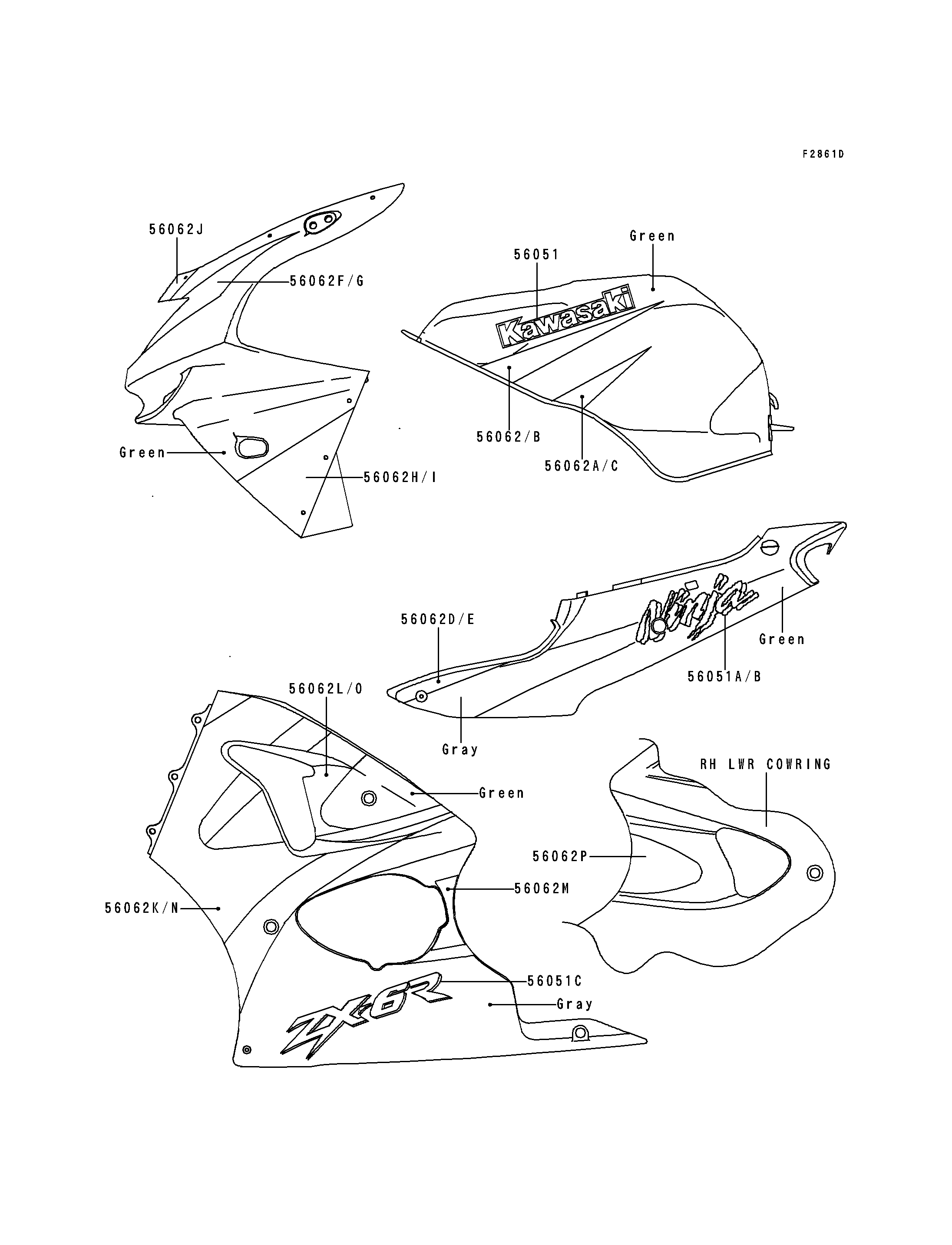

1999 Ninja® ZX™-6R - Decals(Green/Gray)

DOWNLOAD PDF
SELECT A NEW PART
56051
56051A
56051B
56051C
56062
56062A
56062B
56062C
56062D
56062E
56062F
56062G
56062H
56062I
56062J
56062K
56062L
56062L
56062M
56062N
56062O
56062O
56062P
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,KAWASAKI 56051 56051-1750 2
MARK,SIDE COVER,LH,NINJA 56051A 56051-1966 1
MARK,SIDE COVER,RH,NINJA 56051B 56051-1967 1
MARK,LWR COWLING,ZX-6R 56051C 56051-1968 2
PATTERN,FUEL TANK,UPP,LH 56062 56062-1797 1
PATTERN,FUEL TANK,LWR,LH 56062A 56062-1798 1
PATTERN,FUEL TANK,UPP,RH 56062B 56062-1799 1
PATTERN,FUEL TANK,LWR,RH 56062C 56062-1800 1
PATTERN,SIDE COVER,LH 56062D 56062-1801 1
PATTERN,SIDE COVER,RH 56062E 56062-1802 1
PATTERN,UPP COWLING,LH 56062F 56062-1803 1
PATTERN,UPP COWLING,RH 56062G 56062-1804 1
PATTERN,UPP COWLING,SIDE,LH 56062H 56062-1805 1
PATTERN,UPP COWLING,SIDE,RH 56062I 56062-1806 1
PATTERN,UPP COWLING,FR 56062J 56062-1807 1
PATTERN,LWR COWLING,FR,LH 56062K 56062-1808 1
PATTERN,LWR COWLING,RR,LH 56062L 56062-1809 1
PATTERN,LWR COWLING,LWR,LH 56062M 56062-1810 1
PATTERN,LWR COWLING,FR,RH 56062N 56062-1811 1
PATTERN,LWR COWLING,RR,RH 56062O 56062-1812 1
PATTERN,LWR COWLING,LWR,RH 56062P 56062-1813 1
