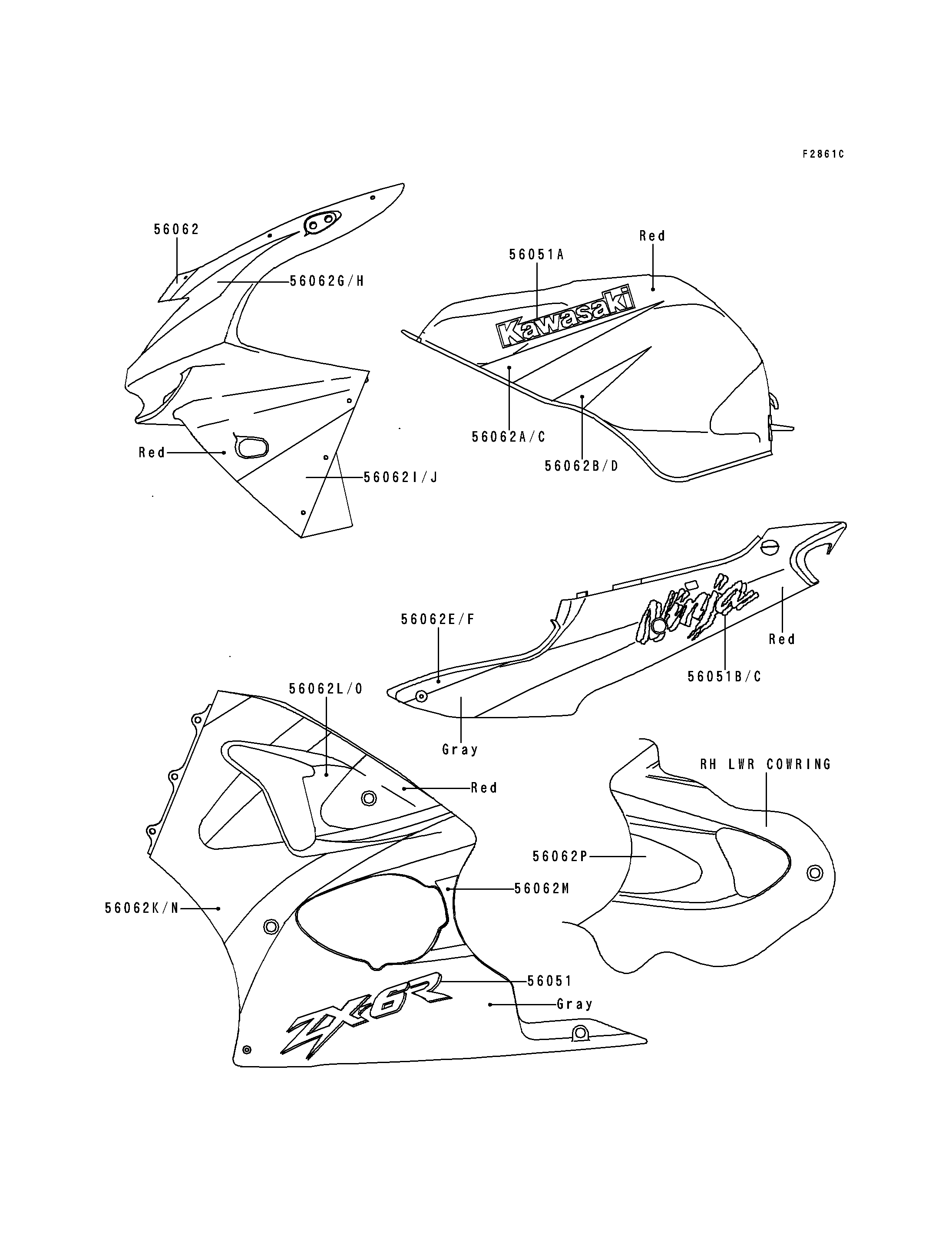

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,LWR COWLING,ZX-6R | 56051 | 56051-1968 | 2 | ||
| MARK,FUEL TANK,KAWASAKI | 56051A | 56051-1970 | 2 | ||
| MARK,SIDE COVER,LH,NINJA | 56051B | 56051-1971 | 1 | ||
| MARK,SIDE COVER,RH,NINJA | 56051C | 56051-1972 | 1 | ||
| PATTERN,UPP COWLING,FR | 56062 | 56062-1807 | 1 | ||
| PATTERN,FUEL TANK,UPP,LH | 56062A | 56062-1814 | 1 | ||
| PATTERN,FUEL TANK,LWR,LH | 56062B | 56062-1815 | 1 | ||
| PATTERN,FUEL TANK,UPP,RH | 56062C | 56062-1816 | 1 | ||
| PATTERN,FUEL TANK,LWR,RH | 56062D | 56062-1817 | 1 | ||
| PATTERN,SIDE COVER,LH | 56062E | 56062-1818 | 1 | ||
| PATTERN,SIDE COVER,RH | 56062F | 56062-1819 | 1 | ||
| PATTERN,UPP COWLING,LH | 56062G | 56062-1820 | 1 | ||
| PATTERN,UPP COWLING,RH | 56062H | 56062-1821 | 1 | ||
| PATTERN,UPP COWLING,SIDE,LH | 56062I | 56062-1822 | 1 | ||
| PATTERN,UPP COWLING,SIDE,RH | 56062J | 56062-1823 | 1 | ||
| PATTERN,LWR COWLING,FR,LH | 56062K | 56062-1824 | 1 | ||
| PATTERN,LWR COWLING,RR,LH | 56062L | 56062-1825 | 1 | ||
| PATTERN,LWR COWLING,LWR,LH | 56062M | 56062-1826 | 1 | ||
| PATTERN,LWR COWLING,FR,RH | 56062N | 56062-1827 | 1 | ||
| PATTERN,LWR COWLING,RR,RH | 56062O | 56062-1828 | 1 | ||
| PATTERN,LWR COWLING,LWR,RH | 56062P | 56062-1829 | 1 |
| MARK,LWR COWLING,ZX-6R | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,LH,NINJA | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,RH,NINJA | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,FR | |
| REF # | 56062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,UPP,LH | |
| REF # | 56062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LWR,LH | |
| REF # | 56062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,UPP,RH | |
| REF # | 56062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LWR,RH | |
| REF # | 56062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56062F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56062G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56062H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,SIDE,LH | |
| REF # | 56062I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,SIDE,RH | |
| REF # | 56062J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,FR,LH | |
| REF # | 56062K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RR,LH | |
| REF # | 56062L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,LH | |
| REF # | 56062M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,FR,RH | |
| REF # | 56062N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RR,RH | |
| REF # | 56062O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,RH | |
| REF # | 56062P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
