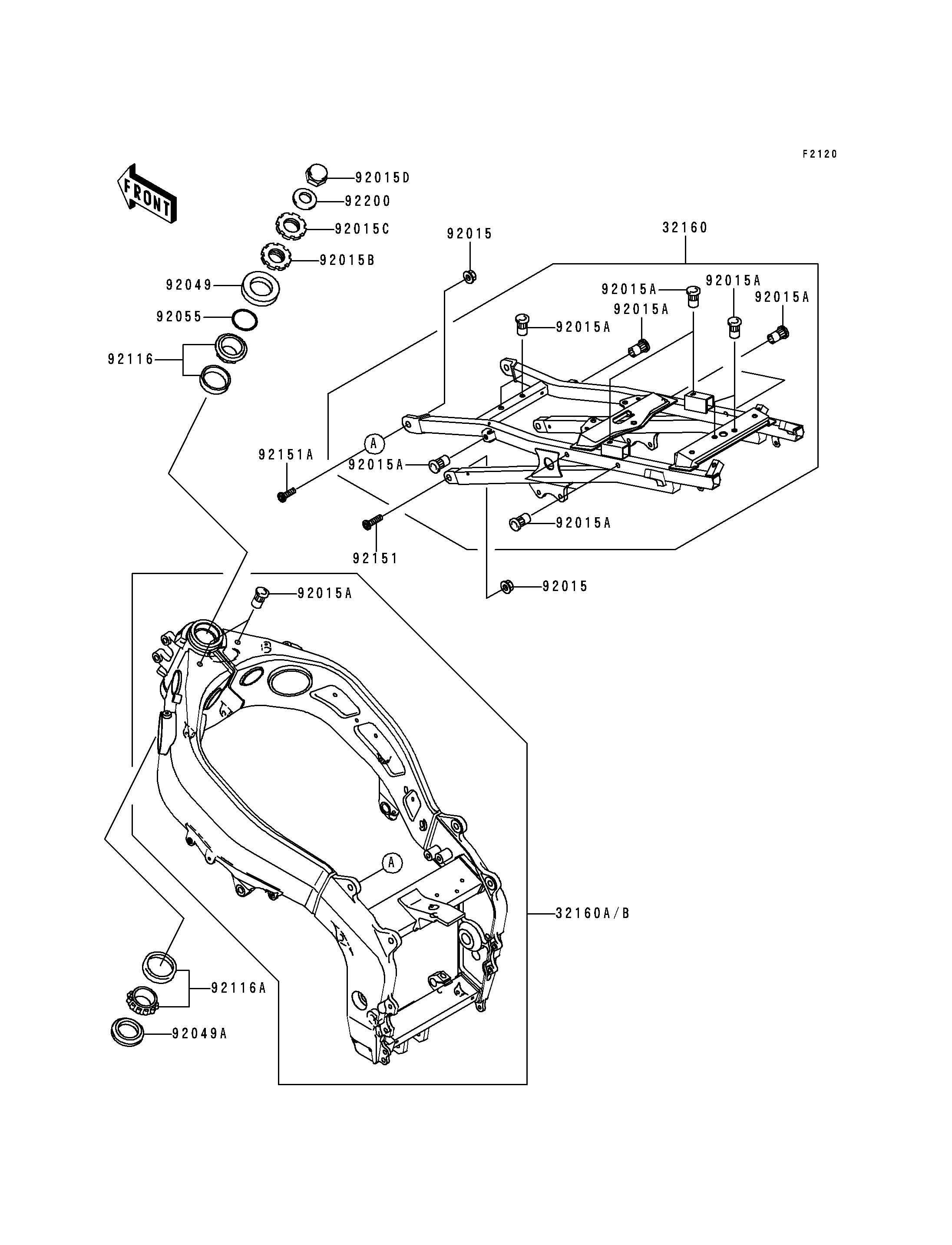

Parts Diagrams |
32160
32160B
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015B
92015C
92015D
92049
92049A
92055
92116
92116A
92151
92151A
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,AL,RR,SILVER | 32160 | 32160-1520-TX | 1 | ||
| FRAME-COMP,AL,FR,SILVER | 32160B | 32160-1582-TX | 1 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1415 | 4 | ||
| NUT,POP,6MM,L=15 | 92015A | 92015-1791 | 14 | ||
| NUT,25MM | 92015B | 92015-1803 | 1 | ||
| NUT,25MM | 92015C | 92015-1810 | 1 | ||
| NUT,CAP,22MM | 92015D | 92015-1873 | 1 | ||
| SEAL-OIL,XMH33 70 6.4J-A | 92049 | 92049-1313 | 1 | ||
| SEAL-OIL,XMHE 43 55 4J | 92049A | 92049-1383 | 1 | ||
| RING-O,ID=24.5 | 92055 | 92055-1459 | 1 | ||
| BEARING-ROLLER,HI-CAP32005JR-1 | 92116 | 92116-1056 | 1 | ||
| BEARING-ROLLER,32907JR-2 | 92116A | 92116-1072 | 1 | ||
| BOLT,SOCKET,10X35 | 92151 | 92151-1371 | 2 | ||
| BOLT,SOCKET,10X30 | 92151A | 92151-1372 | 2 | ||
| WASHER,22.5X36X3.2 | 92200 | 92200-1126 | 1 |
| FRAME-COMP,AL,RR,SILVER | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,AL,FR,SILVER | |
| REF # | 32160B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,22MM | |
| REF # | 92015D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMH33 70 6.4J-A | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE 43 55 4J | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ID=24.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HI-CAP32005JR-1 | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,32907JR-2 | |
| REF # | 92116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X35 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X30 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,22.5X36X3.2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
