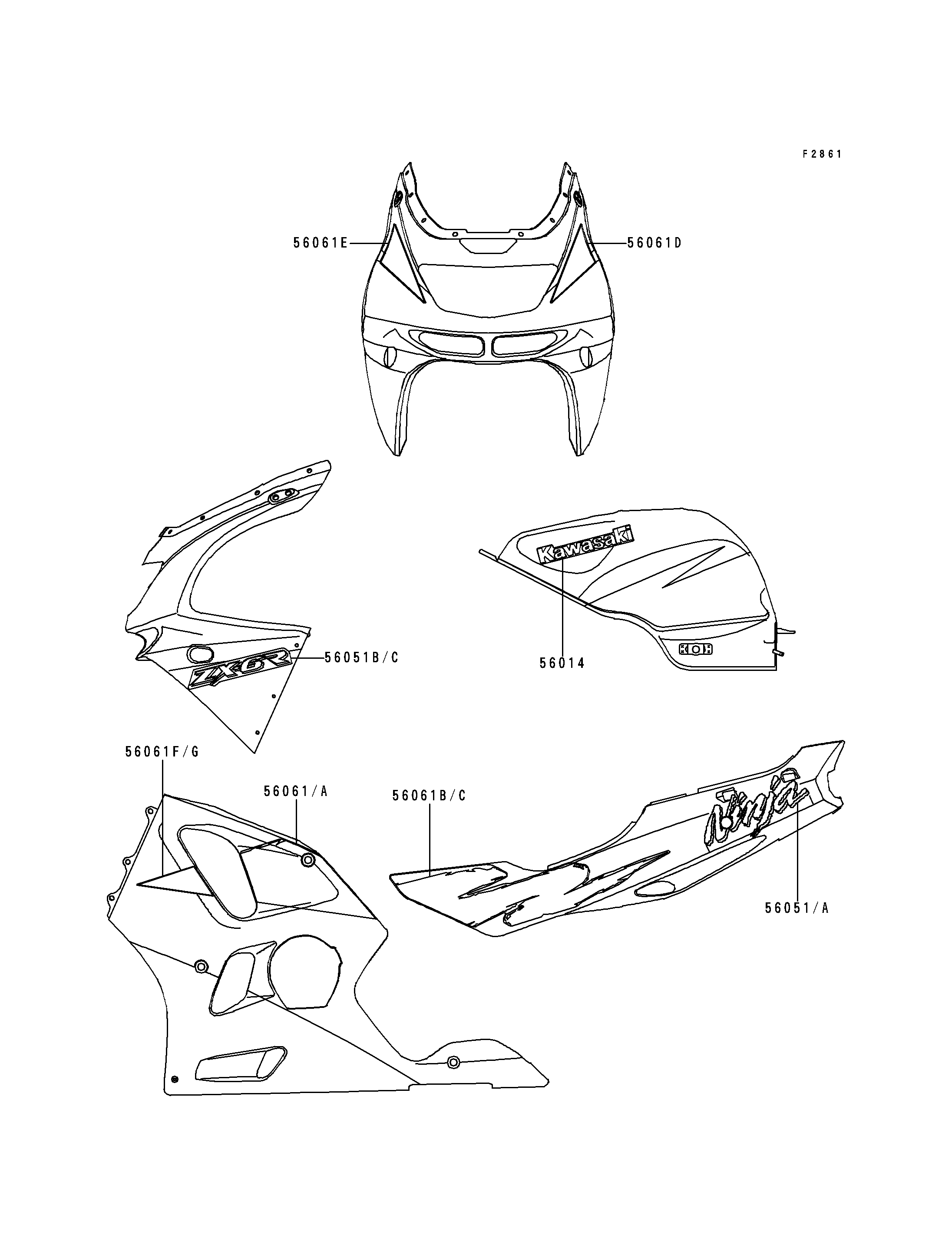

1995 Ninja® ZX™-6R - Decals(Green/White)(ZX600-F1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1316 | 2 | ||
| MARK,SIDE COVER,LH,NINJA | 56051 | 56051-1250 | 1 | ||
| MARK,SIDE COVER,RH,NINJA | 56051A | 56051-1251 | 1 | ||
| MARK,UPP COWLING,LH,ZX-6R | 56051B | 56051-1252 | 1 | ||
| MARK,UPP COWLING,RH,ZX-6R | 56051C | 56051-1253 | 1 | ||
| PATTERN,LWR COWLING,RR,LH | 56061 | 56061-1335 | 1 | ||
| PATTERN,LWR COWLING,RR,RH | 56061A | 56061-1337 | 1 | ||
| PATTERN,SIDE COVER,LH | 56061B | 56061-1338 | 1 | ||
| PATTERN,SIDE COVER,RH | 56061C | 56061-1339 | 1 | ||
| PATTERN,UPP COWLING,LH | 56061D | 56061-1340 | 1 | ||
| PATTERN,UPP COWLING,RH | 56061E | 56061-1341 | 1 | ||
| PATTERN,LWR COWLING,FR,LH | 56061F | 56061-1342 | 1 | ||
| PATTERN,LWR COWLING,FR,RH | 56061G | 56061-1343 | 1 |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,LH,NINJA | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,RH,NINJA | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,LH,ZX-6R | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,RH,ZX-6R | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RR,LH | |
| REF # | 56061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RR,RH | |
| REF # | 56061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56061C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56061D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56061E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,FR,LH | |
| REF # | 56061F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,FR,RH | |
| REF # | 56061G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
