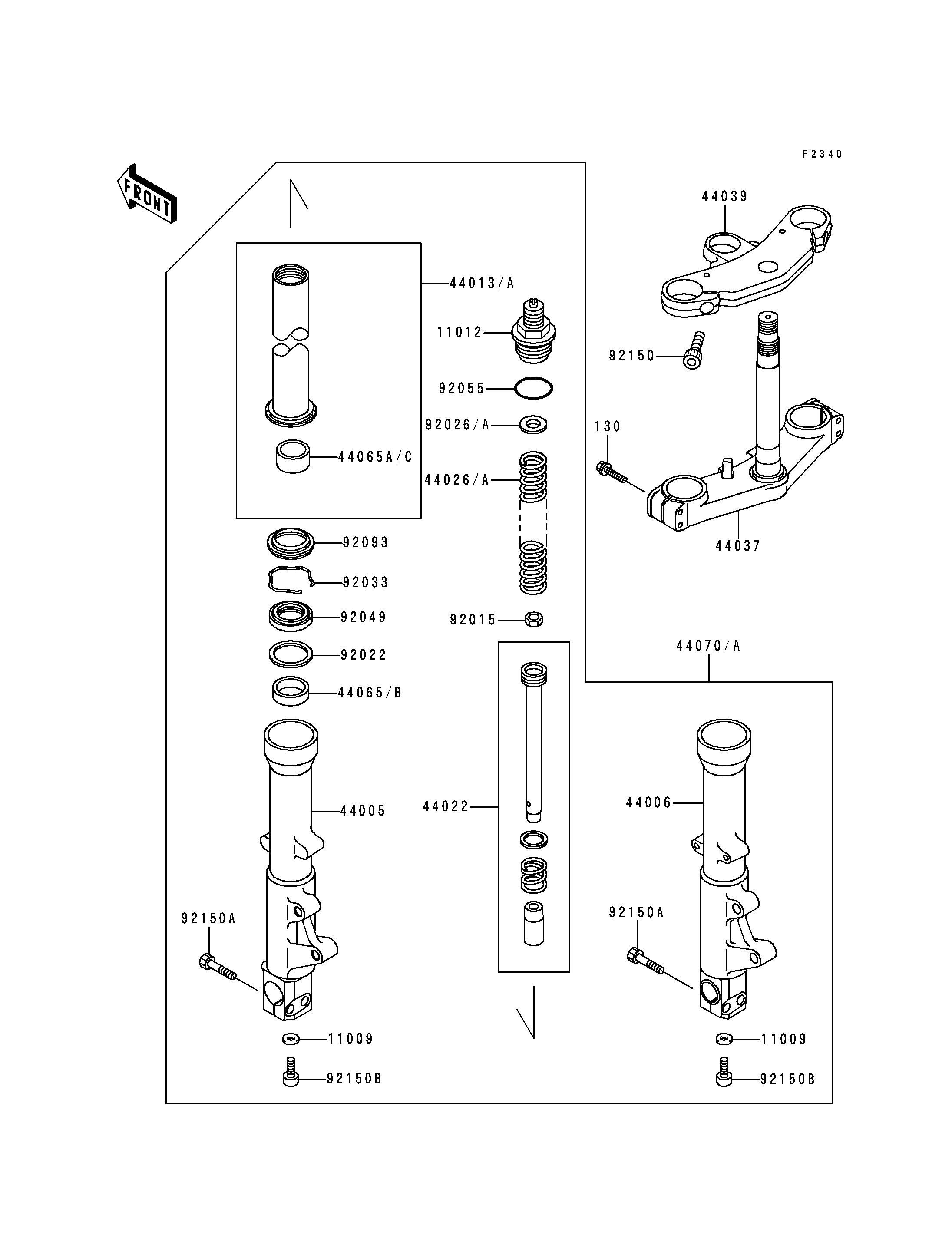

1997 Ninja® ZX™-6R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
130
11009
11009
11012
44005
44006
44013A
44022
44026A
44037
44039
44065B
44065C
44070A
92015
92022
92026A
92033
92049
92055
92093
92150
92150A
92150A
92150B
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130V0845 4
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
CAP,FORK 11012 11012-1937 2
PIPE-LEFT FORK OUTER,G.GRAY 44005 44005-1353-GD 1
PIPE-RIGHT FORK OUTER,G.GRAY 44006 44006-1351-GD 1
PIPE-FORK INNER 44013A 44013-1419 2
CYLINDER-FORK 44022 44022-1307 2
SPRING-FRONT FORK 44026A 44026-1604 2
HOLDER-FORK UNDER 44037 44037-1330 1
HOLDER-FORK UPPER 44039 44039-1257 1
BUSHING-FRONT FORK,OUTER TUBE 44065B 44065-1115 2
BUSHING-FRONT FORK,INNER PIPE 44065C 44065-1116 2
DAMPER-ASSY,FORK,G.GRAY 44070A 44070-1474-GD 1
NUT 92015 92015-1795 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
SPACER,FORK 92026A 92026-1475 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1356 2
RING-O 92055 92055-1321 2
SEAL,FORK OUTER TUBE 92093 92093-1359 2
BOLT,SOCKET,8X25 92150 92150-1172 2
BOLT,SOCKET,8X40 92150A 92150-1194 4
BOLT,12X22 92150B 92150-1398 2
