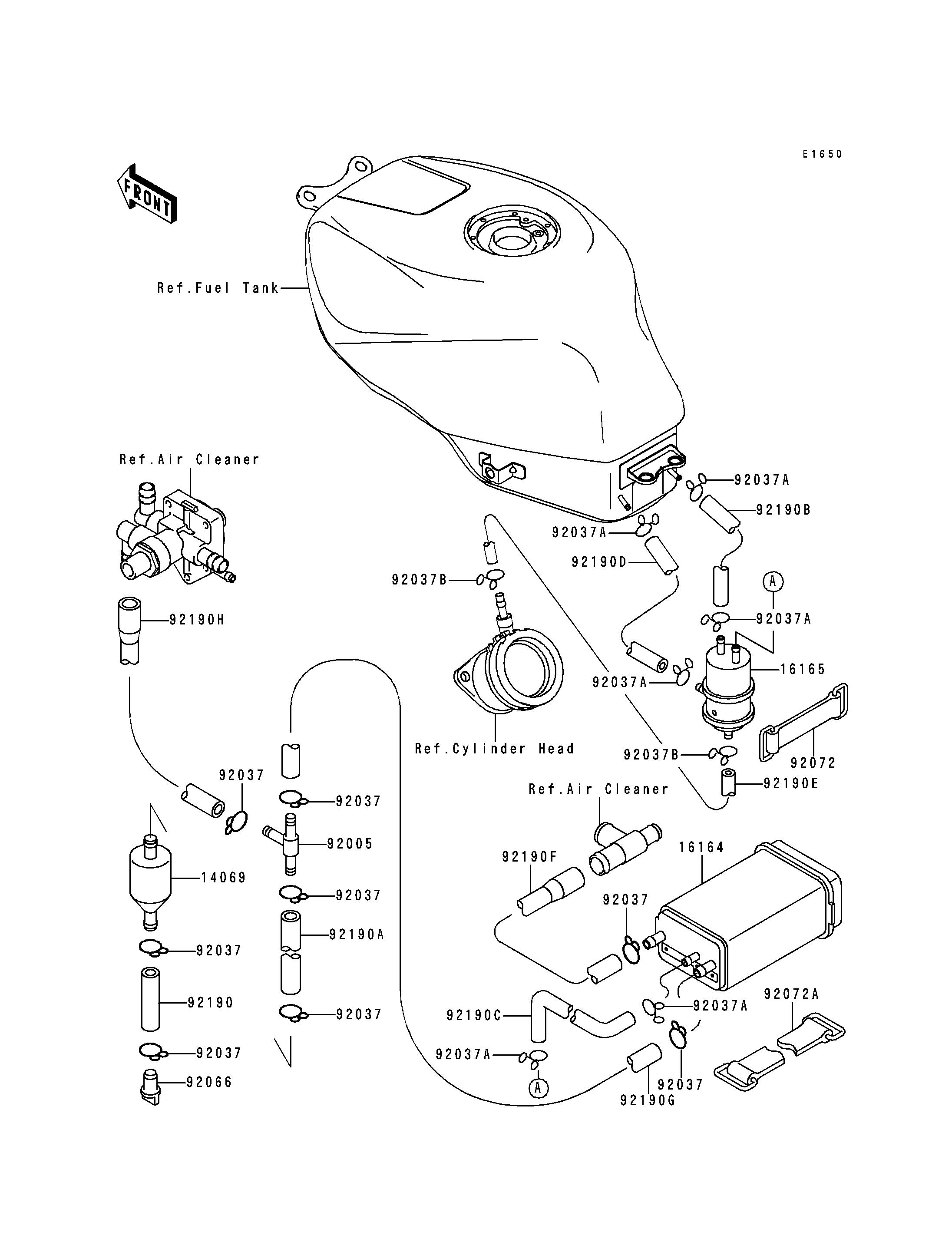

1997 Ninja® ZX™-6R - Fuel Evaporative System
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BREATHER | 14069 | 14069-1051 | 1 | ||
| CANISTER | 16164 | 16164-1052 | 1 | ||
| SEPARATOR | 16165 | 16165-1001 | 1 | ||
| FITTING,T-TYPE | 92005 | 92005-1119 | 1 | ||
| CLAMP,HOSE | 92037 | 92037-1104 | 8 | ||
| CLAMP,TUBE | 92037A | 92037-147 | 6 | ||
| CLAMP | 92037B | 92037-1712 | 2 | ||
| PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
| BAND,L=50 | 92072 | 92072-066 | 1 | ||
| BAND,CANISTER | 92072A | 92072-1324 | 1 | ||
| TUBE,7X12X45 | 92190 | 92190-1200 | 1 | ||
| TUBE,8X13X370 | 92190A | 92190-1325 | 1 | ||
| TUBE,TANK-SEPARATOR,BLUE | 92190B | 92190-1590 | 1 | ||
| TUBE,SEPARATOR-CAN,BLUE | 92190C | 92190-1591 | 1 | ||
| TUBE,TANK-SEPARATOR,RED | 92190D | 92190-1592 | 1 | ||
| TUBE,SEPARATOR-CAB,WHITE | 92190E | 92190-1593 | 1 | ||
| TUBE,CANISTER-FILTER,GREEN | 92190F | 92190-1594 | 1 | ||
| TUBE,FITING-CANIST,YELLOW | 92190G | 92190-1595 | 1 | ||
| TUBE,FITING-VALVE,YELLOW | 92190H | 92190-1596 | 1 |
| BREATHER | |
| REF # | 14069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,T-TYPE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,CANISTER | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,7X12X45 | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,8X13X370 | |
| REF # | 92190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,TANK-SEPARATOR,BLUE | |
| REF # | 92190B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,SEPARATOR-CAN,BLUE | |
| REF # | 92190C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,TANK-SEPARATOR,RED | |
| REF # | 92190D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,SEPARATOR-CAB,WHITE | |
| REF # | 92190E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CANISTER-FILTER,GREEN | |
| REF # | 92190F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FITING-CANIST,YELLOW | |
| REF # | 92190G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FITING-VALVE,YELLOW | |
| REF # | 92190H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
