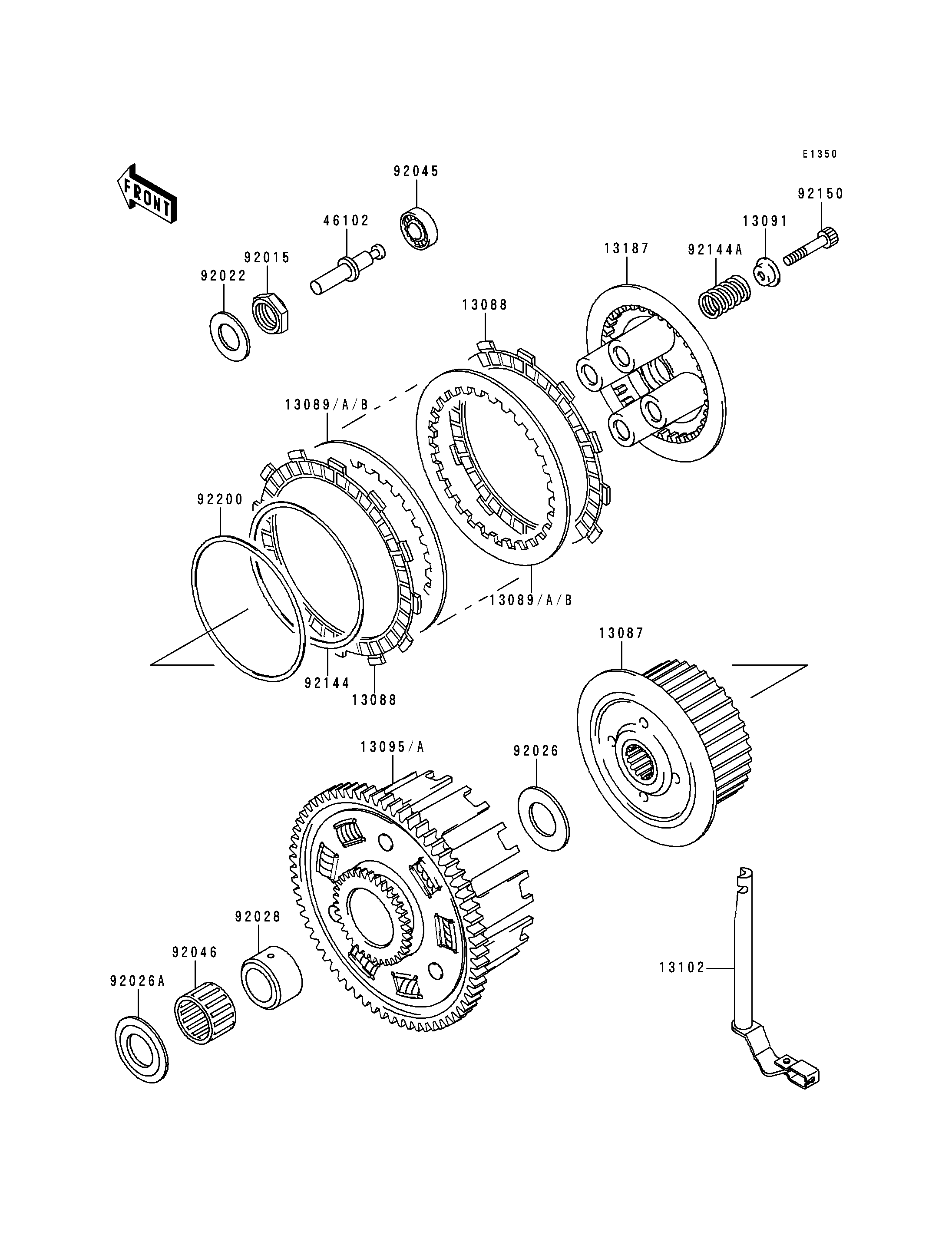

Parts Diagrams |
13087
13088
13088
13089
13089
13089A
13089A
13089B
13089B
13091
13095A
13102
13187
46102
92015
92022
92026
92026A
92028
92045
92046
92144
92144A
92150
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HUB-CLUTCH | 13087 | 13087-1159 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1124 | 9 | ||
| PLATE-CLUTCH,T=2.0 | 13089 | 13089-1073 | AR | ||
| PLATE-CLUTCH,T=2.3 | 13089A | 13089-1084 | 8 | ||
| PLATE-CLUTCH,T=2.6 | 13089B | 13089-1115 | AR | ||
| HOLDER,CLUTCH SPRING | 13091 | 13091-1041 | 4 | ||
| HOUSING-COMP-CLUTCH | 13095A | 13095-1335 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-1125 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1079 | 1 | ||
| ROD,CLUTCH | 46102 | 46102-1371 | 1 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER | 92022 | 92022-1868 | 1 | ||
| SPACER,25.5X47X2.5 | 92026 | 92026-022 | 1 | ||
| SPACER | 92026A | 92026-1356 | 1 | ||
| BUSHING | 92028 | 92028-1741 | 1 | ||
| BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
| BEARING-NEEDLE | 92046 | 92046-1231 | 1 | ||
| SPRING,FRICTION PLATE | 92144 | 92144-1854 | 1 | ||
| SPRING,CLUTCH OPERATING | 92144A | 92144-1881 | 4 | ||
| BOLT,CLUTCH OPERATING | 92150 | 92150-1855 | 4 | ||
| WASHER,FRICTION PLATE | 92200 | 92200-1260 | 1 |
