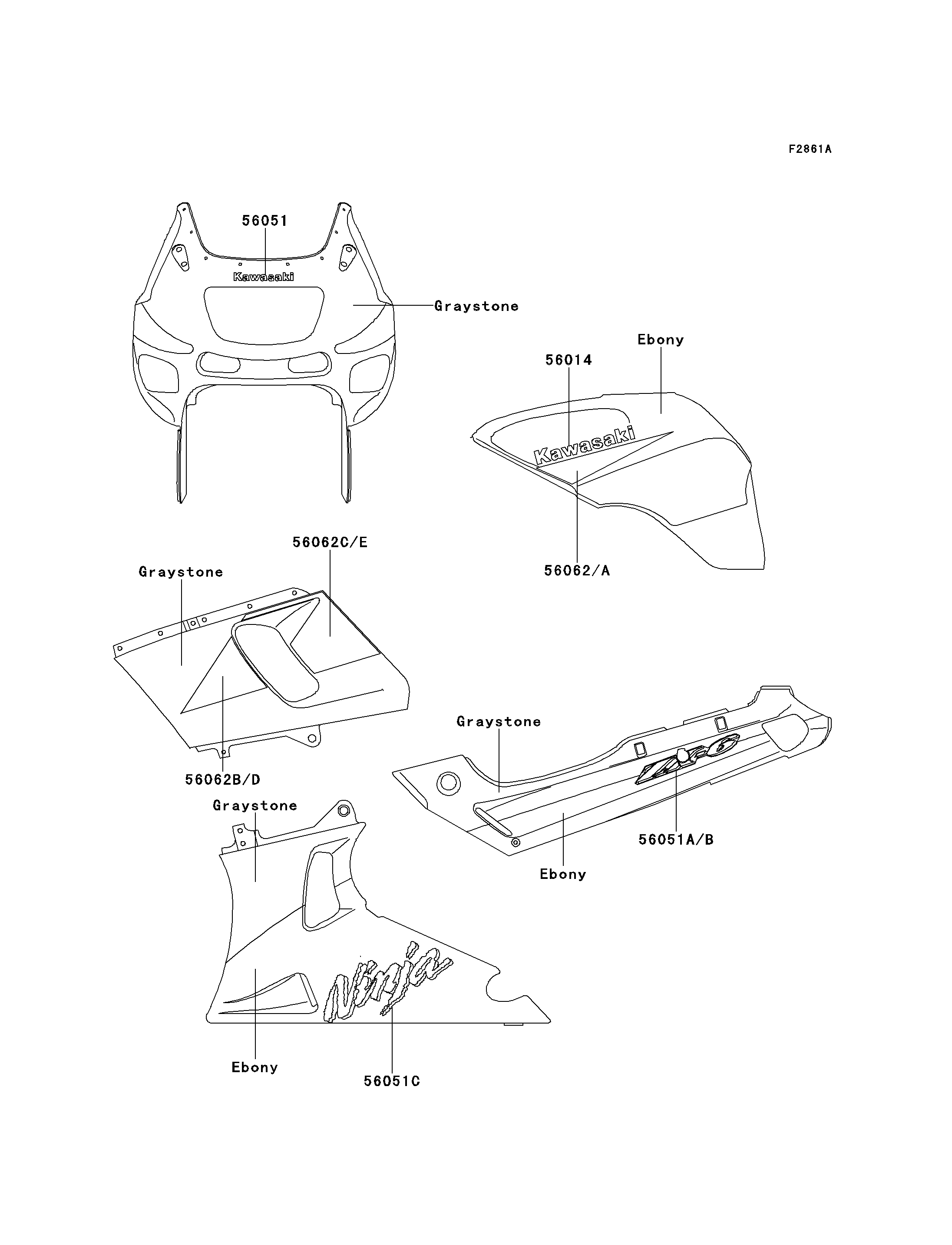

1999 Ninja® ZX™-6 - Decals(Ebony/Graystone)(ZX600-E7)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1375 | 2 | CN | |
| MARK,UPP COWLING,KAWASAKI | 56051 | 56051-1895 | 1 | CN | |
| MARK,SIDE COVER,LH,ZX-6 | 56051A | 56051-1987 | 1 | CN | |
| MARK,SIDE COVER,RH,ZX-6 | 56051B | 56051-1988 | 1 | CN | |
| MARK,LWR COWLING,NINJA | 56051C | 56051-1989 | 2 | CN | |
| PATTERN,FUEL TANK,LH | 56062 | 56062-1757 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56062A | 56062-1758 | 1 | CN | |
| PATTERN,CNT COWLING,FR,LH | 56062B | 56062-1759 | 1 | CN | |
| PATTERN,CNT COWLING,RR,LH | 56062C | 56062-1760 | 1 | CN | |
| PATTERN,CNT COWLING,FR,RH | 56062D | 56062-1761 | 1 | CN | |
| PATTERN,CNT COWLING,RR,RH | 56062E | 56062-1762 | 1 | CN |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,UPP COWLING,KAWASAKI | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,LH,ZX-6 | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,RH,ZX-6 | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,NINJA | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,FR,LH | |
| REF # | 56062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,RR,LH | |
| REF # | 56062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,FR,RH | |
| REF # | 56062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,RR,RH | |
| REF # | 56062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
