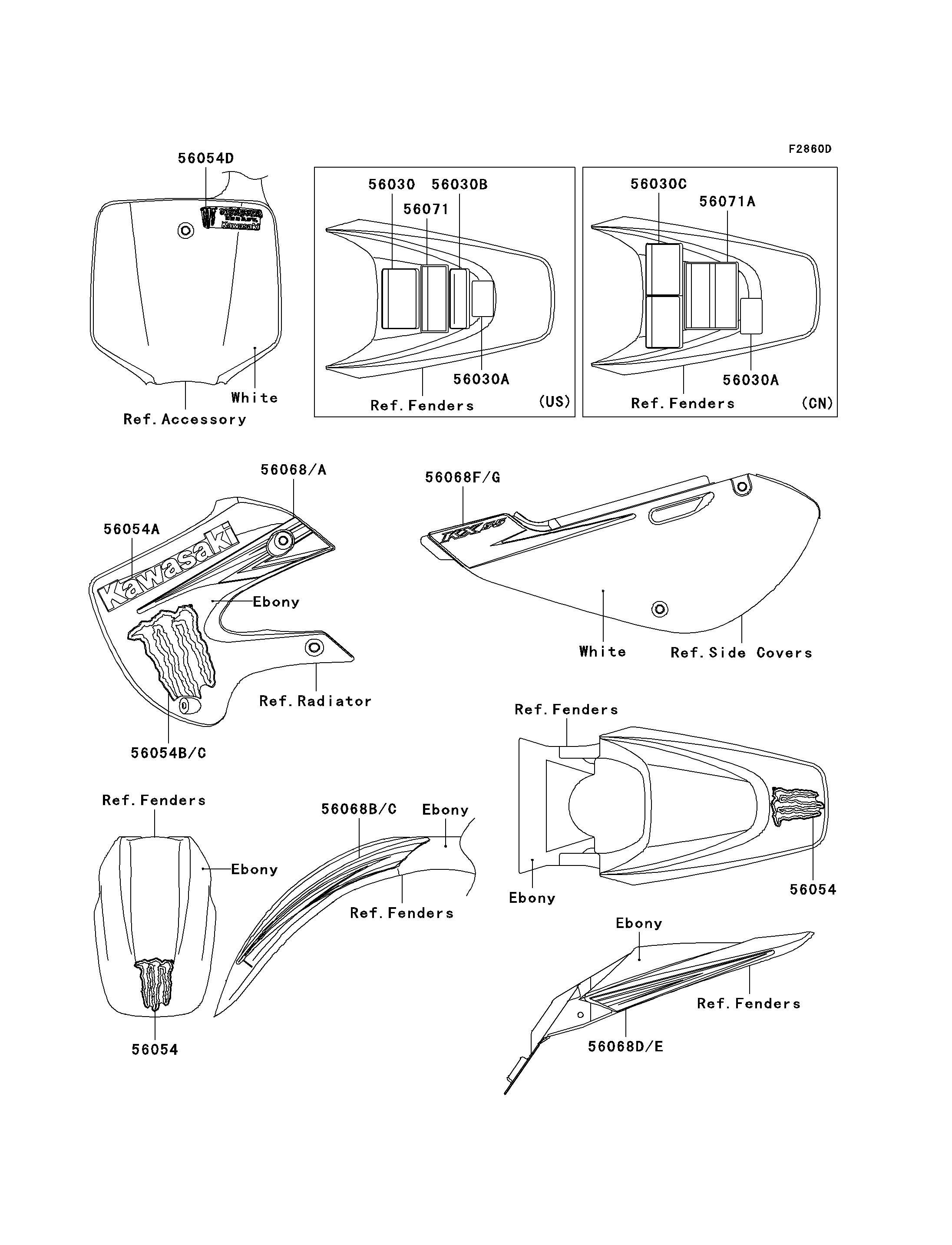

Parts Diagrams |
56030A
56030A
56054
56054
56054A
56054B
56054C
56054D
56068
56068A
56068B
56068C
56068D
56068E
56068F
56068G
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,32:1 | 56030A | 56030-1230 | 1 | ||
| MARK,FENDER | 56054 | 56054-0367 | 2 | ||
| MARK,SHROUD,KAWASAKI | 56054A | 56054-0375 | 2 | ||
| MARK,SHROUD,FR,LH | 56054B | 56054-0381 | 1 | ||
| MARK,SHROUD,FR,RH | 56054C | 56054-0382 | 1 | ||
| MARK,NUMBER PLATE | 56054D | 56054-0383 | 1 | ||
| PATTERN,SHROUD,RR,LH | 56068 | 56068-1650 | 1 | ||
| PATTERN,SHROUD,RR,RH | 56068A | 56068-1651 | 1 | ||
| PATTERN,FR FENDER,LH | 56068B | 56068-1652 | 1 | ||
| PATTERN,FR FENDER,RH | 56068C | 56068-1653 | 1 | ||
| PATTERN,RR FENDER,LH | 56068D | 56068-1654 | 1 | ||
| PATTERN,RR FENDER,RH | 56068E | 56068-1655 | 1 | ||
| PATTERN,SIDE COVER,LH | 56068F | 56068-1656 | 1 | ||
| PATTERN,SIDE COVER,RH | 56068G | 56068-1657 | 1 | ||
| LABEL,DISCLAIMER | 56030 | 56030-1229 | 1 | US | |
| LABEL,NOISE EMISSION | 56030B | 56030-1231 | 1 | US | |
| LABEL,DISCLAIMER | 56030C | 56030-1233 | 1 | CN | |
| LABEL-WARNING,IMPORTANT NOTICE | 56071 | 56071-0028 | 1 | US | |
| LABEL-WARNING,IMPORTANT NOTICE | 56071A | 56071-0029 | 1 | CN |
| LABEL,32:1 | |
| REF # | 56030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FENDER | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SHROUD,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SHROUD,FR,LH | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SHROUD,FR,RH | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,NUMBER PLATE | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RR,LH | |
| REF # | 56068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RR,RH | |
| REF # | 56068A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56068B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56068C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56068D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56068E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56068F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56068G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,DISCLAIMER | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| LABEL,NOISE EMISSION | |
| REF # | 56030B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| LABEL,DISCLAIMER | |
| REF # | 56030C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,IMPORTANT NOTICE | |
| REF # | 56071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| LABEL-WARNING,IMPORTANT NOTICE | |
| REF # | 56071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
