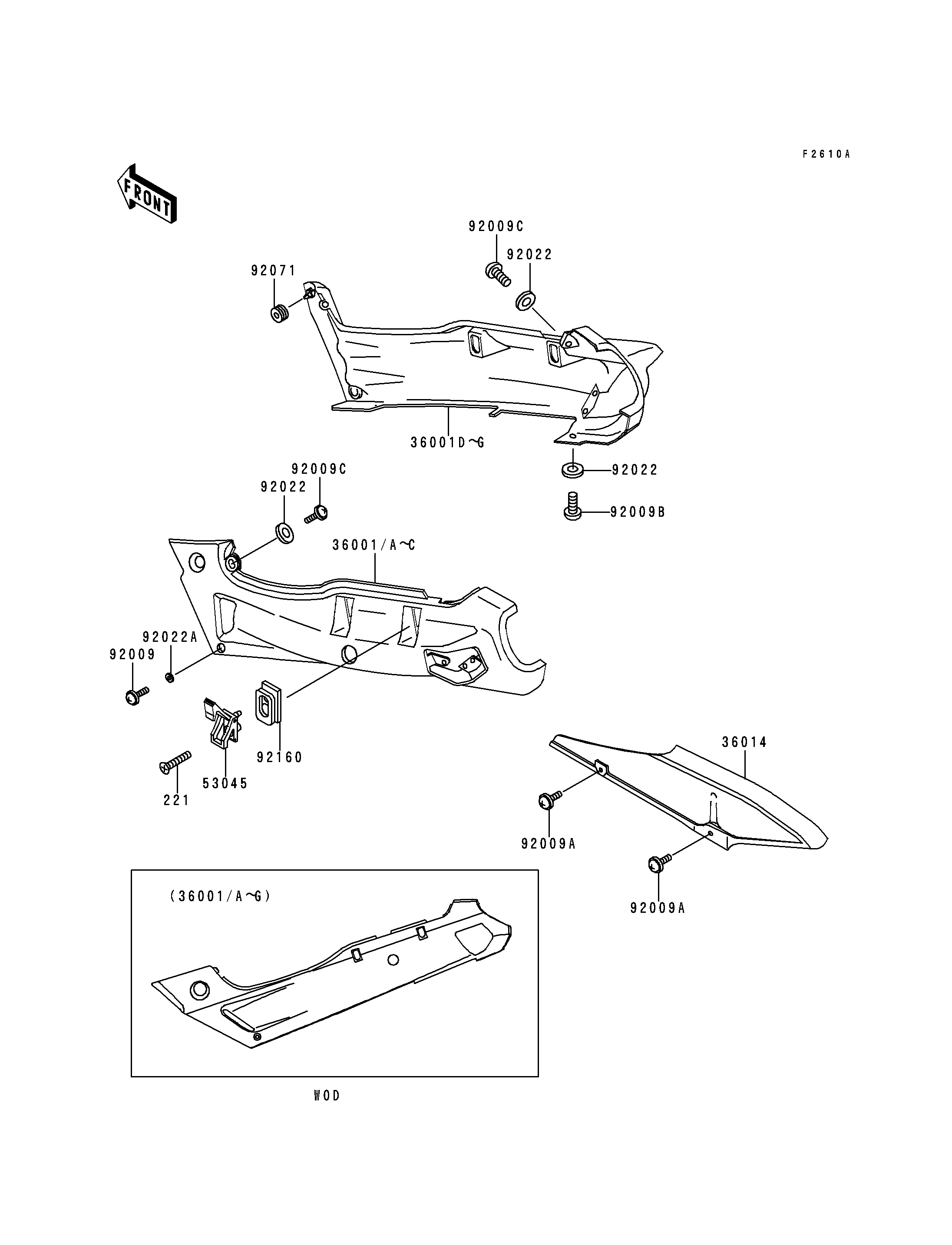

1997 Ninja® ZX™-6 - Side Covers/Chain Cover(ZX600-E5)

DOWNLOAD PDF
SELECT A NEW PART
36014
36014
221
221
53045
53045
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92022
92022
92022
92022
92022
92022
92022A
92022A
92071
92071
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-1187 1
SCREW-CSK-CROS,6X20 221 221E0620 4
HOOK-ASSY,TOOL BOX 53045 53045-1053 4
SCREW,6X20 92009 92009-1298 2
SCREW,6X10 92009A 92009-1402 2
SCREW,5X14 92009B 92009-1653 2
SCREW,5X20 92009C 92009-1656 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
WASHER,6.5X16X1.0 92022A 92022-1654 2
GROMMET 92071 92071-056 2
DAMPER,ROPE HOOK 92160 92160-1042 4
COVER-SIDE,LH,L.W.GREEN 36001 36001-1493-DS 1 CN
COVER-SIDE,LH,C.W.RED 36001A 36001-1493-H3 1 CN
COVER-SIDE,LH,C.W.RED 36001B 36001-1493-TF 1 CAUS
COVER-SIDE,LH,L.W.GREEN 36001C 36001-1493-24 1 CAUS
COVER-SIDE,RH,L.W.GREEN 36001D 36001-1494-DS 1 CN
COVER-SIDE,RH,C.W.RED 36001E 36001-1494-H3 1 CN
COVER-SIDE,RH,C.W.RED 36001F 36001-1494-TF 1 CAUS
COVER-SIDE,RH,L.W.GREEN 36001G 36001-1494-24 1 CAUS
