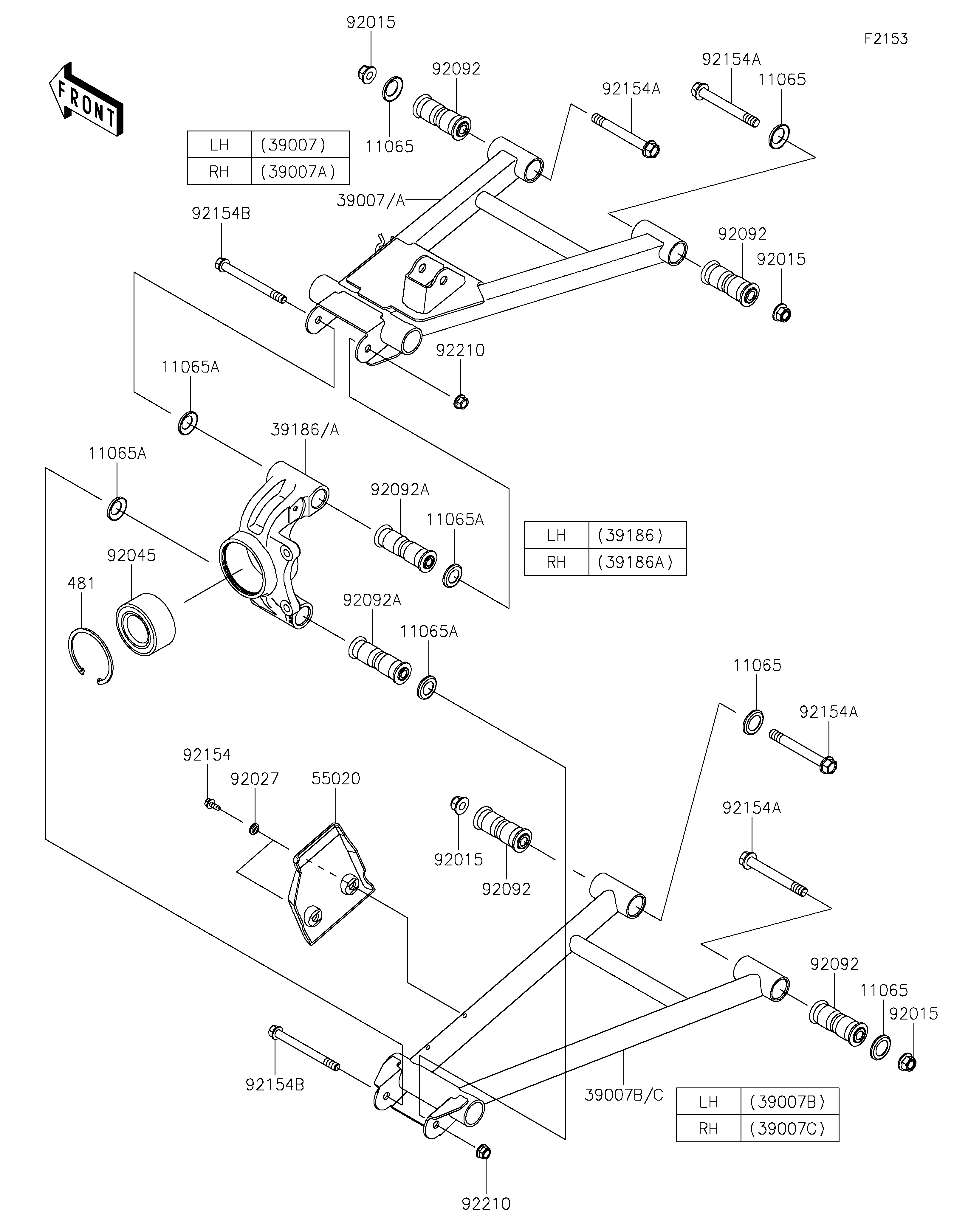

2025 MULE PRO-FX™ 820 EPS - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
11065A
11065A
11065A
11065A
39007
39007A
39007B
39007C
39186
39186A
55020
92015
92015
92015
92015
92027
92045
92092
92092
92092
92092
92092A
92092A
92154
92154A
92154A
92154A
92154A
92154B
92154B
92210
92210
481
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,ARM 11065 11065-0838 8
CAP 11065A 11065-0849 8
ARM-SUSP,RR,UPP,LH 39007 39007-0540 1
ARM-SUSP,RR,UPP,RH 39007A 39007-0541 1
ARM-SUSP,RR,LWR,LH 39007B 39007-0542 1
ARM-SUSP,RR,LWR,RH 39007C 39007-0543 1
KNUCKLE,RR,LH 39186 39186-0317 1
KNUCKLE,RR,RH 39186A 39186-0318 1
GUARD,RR CVJ 55020 55020-0931 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 8
COLLAR,L=4.6 92027 92027-1168 4
BEARING-BALL,40X74X36 92045 92045-0993 2
BUSHING-RUBBER,12X20X78 92092 92092-0028 8
BUSHING-RUBBER,10.1X17X88 92092A 92092-0029 4
BOLT,6X15.6 92154 92154-1250 4
BOLT,FLANGED,12X100 92154A 92154-1318 8
BOLT,FLANGED,10X110 92154B 92154-1353 4
NUT,LOCK,FLANGED,10MM 92210 92210-0276 4
CIRCLIP-TYPE-C 481 481J7500 2
