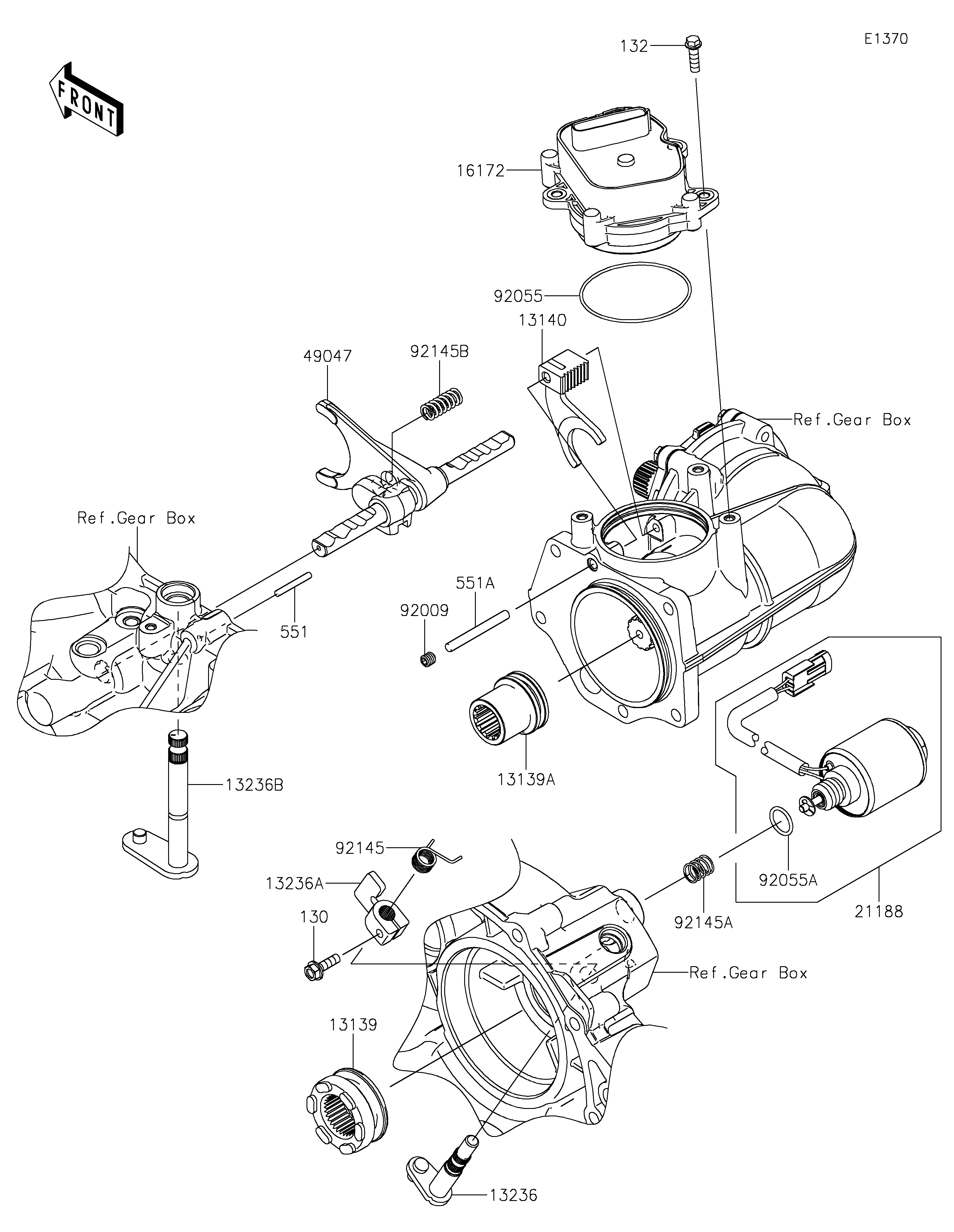

2025 MULE PRO-FX™ 820 EPS - Gear Change Mechanism
13139
13139A
13140
13236
13236A
13236B
16172
21188
49047
92009
92055
92055A
92145
92145A
92145B
130
132
551
551A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHIFTER | 13139 | 13139-0019 | 1 | ||
| SHIFTER | 13139A | 13139-0021 | 1 | ||
| FORK-SHIFT | 13140 | 13140-0667 | 1 | ||
| LEVER-COMP,DIFF LOCK | 13236 | 13236-0744 | 1 | ||
| LEVER-COMP,DIFF LOCK | 13236A | 13236-0745 | 1 | ||
| LEVER-COMP,CHANGE SHIFT | 13236B | 13236-0746 | 1 | ||
| ACTUATOR | 16172 | 16172-0030 | 1 | ||
| SOLENOID | 21188 | 21188-0010 | 1 | ||
| ROD-SHIFT | 49047 | 49047-0044 | 1 | ||
| SCREW,SOCKET,8X8 | 92009 | 92009-1977 | 1 | ||
| RING-O,1.9X71.8 | 92055 | 92055-0781 | 1 | ||
| RING-O | 92055A | 92055-0829 | 1 | ||
| SPRING | 92145 | 92145-1572 | 1 | ||
| SPRING | 92145A | 92145-1573 | 1 | ||
| SPRING | 92145B | 92145-1574 | 1 | ||
| BOLT-FLANGED,6X20 | 130 | 130BA0620 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132 | 132BA0620 | 3 | ||
| PIN-DOWEL | 551 | 551A0432 | 1 | ||
| PIN-DOWEL,6X56 | 551A | 551A0656 | 1 |
