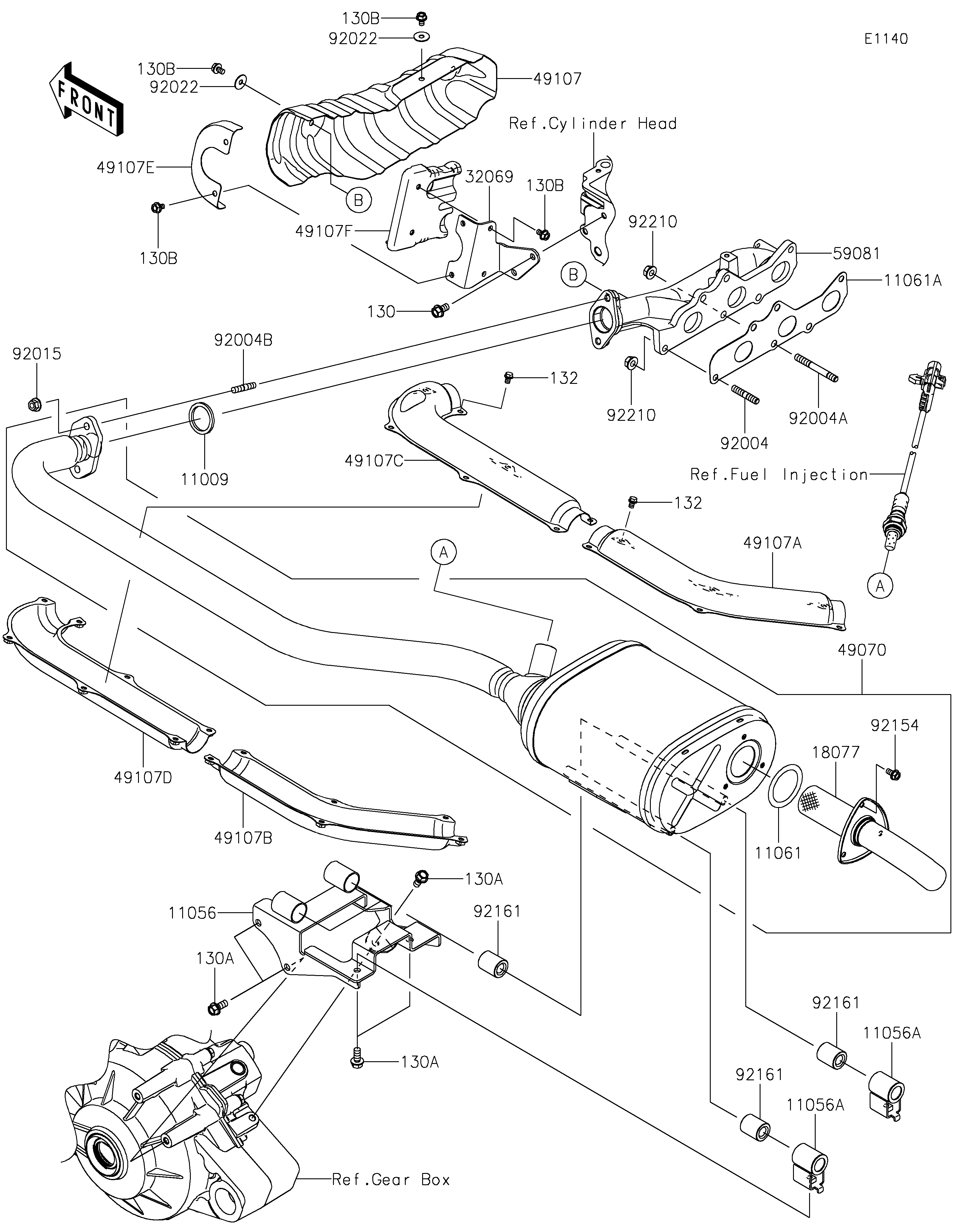

2025 MULE PRO-FX™ 820 EPS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11056
11056A
11056A
11061
11061A
18077
32069
49070
49107
49107A
49107B
49107C
49107D
49107E
49107F
59081
92004
92004A
92004B
92015
92022
92022
92154
92161
92161
92161
92210
92210
130
130A
130A
130A
130B
130B
130B
130B
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST HOLDER 11009 11009-1894 1
BRACKET,MUFFLER MOUNT 11056 11056-4394 1
BRACKET 11056A 11056-4440 2
GASKET,EXHAUST PIPE 11061 11061-0013 1
GASKET 11061A 11061-1186 1
ARRESTER-SPARK 18077 18077-0044 1
BRACKET-MUFFLER 32069 32069-0894 1
MUFFLER-COMP 49070 49070-0852 1
COVER-EXHAUST PIPE 49107 49107-0767 1
COVER-EXHAUST PIPE,RR,UPP 49107A 49107-0771 1
COVER-EXHAUST PIPE,RR,LWR 49107B 49107-0772 1
COVER-EXHAUST PIPE,FR,UPP 49107C 49107-0773 1
COVER-EXHAUST PIPE,FR,LWR 49107D 49107-0774 1
COVER-EXHAUST PIPE 49107E 49107-0838 1
COVER-EXHAUST PIPE 49107F 49107-0839 1
MANIFOLD-EXHAUST 59081 59081-0235 1
STUD 92004 92004-0735 5
STUD 92004A 92004-0736 1
STUD,8X25 92004B 92004-1214 2
NUT,8MM 92015 92015-1402 2
WASHER,PLAIN,6.5X20X1 92022 92022-165 3
BOLT,FLANGED,6X12 92154 92154-0852 3
DAMPER 92161 92161-0961 4
NUT 92210 92210-0944 6
BOLT-FLANGED,8X14 130 130BA0814 2
BOLT-FLANGED,8X18 130A 130BA0818 5
BOLT-FLANGED,6X10 130B 130BD0610 7
BOLT-FLANGED-SMALL,6X8 132 132BD0608 13
