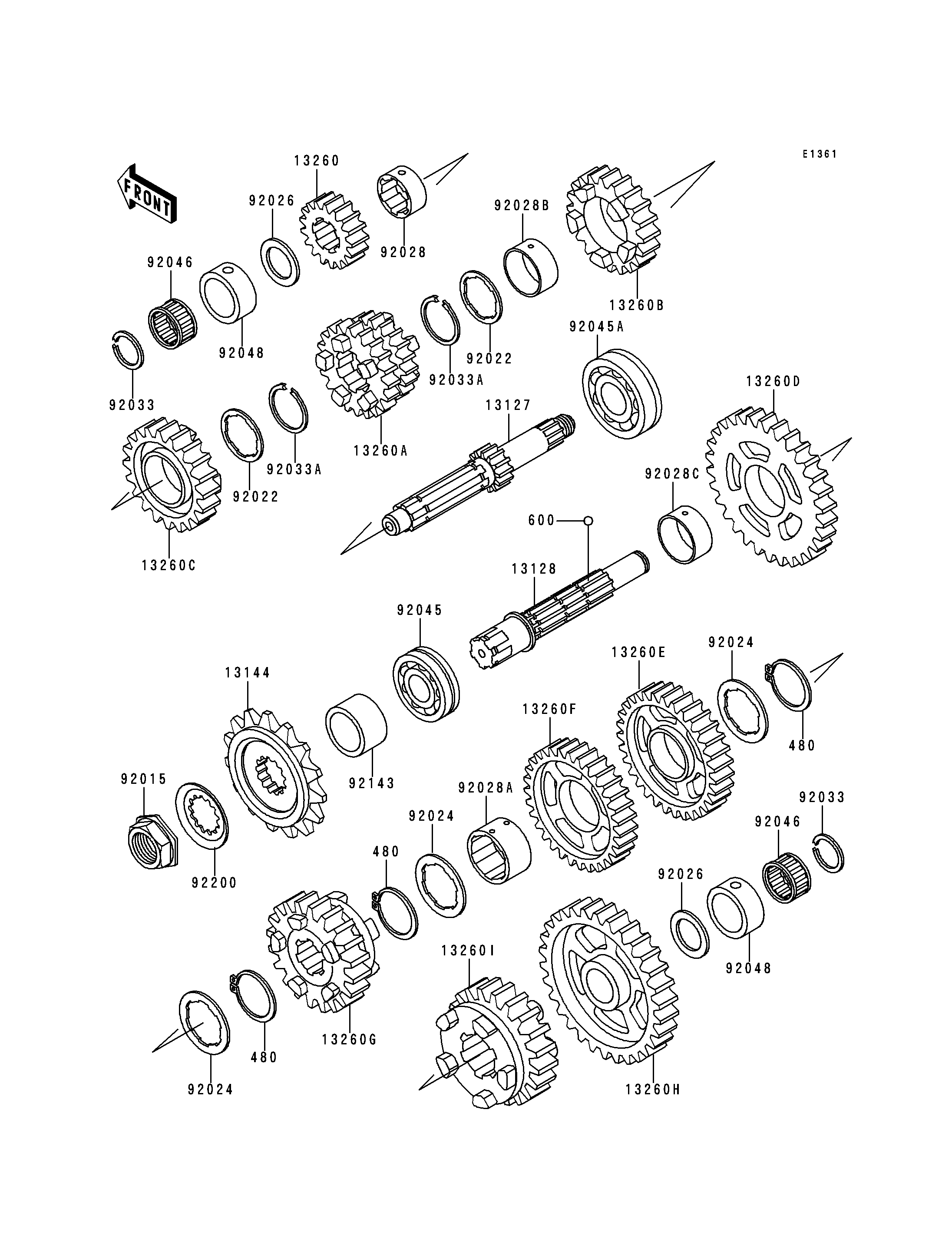

1996 Ninja® ZX™-6 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480
480
600
13127
13128
13144
13260
13260A
13260B
13260C
13260D
13260E
13260F
13260G
13260H
13260I
92015
92022
92022
92024
92024
92024
92026
92026
92028
92028A
92028B
92028C
92033
92033
92033A
92033A
92045
92045A
92046
92046
92048
92048
92143
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 480 480J2900 3
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT,12T 13127 13127-1230 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1194 1
SPROCKET-OUTPUT,16T 13144 13144-1212 1
GEAR,INPUT 2ND,16T 13260 13260-1334 1
GEAR,INPUT 3RD&4TH,21T&21T 13260A 13260-1413 1
GEAR,INPUT 5TH,23T 13260B 13260-1414 1
GEAR,INPUT TOP,24T 13260C 13260-1415 1
GEAR,OUTPUT 2ND,34T 13260D 13260-1417 1
GEAR,OUTPUT 3RD,35T 13260E 13260-1418 1
GEAR,OUTPUT 4TH,29T 13260F 13260-1419 1
GEAR,OUTPUT TOP,26T 13260G 13260-1421 1
GEAR,OUTPUT LOW,38T 13260H 13260-1463 1
GEAR,OUTPUT 5TH,28T 13260I 13260-1480 1
NUT,20MM 92015 92015-1963 1
WASHER,TOOTHED,28.3X33.5X1 92022 92022-1139 2
WASHER,TOOTHED,30.3X40X1.5 92024 92024-043 3
SPACER,22X35.5X2.1 92026 92026-1224 2
BUSHING,INPUT TOP GEAR 92028 92028-1255 1
BUSHING,OUTPUT 3RD&4TH 92028A 92028-1363 1
BUSHING,INPUT 5TH GEAR 92028B 92028-1449 1
BUSHING,OUTPUT 2ND 92028C 92028-1450 1
RING-SNAP,20X25.5X1.2 92033 92033-025 2
RING-SNAP,25.9MM 92033A 92033-1037 2
BEARING-BALL,83993SH2-CS 92045 92045-035 1
BEARING-BALL,6305N2SH2 92045A 92045-1224 1
BEARING-NEEDLE,FWF-223014 92046 92046-031 2
RACE,INPUT SHAFT 92048 92048-1066 2
COLLAR,25X32X20 92143 92143-1617 1
WASHER 92200 92200-1065 1
