Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
56054
56077
56077
56077A
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077M
57001
57001A

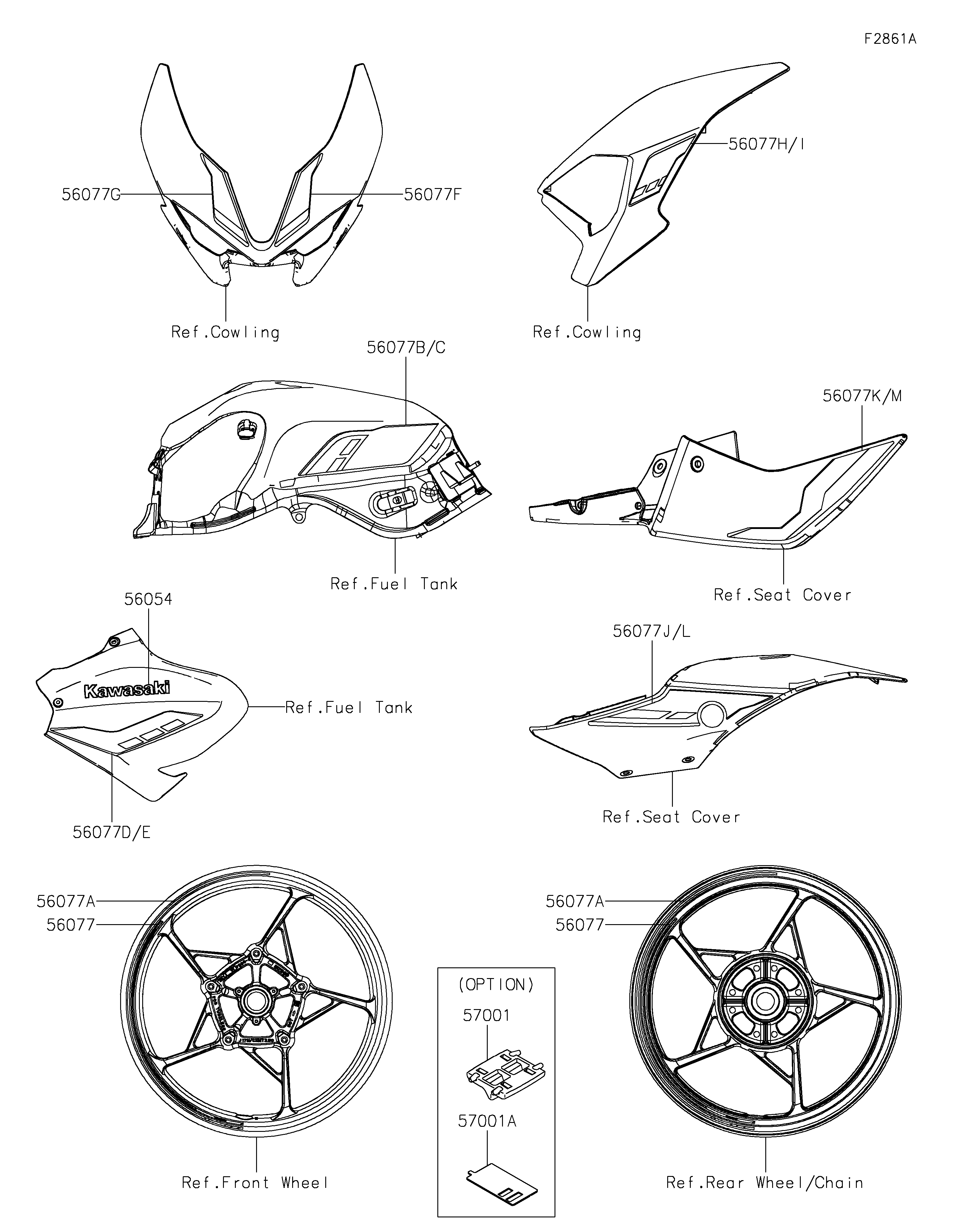

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56054 | 56054-1876 | 2 | ||
| PATTERN,WHEEL,BLK/BLUE,535X12 | 56077 | 56077-2293 | 4 | ||
| PATTERN,WHEEL,BLK/BLUE,700X6 | 56077A | 56077-2294 | 4 | ||
| PATTERN,FUEL TANK,LH | 56077B | 56077-2295 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077C | 56077-2296 | 1 | ||
| PATTERN,TANK COVER,LH | 56077D | 56077-2297 | 1 | ||
| PATTERN,TANK COVER,RH | 56077E | 56077-2298 | 1 | ||
| PATTERN,UPP COWL.,LH,UPP | 56077F | 56077-2299 | 1 | ||
| PATTERN,UPP COWL.,RH,UPP | 56077G | 56077-2300 | 1 | ||
| PATTERN,UPP COWL.,LH,LWR | 56077H | 56077-2301 | 1 | ||
| PATTERN,UPP COWL.,RH,LWR | 56077I | 56077-2302 | 1 | ||
| PATTERN,TAIL COVER,LH,FR | 56077J | 56077-2305 | 1 | ||
| PATTERN,TAIL COVER,LH,RR | 56077K | 56077-2306 | 1 | ||
| PATTERN,TAIL COVER,RH,FR | 56077L | 56077-2307 | 1 | ||
| PATTERN,TAIL COVER,RH,RR | 56077M | 56077-2308 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) | |
| RIM STRIPE APPLICATOR,10/12MM | 57001A | 57001-1836 | AR | (OPTION) |
