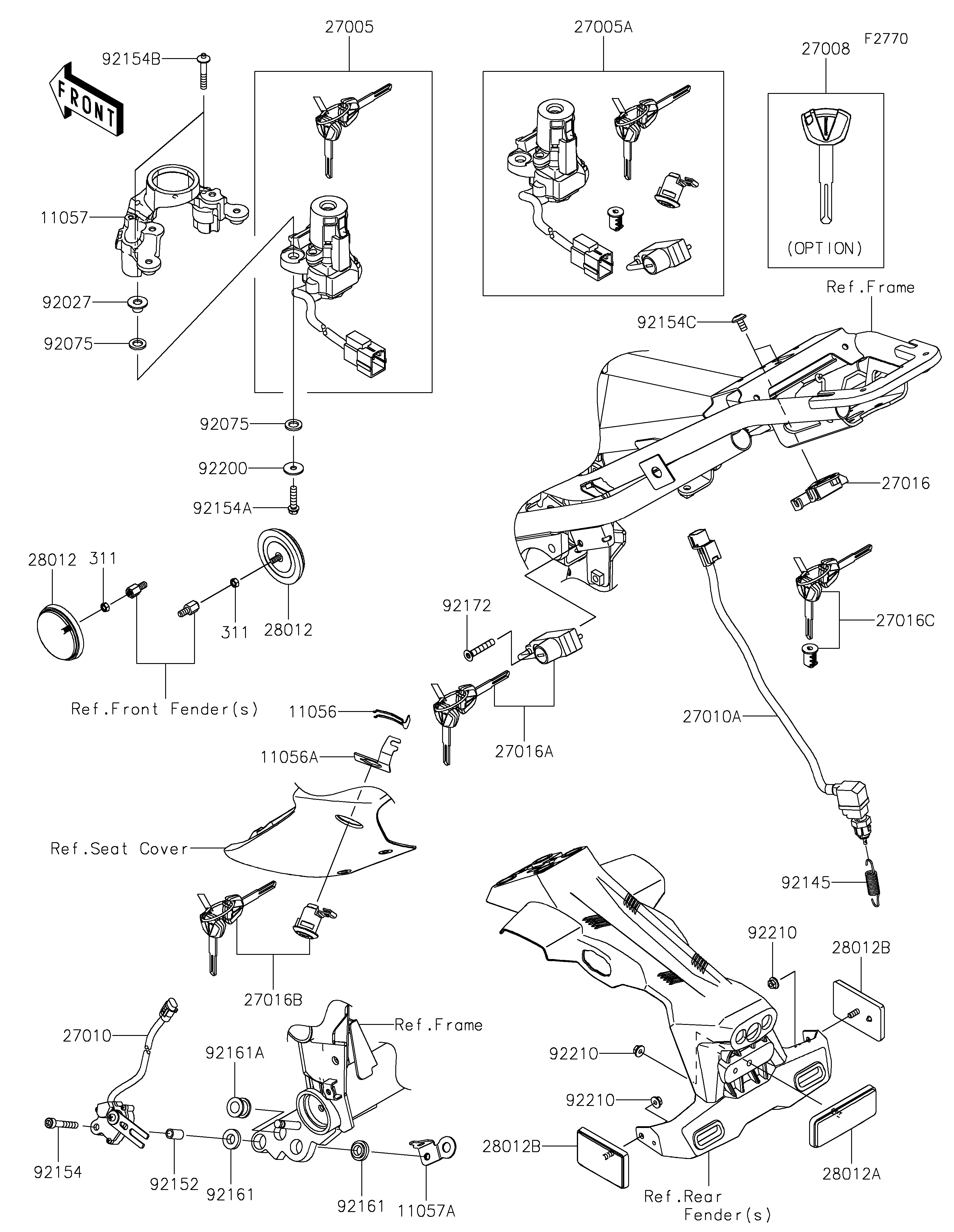

2025 Z900 ABS - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11057
11057A
27005
27005A
27008
27010
27010A
27016
27016A
27016B
27016C
28012
28012
28012A
28012B
28012B
92027
92075
92075
92145
92152
92154
92154A
92154B
92154C
92161
92161
92161A
92172
92200
92210
92210
92210
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLASP 11056 11056-0238 1
BRACKET,SEAT LOCK 11056A 11056-2119 1
BRACKET,IG. SWITCH 11057 11057-0251 1
BRACKET 11057A 11057-0319 1
SWITCH-ASSY-IGNITION 27005 27005-0750 1
SWITCH-ASSY-IGNITION 27005A 27005-5211 1
KEY-LOCK,BLANK 27008 27008-0662 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0722 1
SWITCH,REAR BRAKE 27010A 27010-1503 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0008 1
LOCK-ASSY,HELMET 27016A 27016-5423 1
LOCK-ASSY,SEAT 27016B 27016-5424 1
LOCK-ASSY,TANK CAP 27016C 27016-5425 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0061 2
REFLECTOR-REFLEX,RR,FLAP 28012A 28012-0064 1
REFLECTOR-REFLEX 28012B 28012-1088 2
COLLAR,L=9.6 92027 92027-1045 2
DAMPER 92075 92075-1564 4
SPRING,BRAKE LAMP SWITCH 92145 92145-1902 1
COLLAR,6.5X9.5X17 92152 92152-2274 1
BOLT,SOCKET,6X40 92154 92154-0505 1
BOLT,FLANGED,6X25 92154A 92154-2154 2
BOLT,E TYPE TORX,6X35 92154B 92154-2207 2
BOLT,SOCKET,6X12 92154C 92154-2355 2
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
SCREW,HEXLOBE,6X35 92172 92172-0835 1
WASHER,6X20X1.6 92200 92200-0780 2
NUT,FLANGED,5MM 92210 92210-0007 3
NUT-HEX,5MM 311 311AB0500 2
