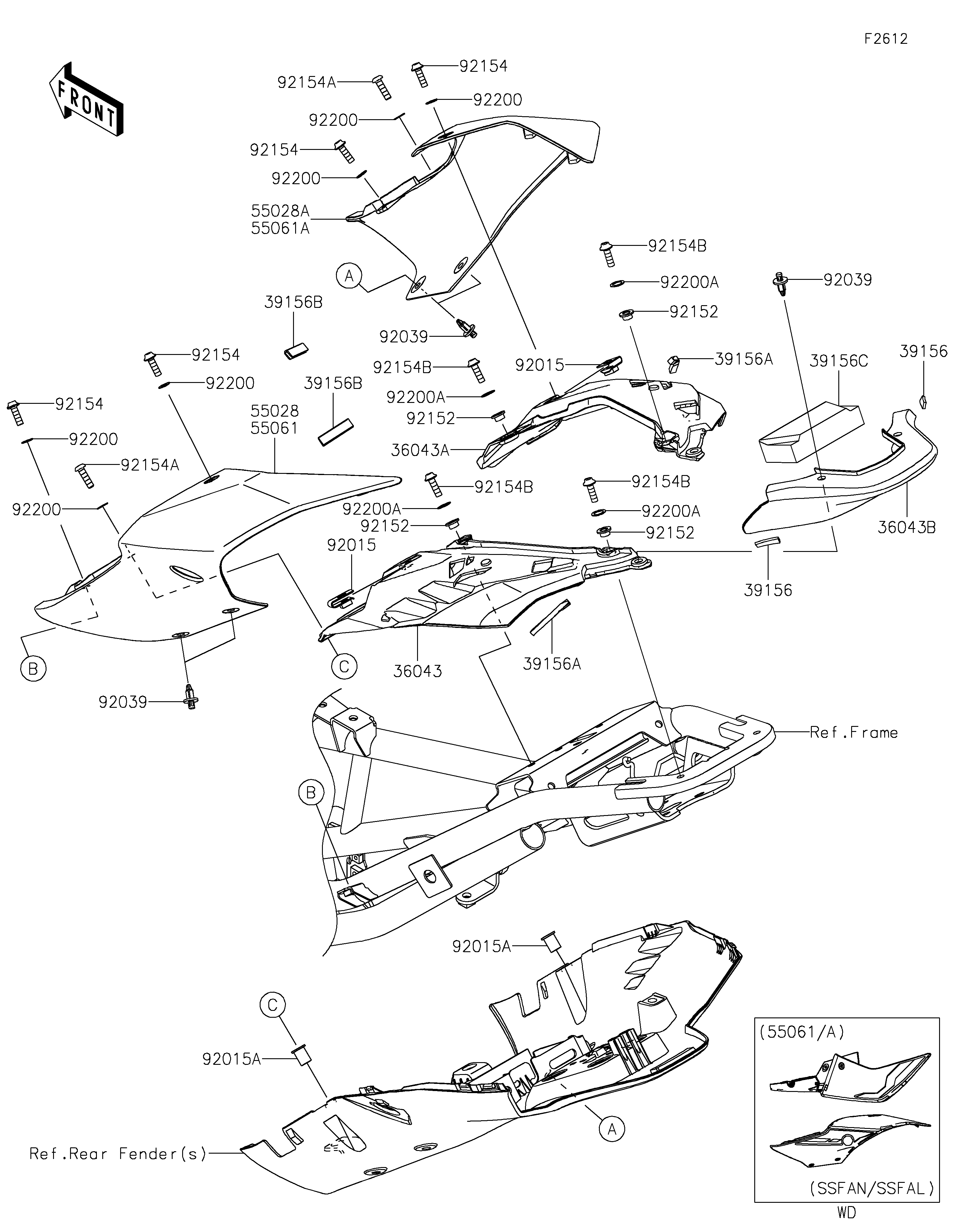

2025 Z900 ABS - Seat Cover

DOWNLOAD PDF
SELECT A NEW PART
36043
36043A
36043B
39156
39156
39156A
39156A
39156B
39156B
39156C
55028
55028A
55061
55061A
92015
92015
92015A
92015A
92039
92039
92039
92152
92152
92152
92152
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-TAIL,LH 36043 36043-0005 1
COVER-TAIL,RH 36043A 36043-0006 1
COVER-TAIL,CNT 36043B 36043-0007 1
PAD,5X20X2 39156 39156-2117 2
PAD,4X44X5 39156A 39156-2179 2
PAD,30X15X1 39156B 39156-2495 2
PAD,80X40X20 39156C 39156-2961 1
COWLING,TAIL,LH,M.S.BLACK 55028 55028-0901-660 1
COWLING,TAIL,RH,M.S.BLACK 55028A 55028-0902-660 1
COWLING,TAIL,LH,G.SILVER 55061 55061-5462-79E 1
COWLING,TAIL,RH,G.SILVER 55061A 55061-5463-79E 1
NUT,5MM 92015 92015-1710 2
NUT,WELL,5MM 92015A 92015-1757 2
RIVET 92039 92039-0068 6
COLLAR,5.6X8X5 92152 92152-2339 4
BOLT,SOCKET,5X16 92154 92154-4294 4
BOLT,SOCKET,5X18 92154A 92154-7320 2
BOLT,SOCKET,5X16 92154B 92154-7438 4
WASHER,5.2X10X0.5 92200 92200-1730 6
WASHER,8.2X12X0.5 92200A 92200-1887 4
