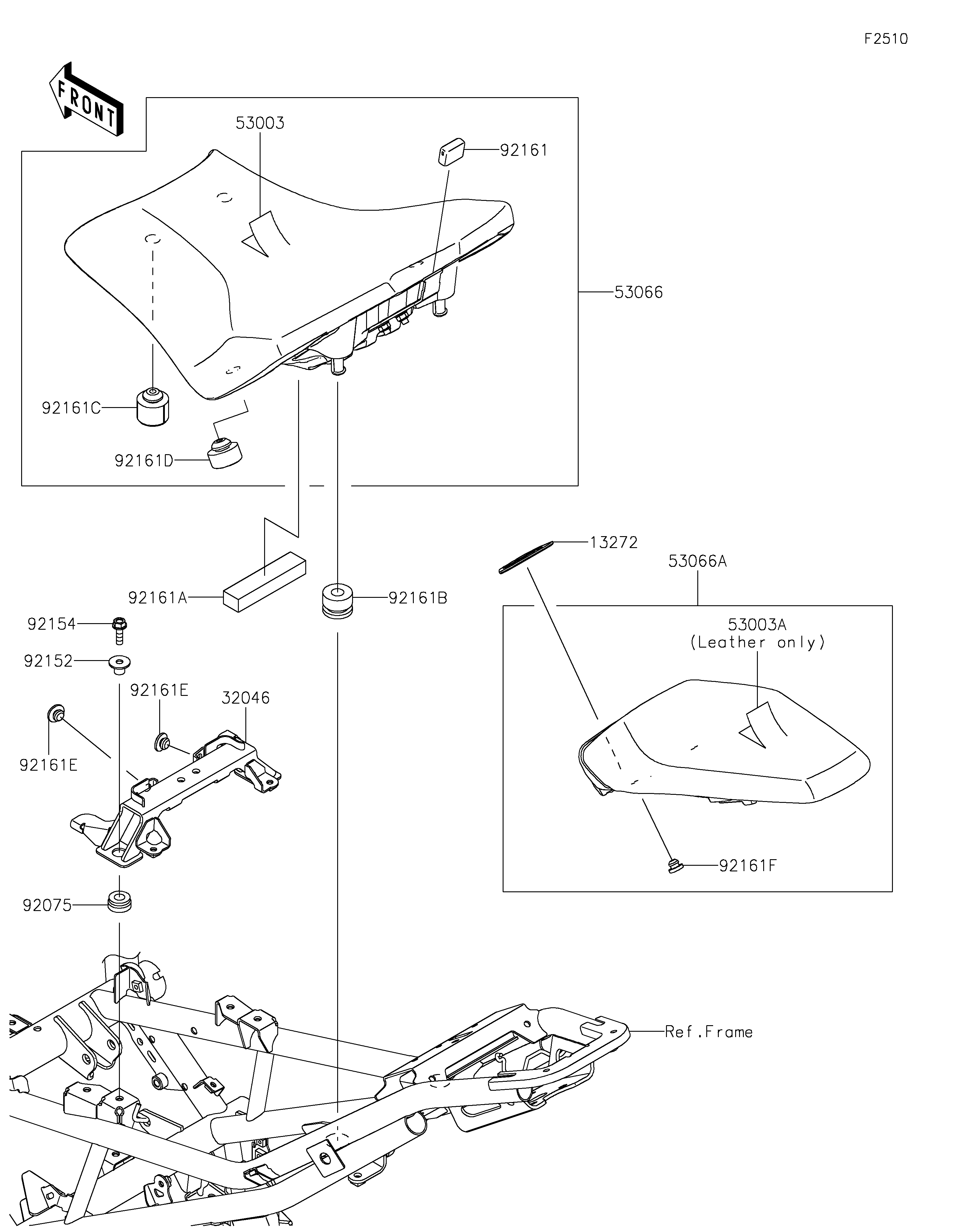

2025 Z900 ABS - Seat

DOWNLOAD PDF
SELECT A NEW PART
13272
32046
53003
53003A
53066
53066A
92075
92152
92154
92161
92161A
92161B
92161C
92161D
92161E
92161E
92161F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-4452 1
BRACKET-SEAT 32046 32046-0498 1
LEATHER,BLACK 53003 53003-0715-MA 1
LEATHER,RR SEAT,BLACK 53003A 53003-0716-MA 1
SEAT-ASSY,FR,LOW,BLACK 53066 53066-0936-MA 1
SEAT-ASSY,RR,BLACK+BLK 53066A 53066-0938-12Y 1
DAMPER 92075 92075-277 2
COLLAR 92152 92152-2616 2
BOLT,FLANGED,6X20 92154 92154-0776 2
DAMPER,SEAT BRACKET,FR 92161 92161-1865 1
DAMPER,20X90X15 92161A 92161-1867 1
DAMPER,12X28X21 92161B 92161-1913 2
DAMPER,14X30X22 92161C 92161-1969 2
DAMPER,14X30X14.5 92161D 92161-1970 2
DAMPER 92161E 92161-2250 2
DAMPER 92161F 92161-2308 2
