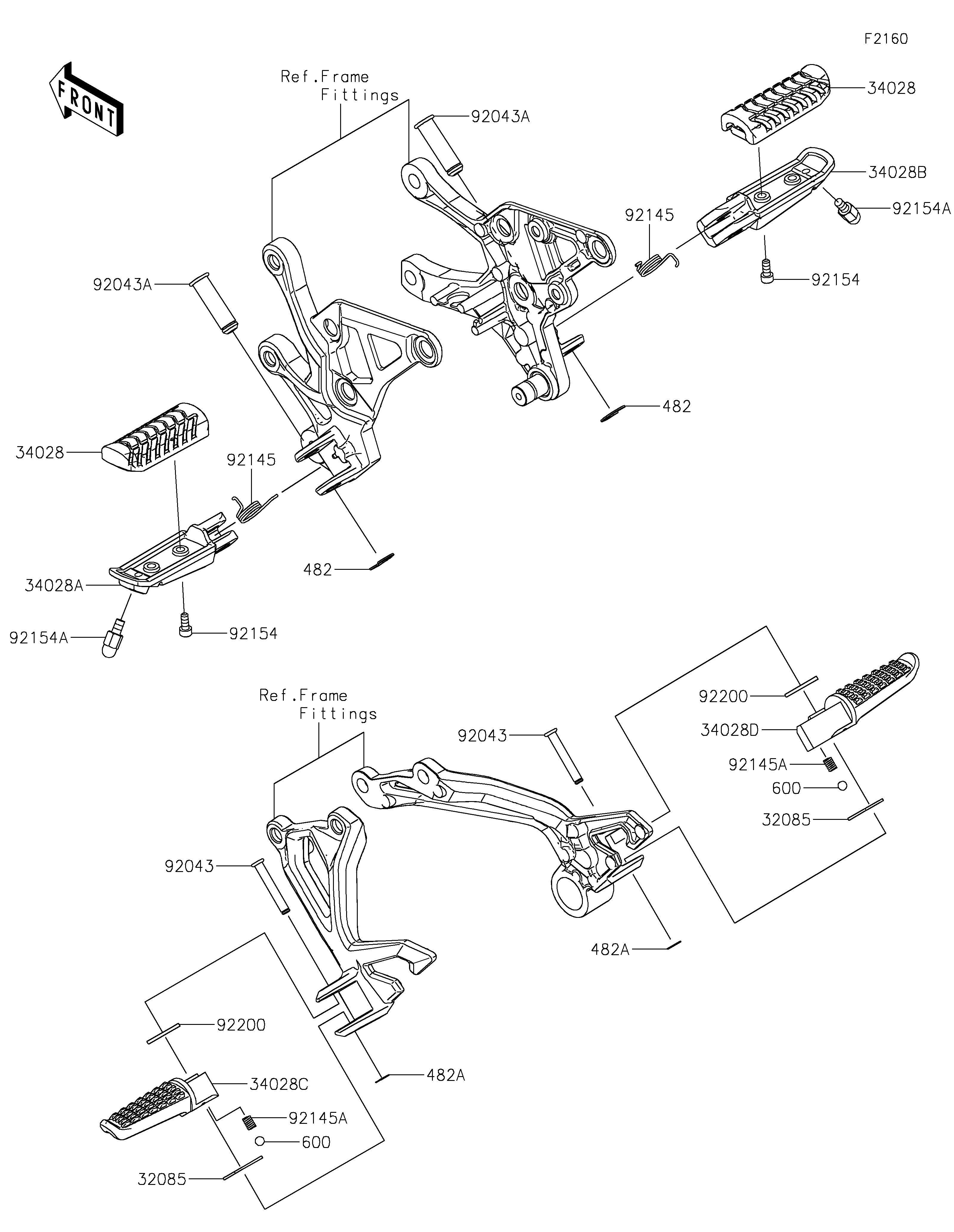

2025 Z900 ABS - Footrests

DOWNLOAD PDF
SELECT A NEW PART
32085
32085
34028
34028
34028A
34028B
34028C
34028D
92043
92043
92043A
92043A
92145
92145
92145A
92145A
92154
92154
92154A
92154A
92200
92200
482
482
482A
482A
600
600
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER 32085 32085-0801 2
STEP,RUBBER 34028 34028-0349 2
STEP,FR,LH 34028A 34028-0350 1
STEP,FR,RH 34028B 34028-0351 1
STEP,RR,LH 34028C 34028-0366 1
STEP,RR,RH 34028D 34028-0367 1
PIN,6X40 92043 92043-0200 2
PIN,12X42.5 92043A 92043-1746 2
SPRING,STEP RETURN 92145 92145-0723 2
SPRING 92145A 92145-1319 2
BOLT,SOCKET,5X12 92154 92154-0503 4
BOLT,BANK SENSOR 92154A 92154-0838 2
WASHER,16X26X2.3 92200 92200-0043 2
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
BALL-STEEL,1/4 600 600A0800 2
