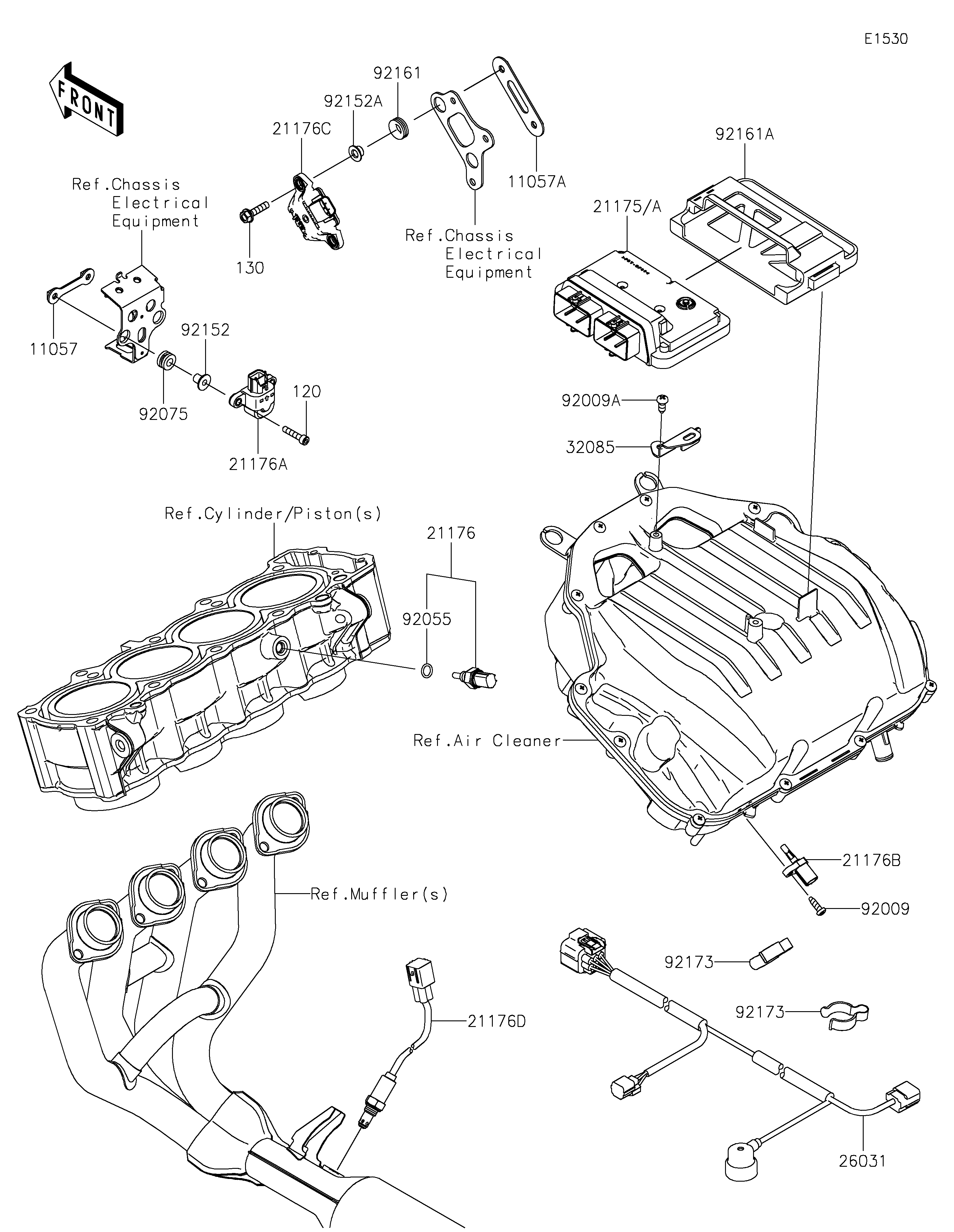

2025 Z900 ABS - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
21175
21175A
21176
21176A
21176B
21176C
21176D
26031
32085
92009
92009A
92055
92075
92152
92152A
92161
92161A
92173
92173
120
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,VEHICLE DOWN 11057 11057-0287 1
BRACKET,SENSOR 11057A 11057-0381 1
CONTROL UNIT-ELECTRONIC 21175 21175-2123 1 US
CONTROL UNIT-ELECTRONIC 21175A 21175-2124 1 CA
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,AIR TEMPERATURE 21176B 21176-0048 1
SENSOR,GYRO 21176C 21176-1126 1
SENSOR,OXYGEN,FR 21176D 21176-1220 1
HARNESS,SUB 26031 26031-3777 1
STOPPER 32085 32085-0918 1
SCREW,TAPPING,5X16 92009 92009-1984 1
SCREW,6X14 92009A 92009-3845 1
RING-O,9.5X1.9 92055 92055-0016 1
DAMPER 92075 92075-1912 2
COLLAR,5.6X8X11.2 92152 92152-1562 2
COLLAR,6.5X16X7.3 92152A 92152-2336 2
DAMPER,10X20X6 92161 92161-1592 2
DAMPER,ECU 92161A 92161-2140 1
CLAMP 92173 92173-2419 2
BOLT-SOCKET,5X25 120 120CA0525 2
BOLT-FLANGED,6X25 130 130BA0625 2
