Parts Diagrams |

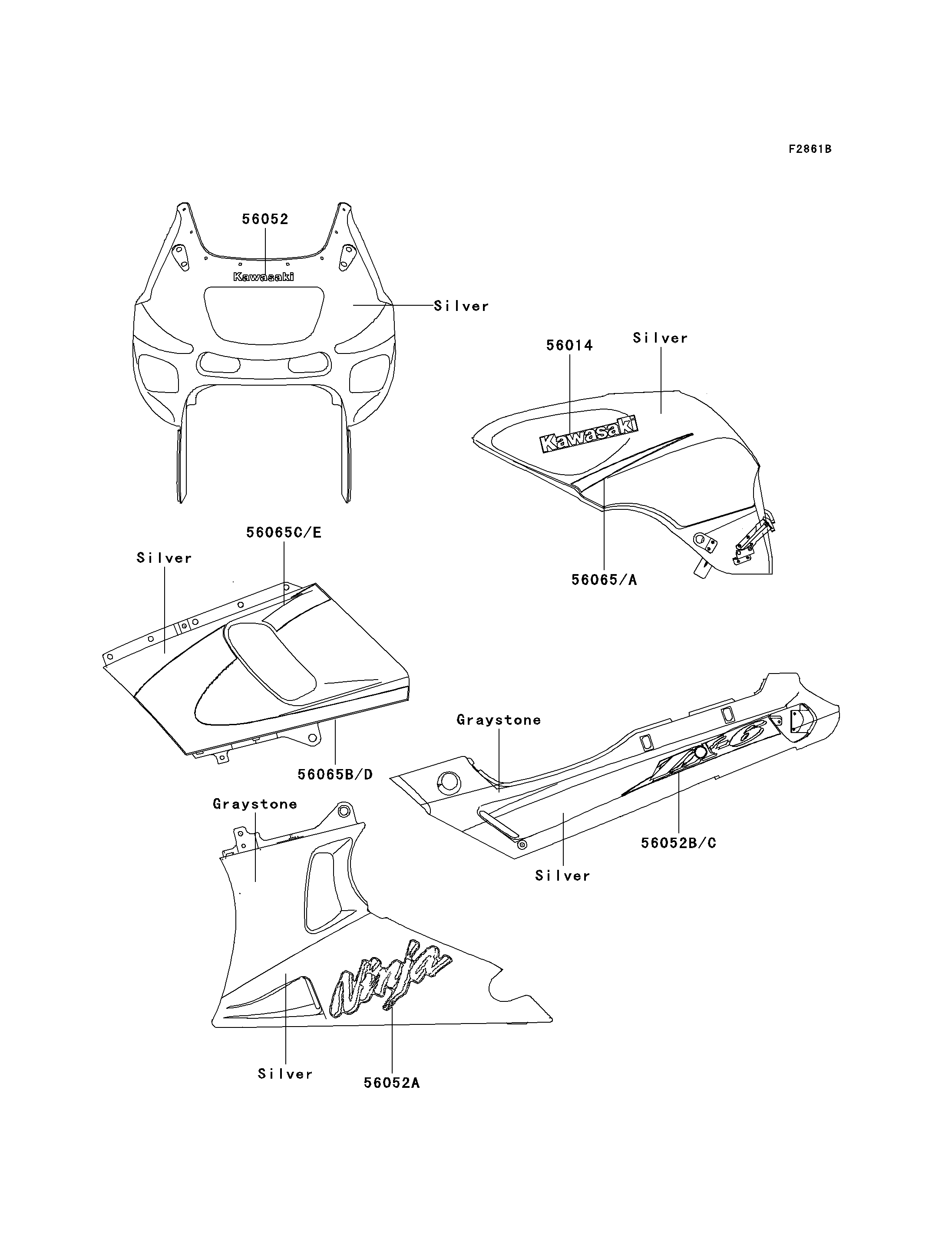

2002 Ninja® ZX™-6 - Decals(Silver/Graystone)(E10)(CN)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1405 | 2 | CN | |
| MARK,UPP COWLING,KAWASAKI | 56052 | 56052-1606 | 1 | CN | |
| MARK,LWR COWLING,NINJA | 56052A | 56052-1666 | 2 | CN | |
| MARK,SEAT COVER,LH,ZX-6 | 56052B | 56052-1690 | 1 | CN | |
| MARK,SEAT COVER,RH,ZX-6 | 56052C | 56052-1691 | 1 | CN | |
| PATTERN,FUEL TANK,LH | 56065 | 56065-1579 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56065A | 56065-1580 | 1 | CN | |
| PATTERN,CNT COWLING,FR,LH | 56065B | 56065-1581 | 1 | CN | |
| PATTERN,CNT COWLING,RR,LH | 56065C | 56065-1582 | 1 | CN | |
| PATTERN,CNT COWLING,FR,RH | 56065D | 56065-1583 | 1 | CN | |
| PATTERN,CNT COWLING,RR,RH | 56065E | 56065-1584 | 1 | CN |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,UPP COWLING,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,NINJA | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SEAT COVER,LH,ZX-6 | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SEAT COVER,RH,ZX-6 | |
| REF # | 56052C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,FR,LH | |
| REF # | 56065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,RR,LH | |
| REF # | 56065C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,FR,RH | |
| REF # | 56065D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,RR,RH | |
| REF # | 56065E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
