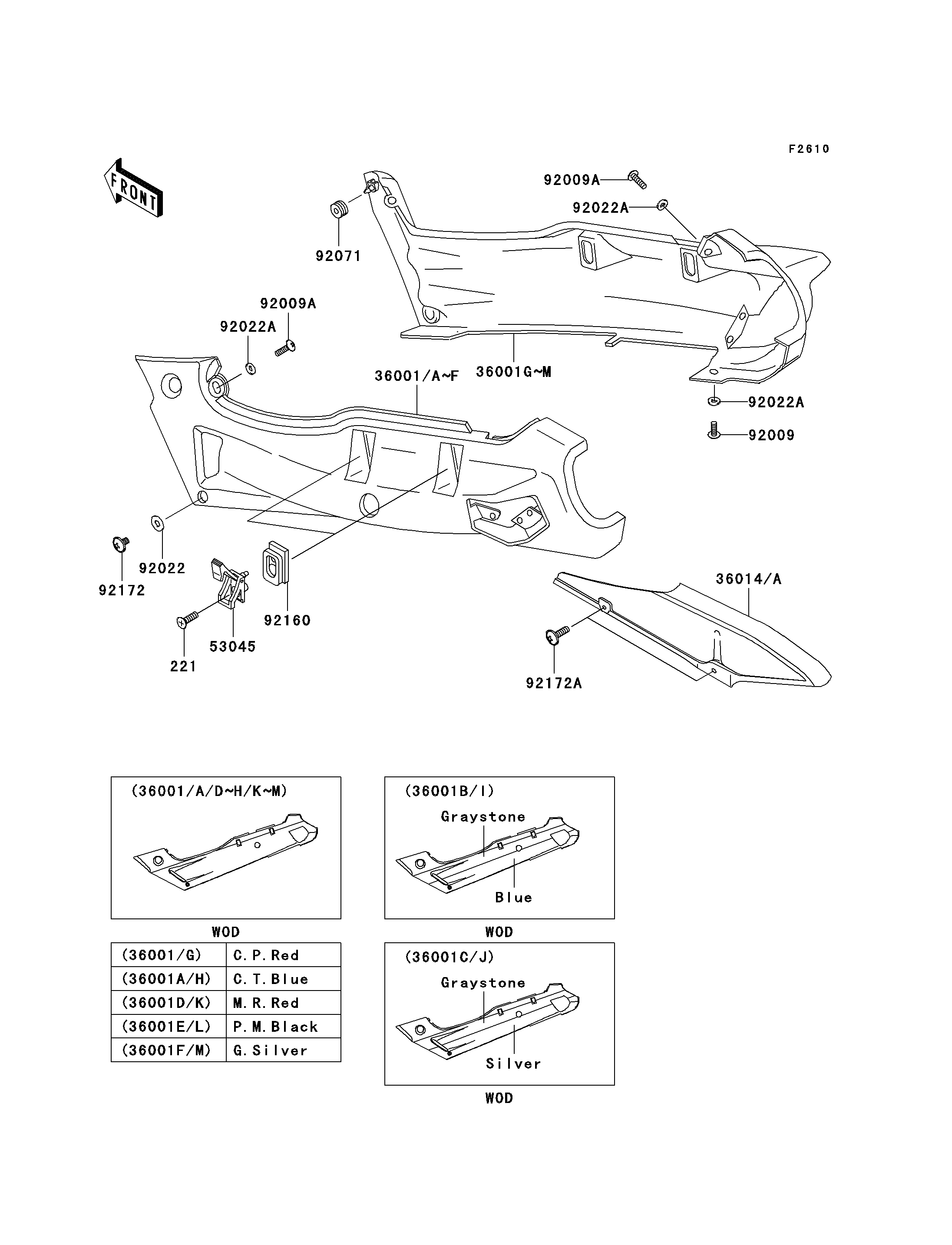

2003 ZZR600 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
221
221
36014A
36014A
53045
53045
92009
92009
92009A
92009A
92009A
92009A
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92071
92071
92160
92160
92172
92172
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-CSK-CROS,6X20 221 221E0620 4
CASE-CHAIN 36014A 36014-1261 1
HOOK-ASSY,TOOL BOX 53045 53045-1053 4
SCREW,5X14 92009 92009-1653 2
SCREW,5X20,BLACK 92009A 92009-1656 4
WASHER,6.5X16X1 92022 92022-1143 2
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 6
GROMMET 92071 92071-056 2
DAMPER,ROPE HOOK 92160 92160-1042 4
SCREW,6X10 92172 92172-0005 2
SCREW,6X20 92172A 92172-0106 2
COVER-SIDE,LH,C.T.BLUE 36001A 36001-1493-235 1 CN
COVER-SIDE,LH,P.M.BLACK 36001E 36001-1493-373 1 CAUS
COVER-SIDE,LH,G.SILVER 36001F 36001-1493-474 1 CN
COVER-SIDE,RH,C.T.BLUE 36001H 36001-1494-235 1 CN
COVER-SIDE,RH,P.M.BLACK 36001L 36001-1494-373 1 CAUS
COVER-SIDE,RH,G.SILVER 36001M 36001-1494-474 1 CN
