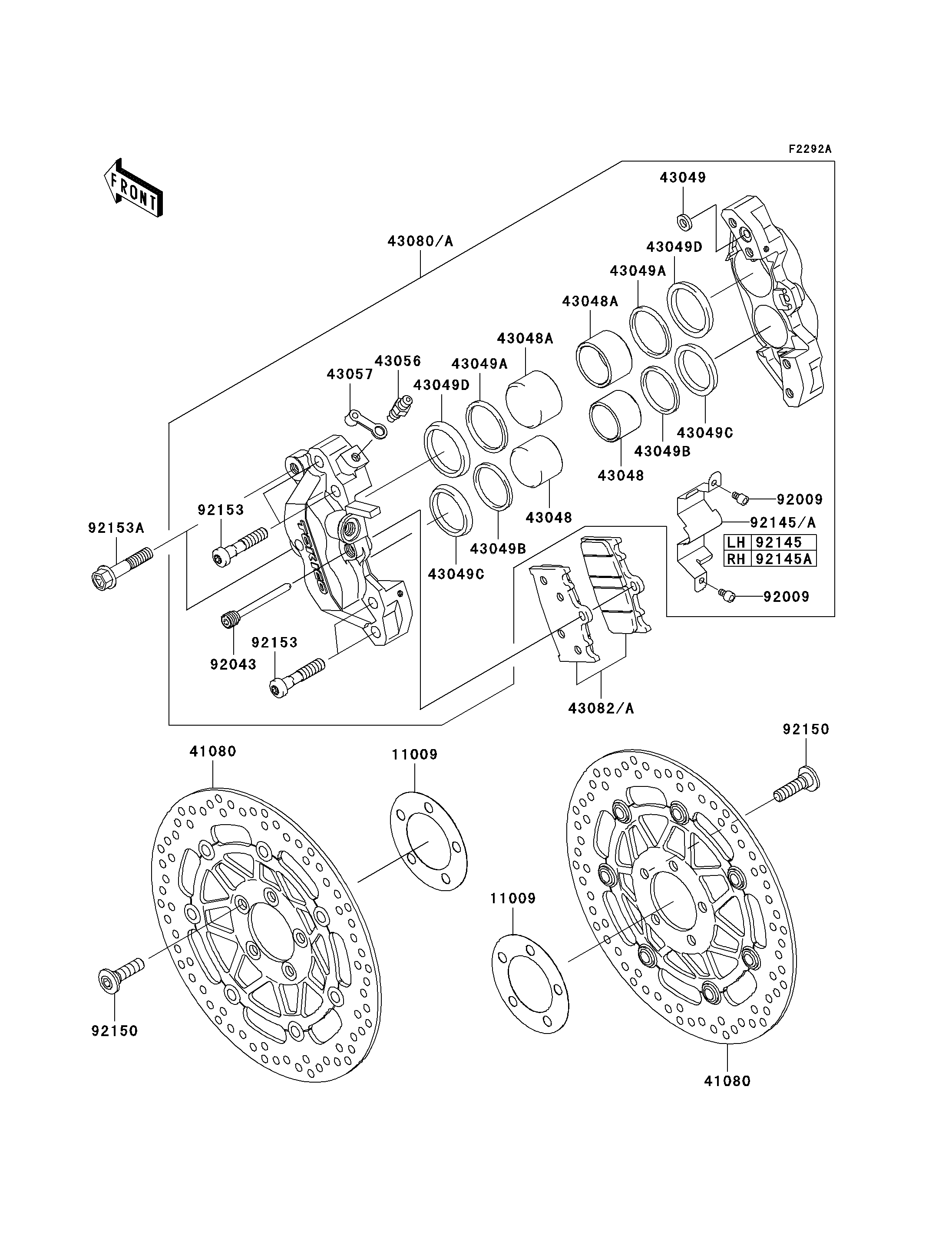

2004 ZZR600 - Front Brake(E12/E13)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11009 11009-1754 2 CN
DISC,FR,GRAY+DISC-SILVER 41080 41080-0043-S1 2 CN
PISTON-CALIPER,DIA=30.2 43048 43048-1098 4 CN
PISTON-CALIPER,DIA=33.934 43048A 43048-1099 4 CN
PACKING,SEAL,6.5X11.5X2.2 43049 43049-1004 2 CN
PACKING,PISTON 43049A 43049-1057 4 CN
PACKING 43049B 43049-1068 4 CN
PACKING,PISTON SEAL 43049C 43049-1092 4 CN
PACKING,PISTON SEAL 43049D 43049-1095 4 CN
BREATHER-BRAKE 43056 43056-1054 2 CN
CAP-BREATHER 43057 43057-003 2 CN
CALIPER-SUB-ASSY,FR,LH,BLACK 43080 43080-5086-DJ 1 CN
CALIPER-SUB-ASSY,FR,RH,BLACK 43080A 43080-5087-DJ 1 CN
PAD-ASSY-BRAKE 43082 43082-0014 2 CN
BOLT,SOCKET,4X6 92009 92009-1758 4 CN
PIN,PAD 92043 92043-1683 2 CN
SPRING,COVER 92145 92145-1503 1 CN
SPRING,COVER,RH 92145A 92145-1504 1 CN
BOLT,SOCKET,8X30 92150 92150-1771 10 CN
BOLT,SOCKET,8X40 92153 92153-0360 8 CN
BOLT,FLANGED,8X40 92153A 92153-0482 4 CN
