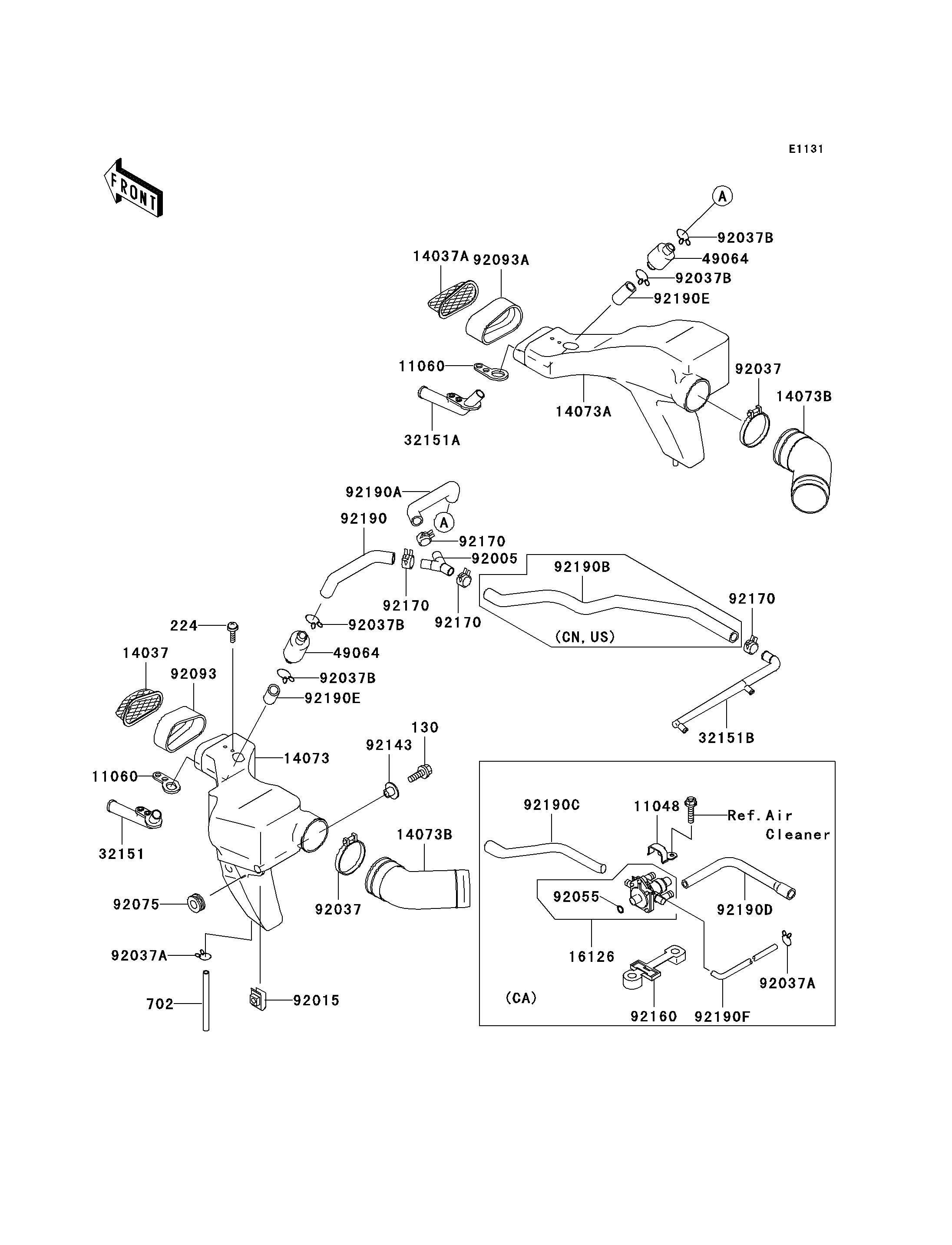

2003 ZZR600 - Air Duct

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060
11060
14037
14037
14037A
14037A
14073
14073
14073A
14073A
14073B
14073B
14073B
14073B
32151
32151
32151A
32151A
32151B
32151B
49064
49064
49064
49064
92005
92005
92015
92015
92037
92037
92037
92037
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92075
92075
92093
92093
92093A
92093A
92143
92143
92170
92170
92170
92170
92170
92170
92170
92170
92190
92190
92190A
92190A
92190E
92190E
92190E
92190E
130
130
224
224
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11060 11060-1343 2
SCREEN,AIR DUCT,LH 14037 14037-1166 1
SCREEN,AIR DUCT,RH 14037A 14037-1167 1
DUCT,AIR INTAKE,LH 14073 14073-1549 1
DUCT,AIR INTAKE,RH 14073A 14073-1550 1
DUCT,DUCT-AIR FILTER 14073B 14073-1574 2
PIPE,LH 32151 32151-1462 1
PIPE,RH 32151A 32151-1463 1
PIPE 32151B 32151-1540 1
FILTER-AIR 49064 49064-1055 2
FITTING,Y-TIPE 92005 92005-1250 1
NUT,6MM 92015 92015-1602 2
CLAMP,AIR FILTER 92037 92037-1409 2
CLAMP,TUBE 92037B 92037-213 4
DAMPER 92075 92075-1634 2
SEAL,LH 92093 92093-1347 1
SEAL,RH 92093A 92093-1348 1
COLLAR,L=9.6 92143 92143-1016 2
CLAMP 92170 92170-1060 4
TUBE,14X20X158,LH 92190 92190-1413 1
TUBE,14X20X158,RH 92190A 92190-1414 1
TUBE,14X20X28 92190E 92190-1429 2
BOLT-FLANGED,6X25 130 130H0625 2
SCREW-PAN-WP-CROS,5X12 224 224C0512 4
TUBE-RUBBER,7X10X120 702 702A07120 2
BRACKET,VALVE 11048 11048-1179 1 CA
VALVE,CANISTER 16126 16126-1274 1 CA
CLAMP 92037A 92037-1712 2 CNUS
CLAMP 92037A 92037-1712 3 CA
RING-O 92055 92055-1524 1 CA
DAMPER 92160 92160-1431 1 CA
TUBE,14X20X525 92190B 92190-1415 1 CNUS
TUBE,VALVE-FITTING 92190C 92190-1422 1 CA
TUBE,VALVE-FITTING 92190D 92190-1423 1 CA
TUBE,4X9X276 92190F 92190-1444 1 CA
