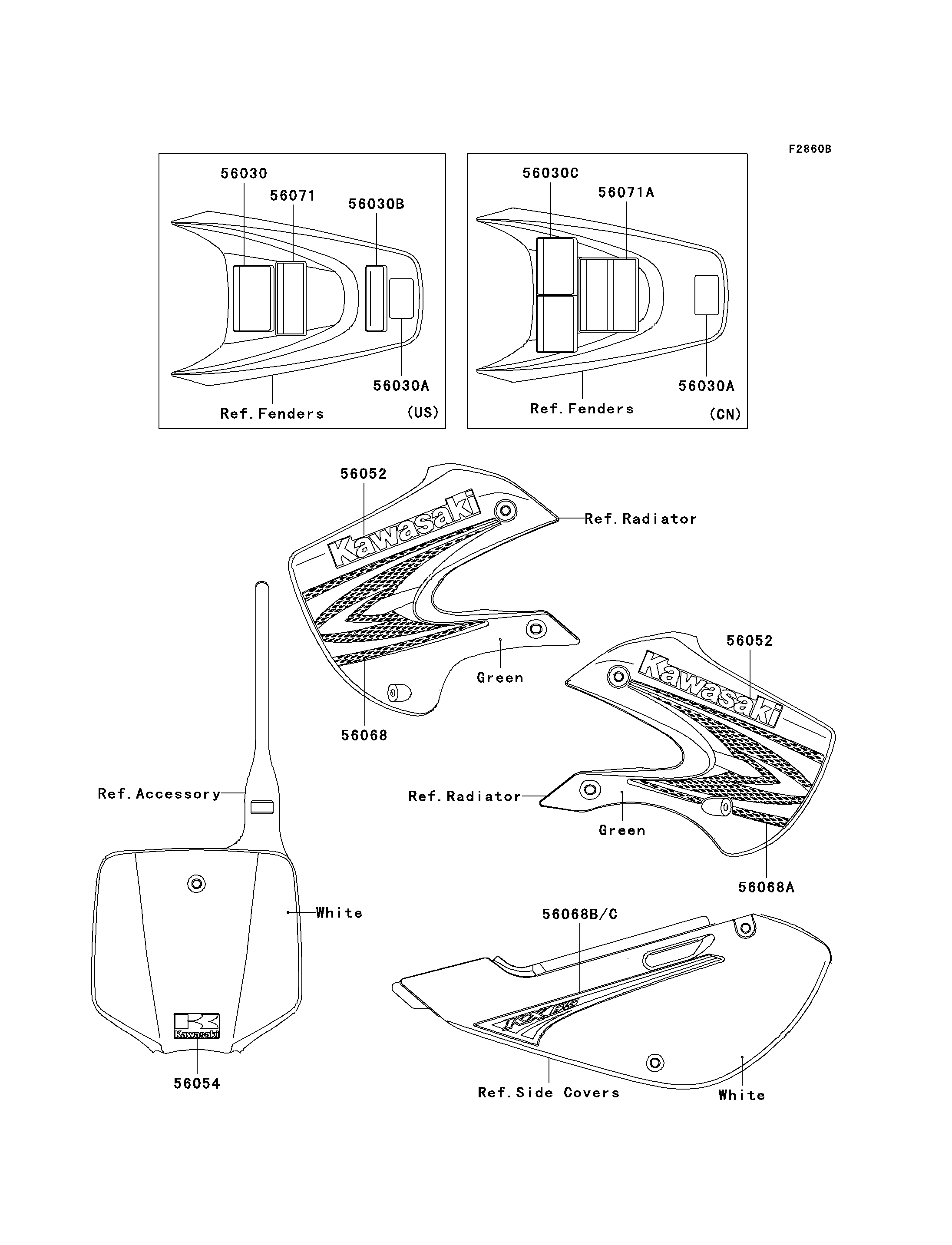

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,32:1 | 56030A | 56030-1230 | 1 | ||
| MARK,SHROUD,KAWASAKI | 56052 | 56052-0562 | 2 | ||
| MARK,NUMBER PLATE,K.KAWASAKI | 56054 | 56054-0053 | 1 | ||
| PATTERN,SHROUD,LH | 56068 | 56068-0296 | 1 | ||
| PATTERN,SHROUD,RH | 56068A | 56068-0297 | 1 | ||
| PATTERN,SIDE COVER,LH | 56068B | 56068-0298 | 1 | ||
| PATTERN,SIDE COVER,RH | 56068C | 56068-0299 | 1 | ||
| LABEL,DISCLAIMER | 56030 | 56030-1229 | 1 | US | |
| LABEL,NOISE EMISSION | 56030B | 56030-1231 | 1 | US | |
| LABEL,DISCLAIMER | 56030C | 56030-1233 | 1 | CN | |
| LABEL-WARNING,IMPORTANT NOTICE | 56071 | 56071-0028 | 1 | US | |
| LABEL-WARNING,IMPORTANT NOTICE | 56071A | 56071-0029 | 1 | CN |
