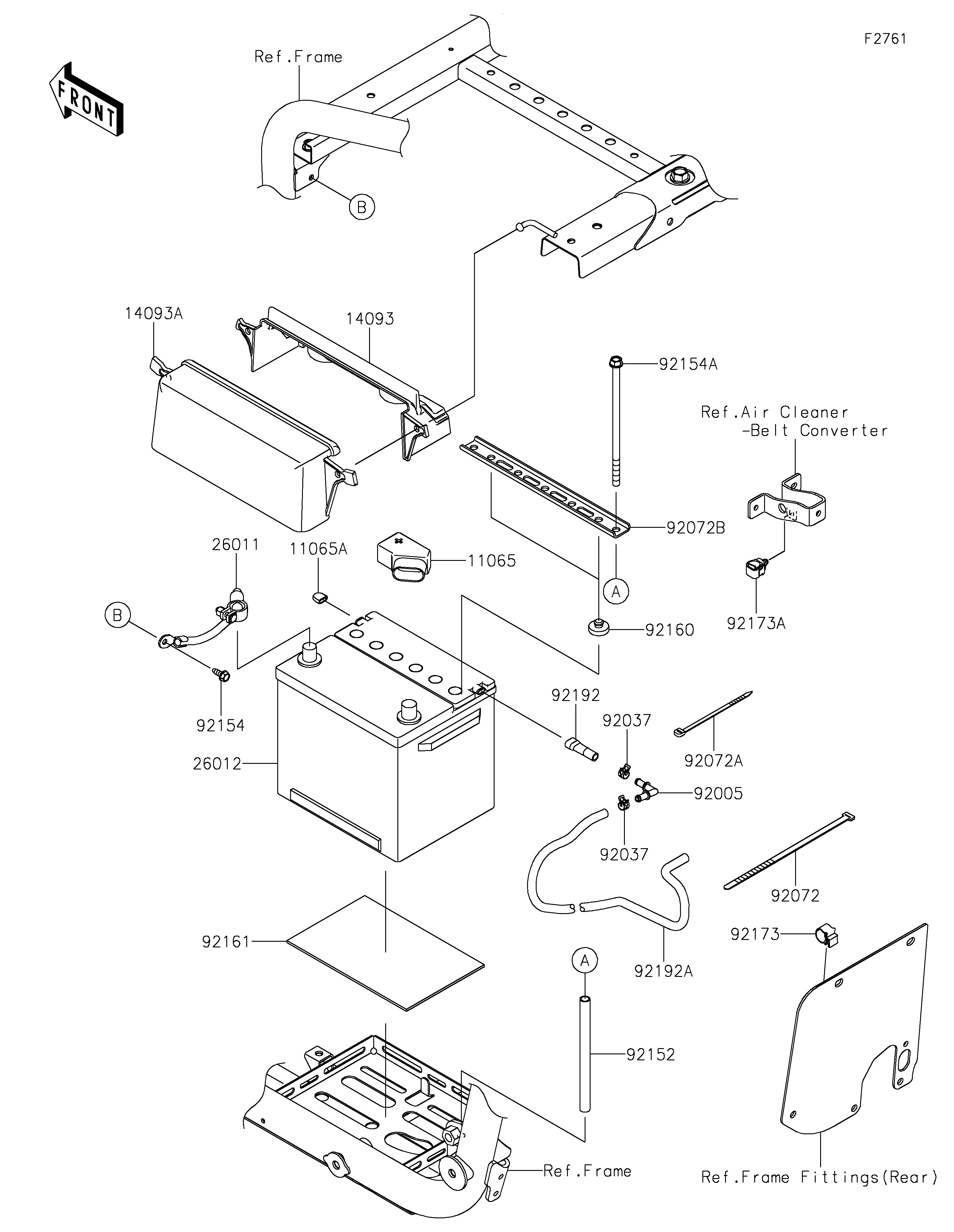

2025 Teryx KRX 1000 Lifted Edition - Battery

DOWNLOAD PDF
SELECT A NEW PART
11065
11065A
14093
14093A
26011
26012
92005
92037
92037
92072
92072A
92072B
92152
92154
92154A
92160
92161
92173
92173A
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0850 1
CAP 11065A 11065-1518 1
COVER,BATTERY TERMINAL,INNER 14093 14093-0800 1
COVER,BATTERY TERMINAL,OUTER 14093A 14093-0801 1
WIRE-LEAD,BATTERY(-) 26011 26011-1871 1
BATTERY,WET,(26R) 26012 26012-1569 1
FITTING,BREATHER 92005 92005-1581 1
CLAMP,TUBE 92037 92037-1461 2
BAND,L=218 92072 92072-032 5
BAND,92X2.4 92072A 92072-0791 2
BAND,BATTERY 92072B 92072-0844 1
COLLAR,9.4X12.7X160 92152 92152-2584 1
BOLT,FLANGED,6X16 92154 92154-0551 1
BOLT,FLANGED,8X175 92154A 92154-3973 2
DAMPER 92160 92160-1396 2
DAMPER 92161 92161-0578 1
CLAMP,CLIP 92173 92173-0127 1
CLAMP,12MM DIA. 92173A 92173-0736 1
TUBE,BREATHER 92192 92192-2873 1
TUBE,BREATHER,7X10X2180 92192A 92192-2876 1
