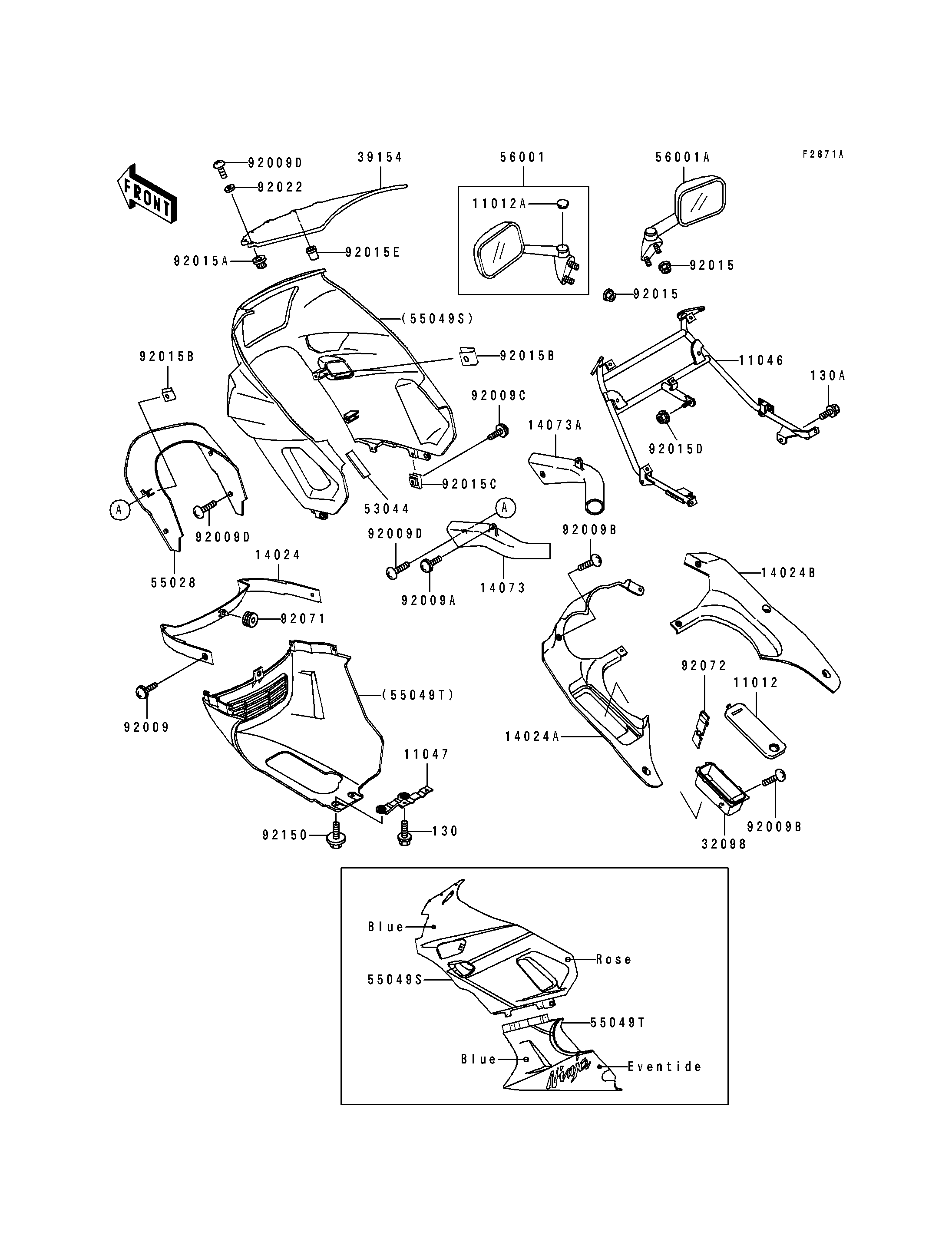

1993 Ninja® ZX™-6 - Cowling(ZX600-D4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,INNER COWLING,LH 11012 11012-1735 1
CAP,MIRROR,BLACK 11012A 11012-1751-6Z 2
BRACKET,COWLING 11046 11046-1962 1
BRACKET,LWR COWLING 11047 11047-1091 1
COVER,COWLING,CNT,G.GRAY 14024 14024-1877-HN 1
COVER,INNER COWLING,LH 14024A 14024-1901 1
COVER,INNER COWLING,RH 14024B 14024-1902 1
DUCT,AIR INTAKE,LH 14073 14073-1426 1
DUCT,AIR INTAKE,RH 14073A 14073-1427 1
CASE-TOOL 32098 32098-1093 1
WINDSHIELD 39154 39154-1109 1
TRIM 53044 53044-1218 2
COWLING,FR,M.N.BLUE 55028 55028-1244-TK 1
COWLING.,UPP,BLUE/ROSE 55049S 55049-5127-TG 1
COWLING.,LWR,BLUE/EVENTIDE 55049T 55049-5128-TJ 1
MIRROR-ASSY,LH,M.N.BLUE 56001 56001-1394-C6 1
MIRROR-ASSY,RH,M.N.BLUE 56001A 56001-1395-C6 1
SCREW,6X14,WHITE 92009 92009-1287 2
SCREW,6X14 92009A 92009-1288 2
SCREW,6X14 92009B 92009-1611 7
SCREW,6X16 92009C 92009-1621 4
SCREW,5X16 92009D 92009-1654 12
NUT,FLANGED,6MM 92015 92015-1233 4
NUT,5MM,COWLING 92015A 92015-1343 2
NUT,5MM 92015B 92015-1573 6
NUT,6MM 92015C 92015-1602 4
NUT,FLANGED,LOCK,8MM 92015D 92015-1696 1
NUT,WELL,5MM 92015E 92015-1757 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
GROMMET 92071 92071-056 1
BAND,L=300 92072 92072-1235 1
BOLT,6X14 92150 92150-1133 2
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED 130A 130J0812 2
