Parts Diagrams |

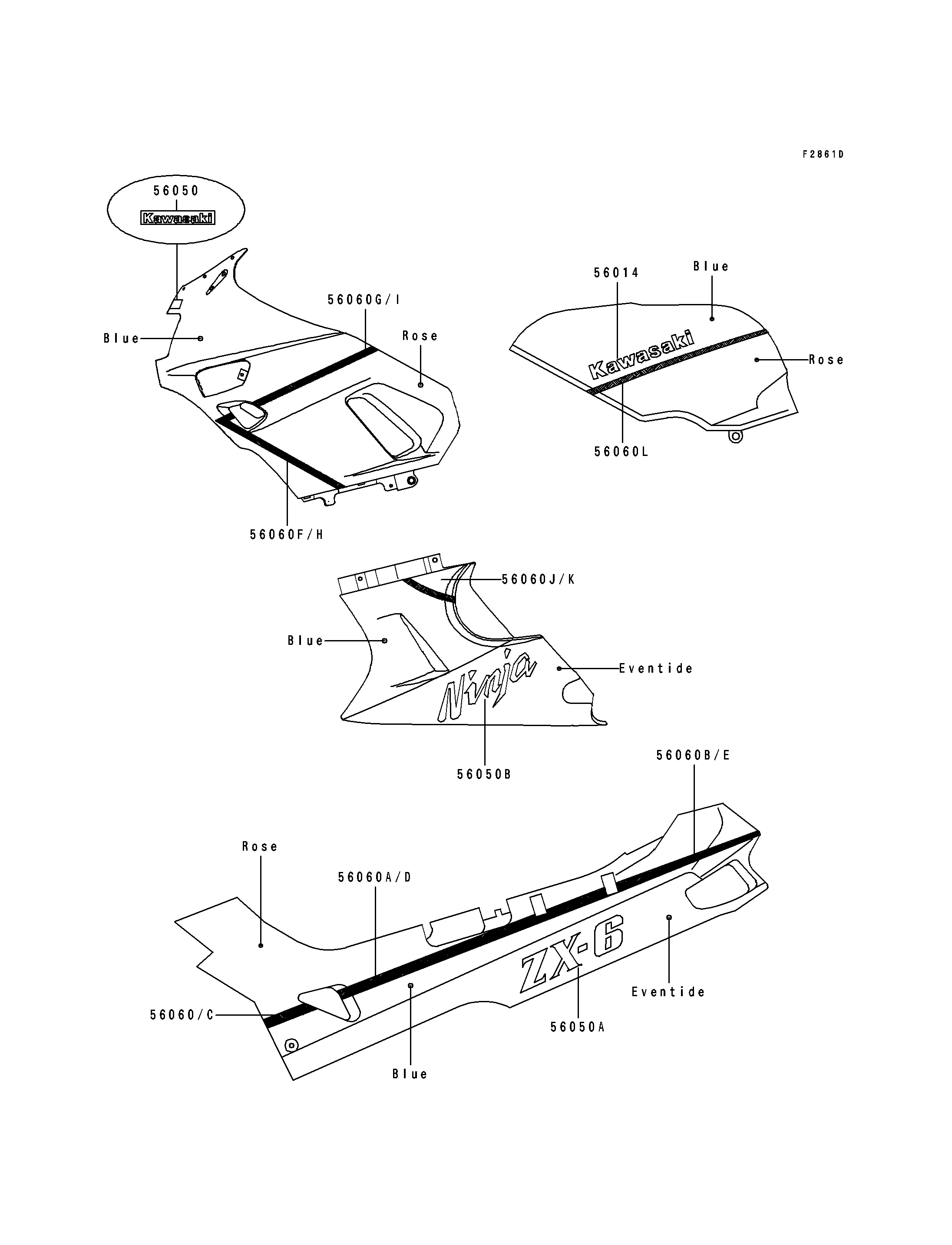

1993 Ninja® ZX™-6 - Decal(Nocturne)(ZX600-D4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1276 | 2 | ||
| MARK,KAWASAKI | 56050 | 56050-1780 | 1 | ||
| MARK,ZX-6 | 56050A | 56050-1859 | 2 | ||
| MARK,NINJA | 56050B | 56050-1860 | 2 | ||
| PATTERN,SIDE COVER,FR,LH | 56060 | 56060-1121 | 1 | ||
| PATTERN,SIDE COVER,CNT,LH | 56060A | 56060-1122 | 1 | ||
| PATTERN,SIDE COVER,RR,LH | 56060B | 56060-1123 | 1 | ||
| PATTERN,SIDE COVER,FR,RH | 56060C | 56060-1124 | 1 | ||
| PATTERN,SIDE COVER,CNT,RH | 56060D | 56060-1125 | 1 | ||
| PATTERN,SIDE COVER,RR,RH | 56060E | 56060-1126 | 1 | ||
| PATTERN,UPP COWLING,FR,LH | 56060F | 56060-1127 | 1 | ||
| PATTERN,UPP COWLING,RR,LH | 56060G | 56060-1128 | 1 | ||
| PATTERN,UPP COWLING,FR,RH | 56060H | 56060-1129 | 1 | ||
| PATTERN,UPP COWLING,RR,RH | 56060I | 56060-1130 | 1 | ||
| PATTERN,LWR COWLING,LH | 56060J | 56060-1131 | 1 | ||
| PATTERN,LWR COWLING,RH | 56060K | 56060-1132 | 1 | ||
| PATTERN,FUEL TANK | 56060L | 56060-1201 | 1 |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,ZX-6 | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,NINJA | |
| REF # | 56050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,FR,LH | |
| REF # | 56060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,CNT,LH | |
| REF # | 56060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RR,LH | |
| REF # | 56060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,FR,RH | |
| REF # | 56060C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,CNT,RH | |
| REF # | 56060D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RR,RH | |
| REF # | 56060E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,FR,LH | |
| REF # | 56060F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RR,LH | |
| REF # | 56060G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,FR,RH | |
| REF # | 56060H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RR,RH | |
| REF # | 56060I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LH | |
| REF # | 56060J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RH | |
| REF # | 56060K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK | |
| REF # | 56060L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
