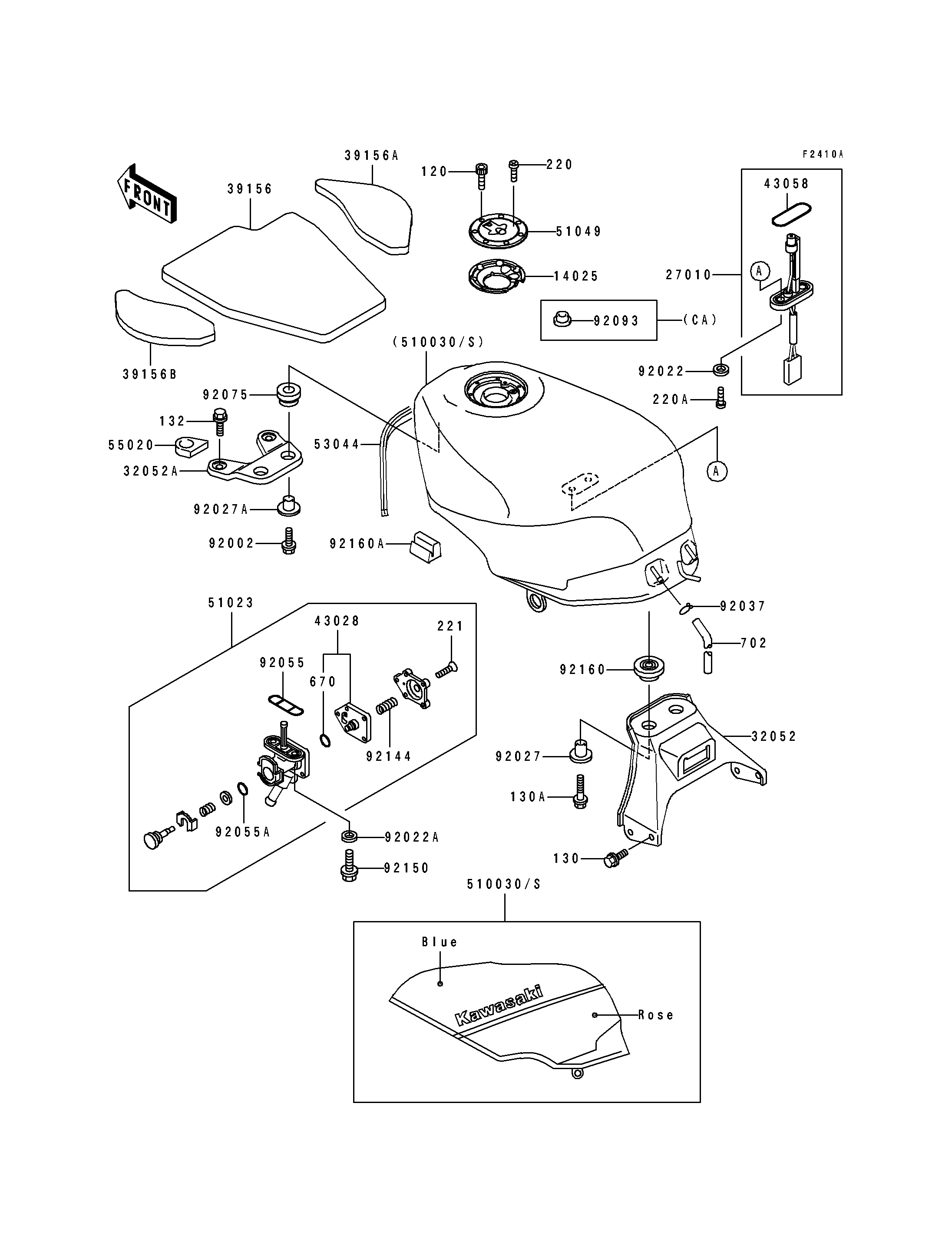

1993 Ninja® ZX™-6 - Fuel Tank(ZX600-D4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,TANK CAP 14025 14025-1913 1
SWITCH,FUEL LEVEL 27010 27010-1096 1
BRACKET-TANK,RR 32052 32052-1302 1
BRACKET-TANK,FR,G.GRAY 32052A 32052-1303-HN 1
PAD,FUEL TANK,CNT 39156 39156-1204 1
PAD,FUEL TANK,RH 39156A 39156-1205 1
PAD,FUEL TANK,LH 39156B 39156-1206 1
DIAPHRAGM,TAP 43028 43028-1068 1
RING,FUEL LEVEL SWITCH 43058 43058-1004 1
TANK-COMP-FUEL,BLUE/ROSE OPERA 51003O 51003-5457-TG 1 US
TANK-COMP-FUEL,BLUE/ROSE OPERA 51003S 51003-5472-TG 1 CA
TAP-ASSY,FUEL 51023 51023-1171 1
CAP-TANK,FUEL 51049 51049-1079 1
TRIM,L=720 53044 53044-1203 1
GUARD,FUEL TANK BRACKET,FR 55020 55020-1402 2
BOLT,6X20 92002 92002-1237 2
WASHER,5.2X10X1.5 92022 92022-1023 2
WASHER,6.2X11X1.5 92022A 92022-183 2
COLLAR,L=16.1 92027 92027-1847 2
COLLAR,L=13.1 92027A 92027-251 2
CLAMP,TUBE 92037 92037-010 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP BOTTOM 92055A 92055-1377 1
DAMPER 92075 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
SPRING,TAP DIAPHRAGM 92144 92144-1119 1
BOLT,FLANGED,6X16 92150 92150-1358 2
DAMPER 92160 92160-1046 2
DAMPER,FUEL TANK 92160A 92160-1197 2
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED 130 130J0610 4
BOLT-FLANGED,6X25 130A 130J0625 2
BOLT-FLANGED-SMALL 132 132G0620 2
SCREW-PAN-CROS 220 220C0508 1
SCREW-PAN-CROS 220A 220X0514 2
SCREW-CSK-CROS,4X14 221 221B0414 5
O RING,4MM 670 670B1504 1
TUBE-RUBBER,7X10X400 702 702A07400 1
