Parts Diagrams

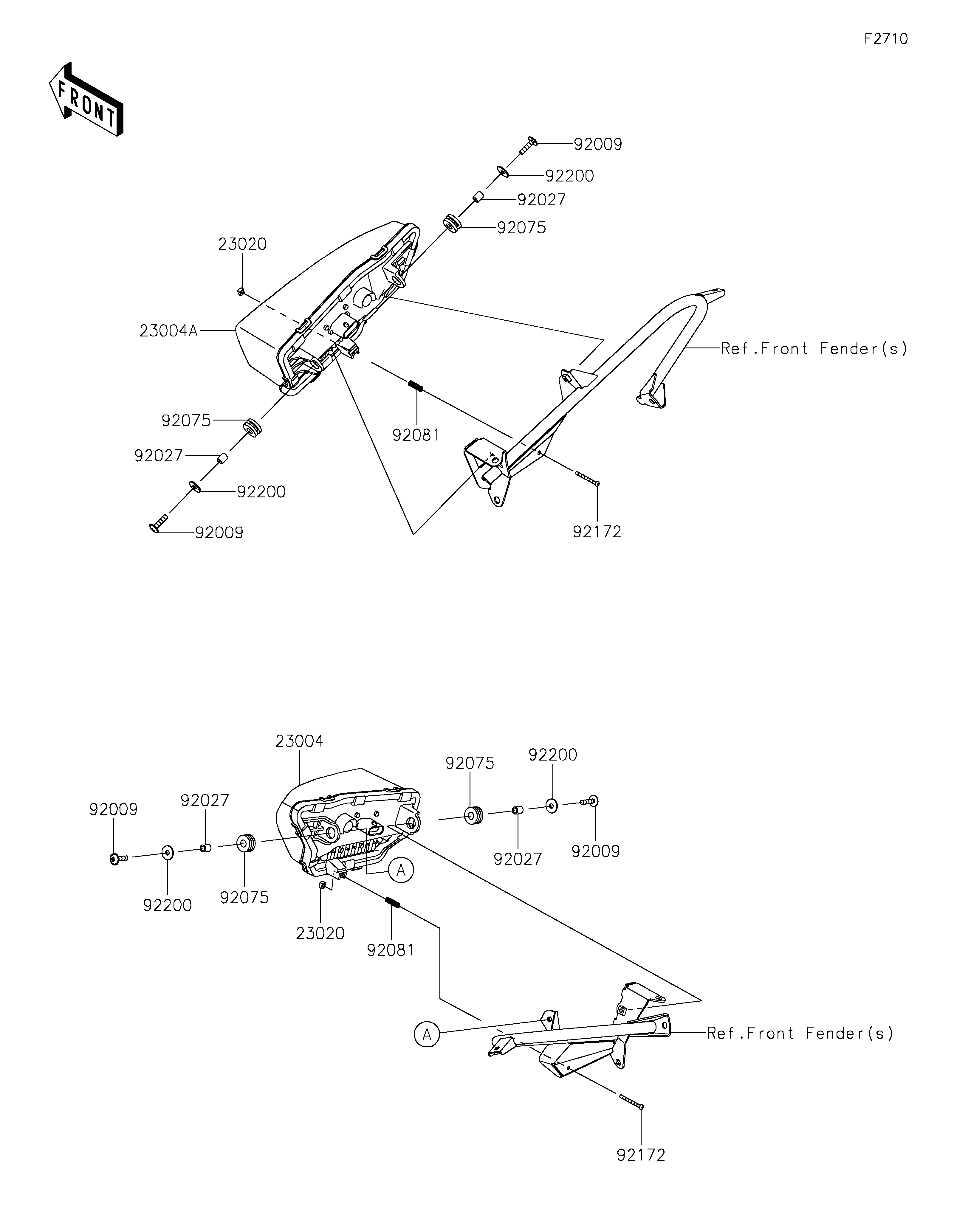

2023 TERYX KRX® 1000 TRAIL EDITION - Headlight(s)

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

23004

23004A

23020

23020

92009

92009

92009

92009

92027

92027

92027

92027

92075

92075

92075

92075

92081

92081

92172

92172

92200

92200

92200

92200

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY	DESTINATION	REMARKS
LAMP-HEAD,LH,LED	23004	23004-0429	1
LAMP-HEAD,RH,LED	23004A	23004-0430	1
NUT,4MM,FOCUS ADJUST	23020	23020-018	2
SCREW,6X25	92009	92009-1465	4
COLLAR,6.8X10X12	92027	92027-162	4
DAMPER,10X24X12	92075	92075-1690	4
SPRING,FOCUS ADJUST	92081	92081-1896	2
SCREW,4X40	92172	92172-1092	2
WASHER,6.5X20X1.6	92200	92200-0283	4
