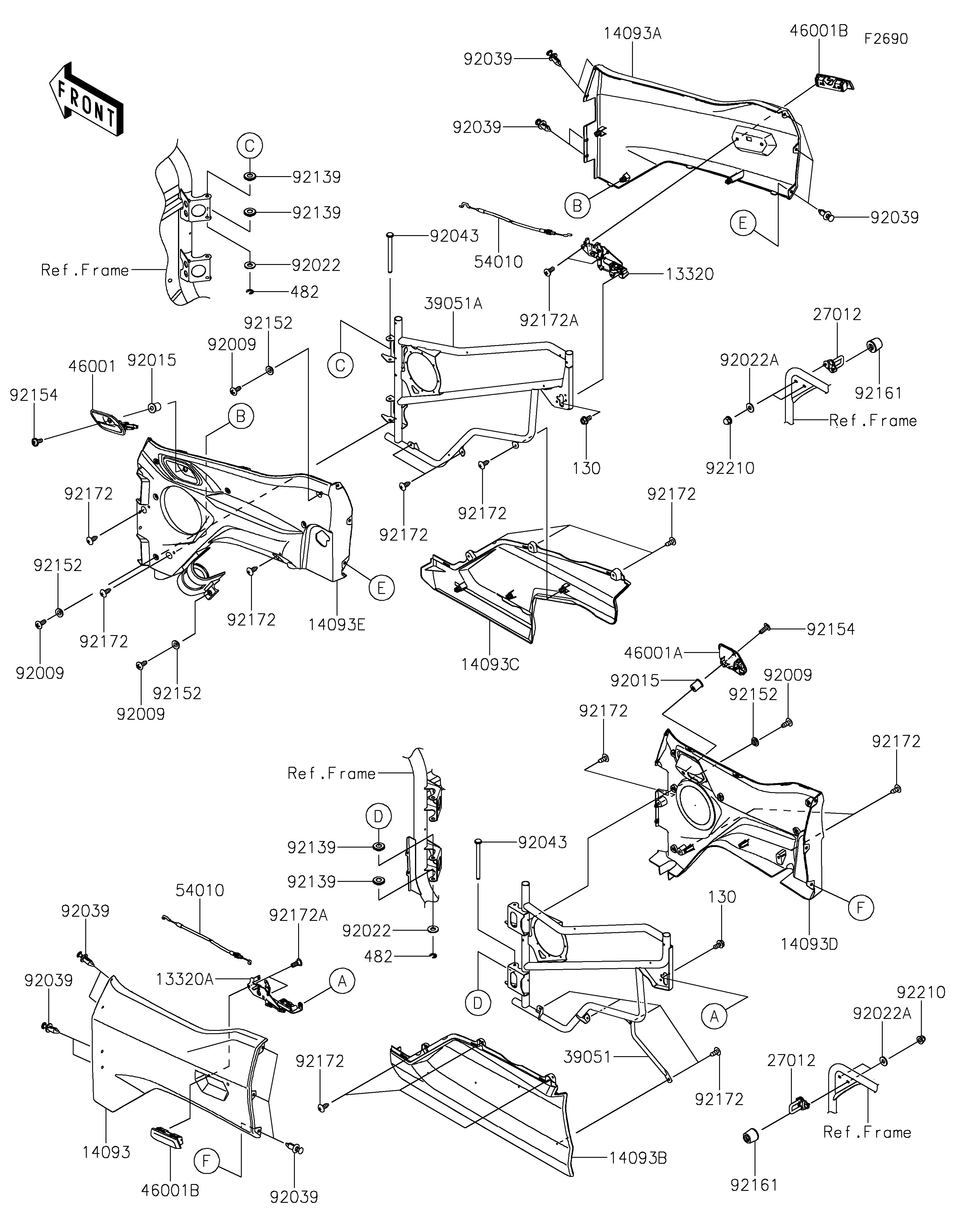

2023 TERYX KRX® 1000 TRAIL EDITION - Door

DOWNLOAD PDF
SELECT A NEW PART
13320
13320A
14093
14093A
14093B
14093C
14093D
14093E
27012
27012
39051
39051A
46001
46001A
46001B
46001B
54010
54010
92009
92009
92009
92009
92015
92015
92022
92022
92022A
92022A
92039
92039
92039
92039
92039
92039
92043
92043
92139
92139
92139
92139
92152
92152
92152
92152
92154
92154
92161
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92210
92210
130
130
482
482
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-ASSY,LATCH,RH 13320 13320-0034 1
LEVER-ASSY,LATCH,LH 13320A 13320-0035 1
COVER,DOOR,LH,UPP,S.BLACK 14093 14093-0814-839 1
COVER,DOOR,RH,UPP,S.BLACK 14093A 14093-0815-839 1
COVER,DOOR,LH,LWR 14093B 14093-0816 1
COVER,DOOR,RH,LWR 14093C 14093-0817 1
COVER,DOOR,LH,INNER 14093D 14093-0851 1
COVER,DOOR,RH,INNER 14093E 14093-0852 1
HOOK,DOOR 27012 27012-0860 2
FRAME-COMP-SIDE,LH 39051 39051-0023 1
FRAME-COMP-SIDE,RH 39051A 39051-0024 1
HANDLE-ASSY,RH,INNER 46001 46001-0015 1
HANDLE-ASSY,LH,INNER 46001A 46001-0016 1
HANDLE-ASSY,OUTER 46001B 46001-0017 2
CABLE 54010 54010-0651 2
SCREW,TAPPING,6X16 92009 92009-1166 13
NUT 92015 92015-1700 2
WASHER,8.2X18X1.5 92022 92022-1964 4
WASHER 92022A 92022-2247 4
RIVET 92039 92039-0776 14
PIN,DOOR 92043 92043-1784 4
BUSHING,DOOR 92139 92139-1215 8
COLLAR,6.3X9.5X4.1 92152 92152-1571 13
BOLT,SOCKET,6X16 92154 92154-4068 2
DAMPER,9X28X24.3 92161 92161-1456 2
SCREW,6X16 92172 92172-0284 19
SCREW,6X16 92172A 92172-1333 4
NUT,CAP,6MM 92210 92210-0003 4
BOLT-FLANGED,6X12 130 130CA0612 4
CIRCLIP-TYPE-E,6MM 482 482J6000 4
