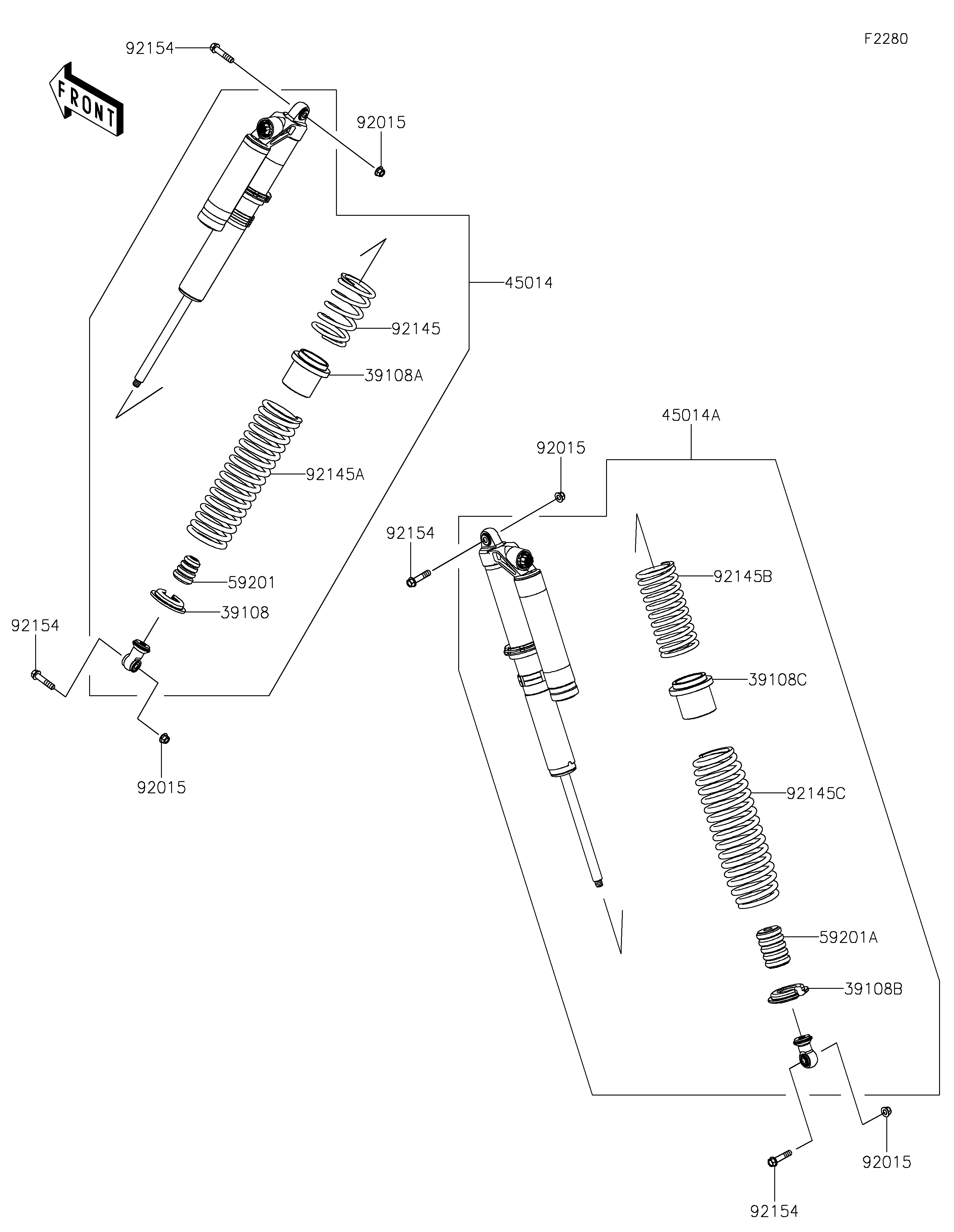

2023 TERYX KRX® 1000 TRAIL EDITION - Shock Absorber(s)
39108
39108A
39108B
39108C
45014
45014A
59201
59201A
92015
92015
92015
92015
92145
92145A
92145B
92145C
92154
92154
92154
92154
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RETAINER-SPRING | 39108 | 39108-0015 | 2 | ||
| RETAINER-SPRING | 39108A | 39108-0016 | 2 | ||
| RETAINER-SPRING | 39108B | 39108-0017 | 2 | ||
| RETAINER-SPRING | 39108C | 39108-0018 | 2 | ||
| SHOCKABSORBER,FR,SILVER | 45014 | 45014-0740-42P | 2 | ||
| SHOCKABSORBER,RR,SILVER | 45014A | 45014-0741-42P | 2 | ||
| BUMPER | 59201 | 59201-0004 | 2 | ||
| BUMPER | 59201A | 59201-0005 | 2 | ||
| NUT,LOCK,FLANGED,12MM | 92015 | 92015-1433 | 8 | ||
| SPRING,TENDER,SILVER | 92145 | 92145-1952-42P | 2 | ||
| SPRING,MAIN,SILVER | 92145A | 92145-1953-42P | 2 | ||
| SPRING,TENDER,SILVER | 92145B | 92145-1954-42P | 2 | ||
| SPRING,MAIN,SILVER | 92145C | 92145-1955-42P | 2 | ||
| BOLT,FLANGED,12X55 | 92154 | 92154-0289 | 8 |
