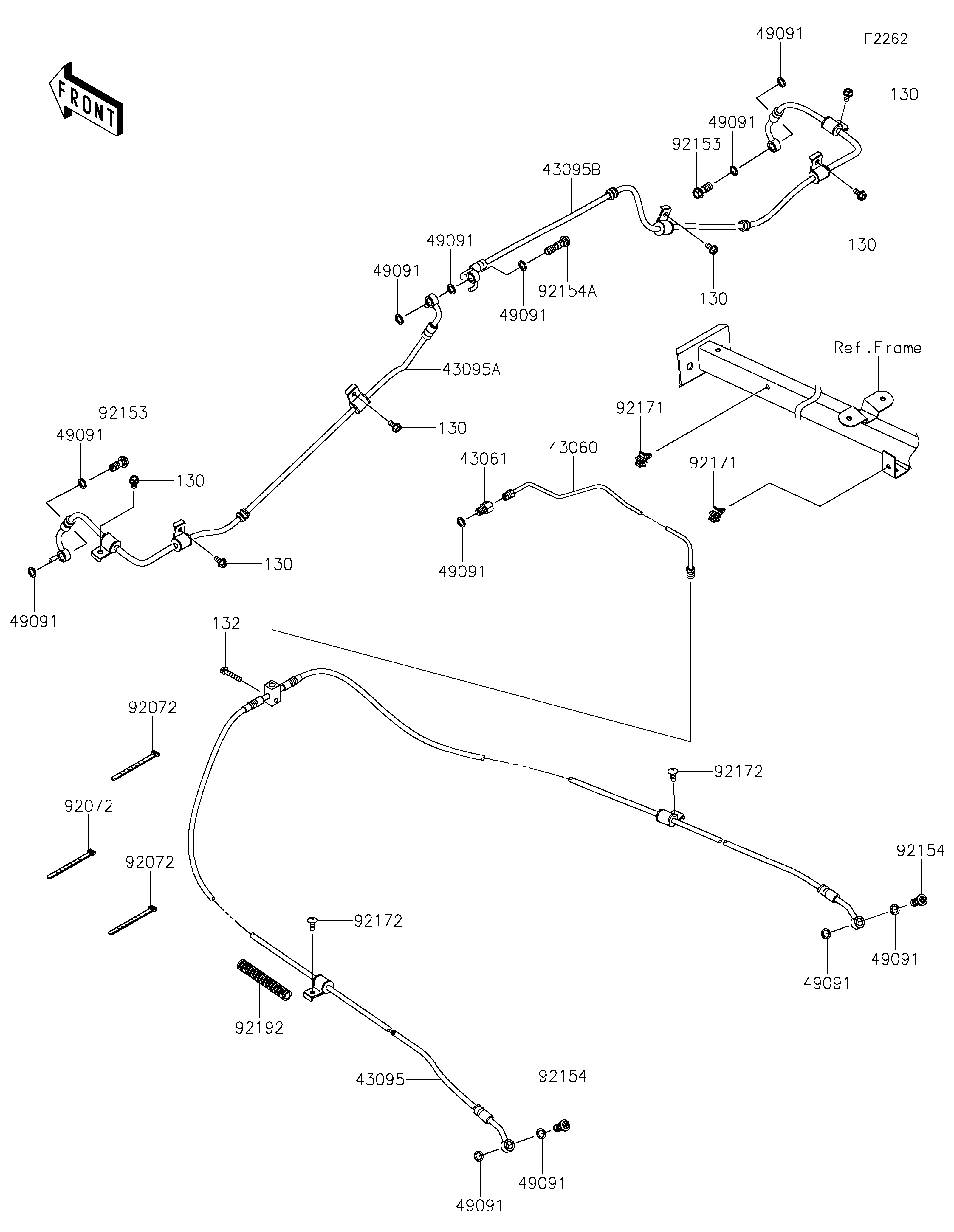

2023 TERYX KRX® 1000 TRAIL EDITION - Brake Piping
43060
43061
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92072
92072
92072
92153
92153
92154
92154
92154A
92171
92171
92172
92172
92192
130
130
130
130
130
130
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIPE-BRAKE | 43060 | 43060-0349 | 1 | ||
| JOINT-BRAKE,M/C | 43061 | 43061-0302 | 1 | ||
| HOSE-BRAKE,RR | 43095 | 43095-1746 | 1 | ||
| HOSE-BRAKE,FR,LH | 43095A | 43095-1776 | 1 | ||
| HOSE-BRAKE,FR,RH | 43095B | 43095-1777 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 12 | ||
| BAND,L=123 | 92072 | 92072-030 | 6 | ||
| BOLT,OIL,L=23 | 92153 | 92153-1419 | 2 | ||
| BOLT,HEXALOBULAR,10X21 | 92154 | 92154-1328 | 2 | ||
| BOLT,OIL,10X34.5 | 92154A | 92154-1398 | 1 | ||
| CLAMP | 92171 | 92171-0805 | 2 | ||
| SCREW,TAPPING,6X16 | 92172 | 92172-0739 | 2 | ||
| TUBE,CORRUGATED,L=100 | 92192 | 92192-3809 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130CA0612 | 6 | ||
| BOLT-FLANGED-SMALL,6X30 | 132 | 132BA0630 | 1 |
| PIPE-BRAKE | |
| REF # | 43060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-BRAKE,M/C | |
| REF # | 43061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,RR | |
| REF # | 43095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,FR,LH | |
| REF # | 43095A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,FR,RH | |
| REF # | 43095B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SEAL,10.1X14.5X1.5 | |
| REF # | 49091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEXALOBULAR,10X21 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,10X34.5 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,CORRUGATED,L=100 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X30 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
