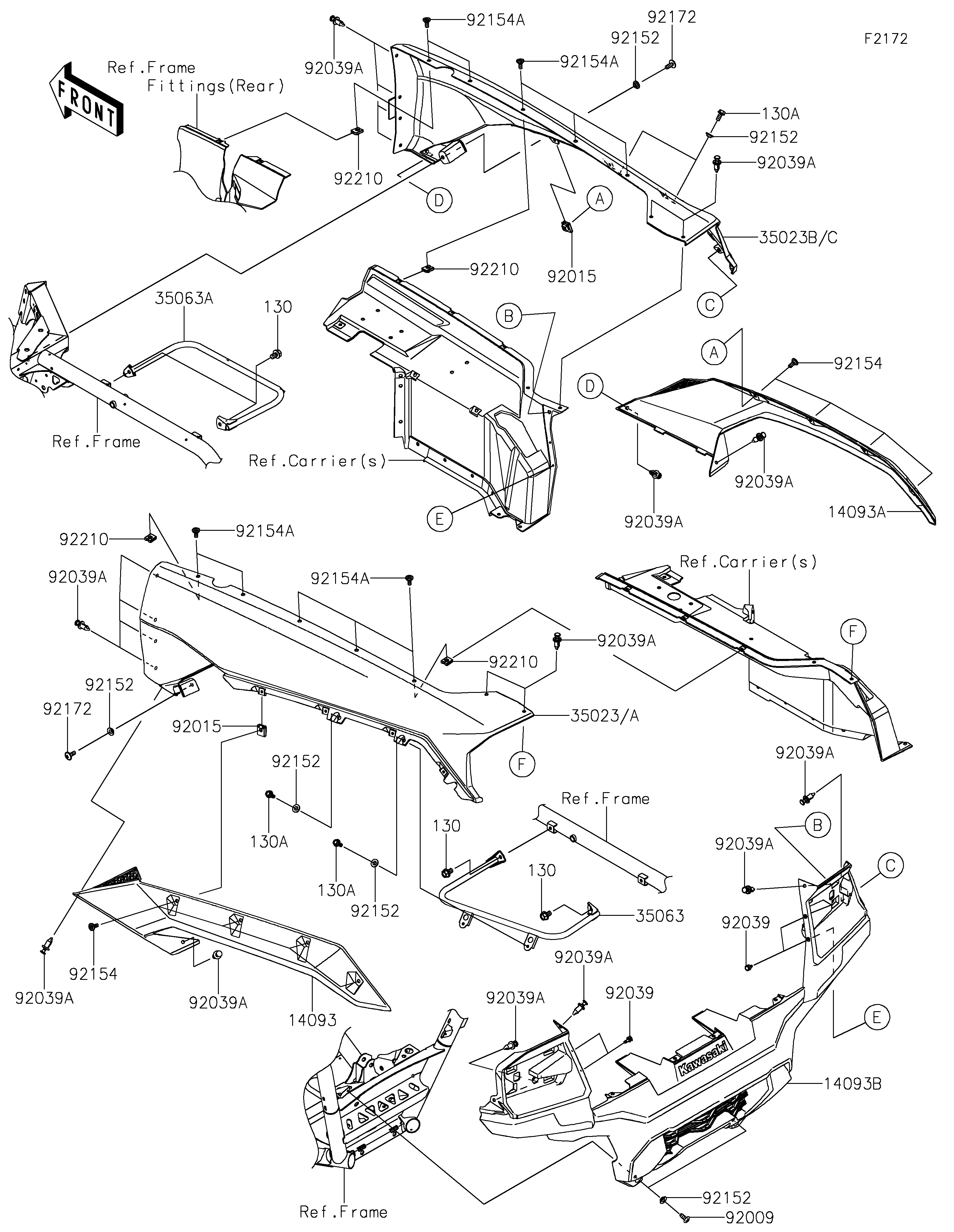

2023 TERYX KRX® 1000 TRAIL EDITION - Rear Fender(s)
14093
14093A
14093B
35023
35023B
35063
35063A
92009
92015
92015
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92152
92152
92152
92152
92152
92152
92154
92154
92154A
92154A
92154A
92154A
92172
92172
92210
92210
92210
92210
130
130
130
130A
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FLAP,LH | 14093 | 14093-0796 | 1 | ||
| COVER,FLAP,RH | 14093A | 14093-0797 | 1 | ||
| COVER,TAIL | 14093B | 14093-0798 | 1 | ||
| FENDER-REAR,LH,F.C.GRAY | 35023 | 35023-0463-66B | 1 | ||
| FENDER-REAR,RH,F.C.GRAY | 35023B | 35023-0464-66B | 1 | ||
| STAY,LH | 35063 | 35063-1462 | 1 | ||
| STAY,RH | 35063A | 35063-1463 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 2 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1678 | 8 | ||
| RIVET | 92039 | 92039-0046 | 4 | ||
| RIVET | 92039A | 92039-0776 | 20 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 8 | ||
| BOLT | 92154 | 92154-2474 | 8 | ||
| BOLT | 92154A | 92154-3957 | 10 | ||
| SCREW,6X16 | 92172 | 92172-0236 | 2 | ||
| NUT | 92210 | 92210-1125 | 10 | ||
| BOLT-FLANGED,8X12 | 130 | 130BA0812 | 4 | ||
| BOLT-FLANGED,6X14 | 130A | 130CA0614 | 4 |
