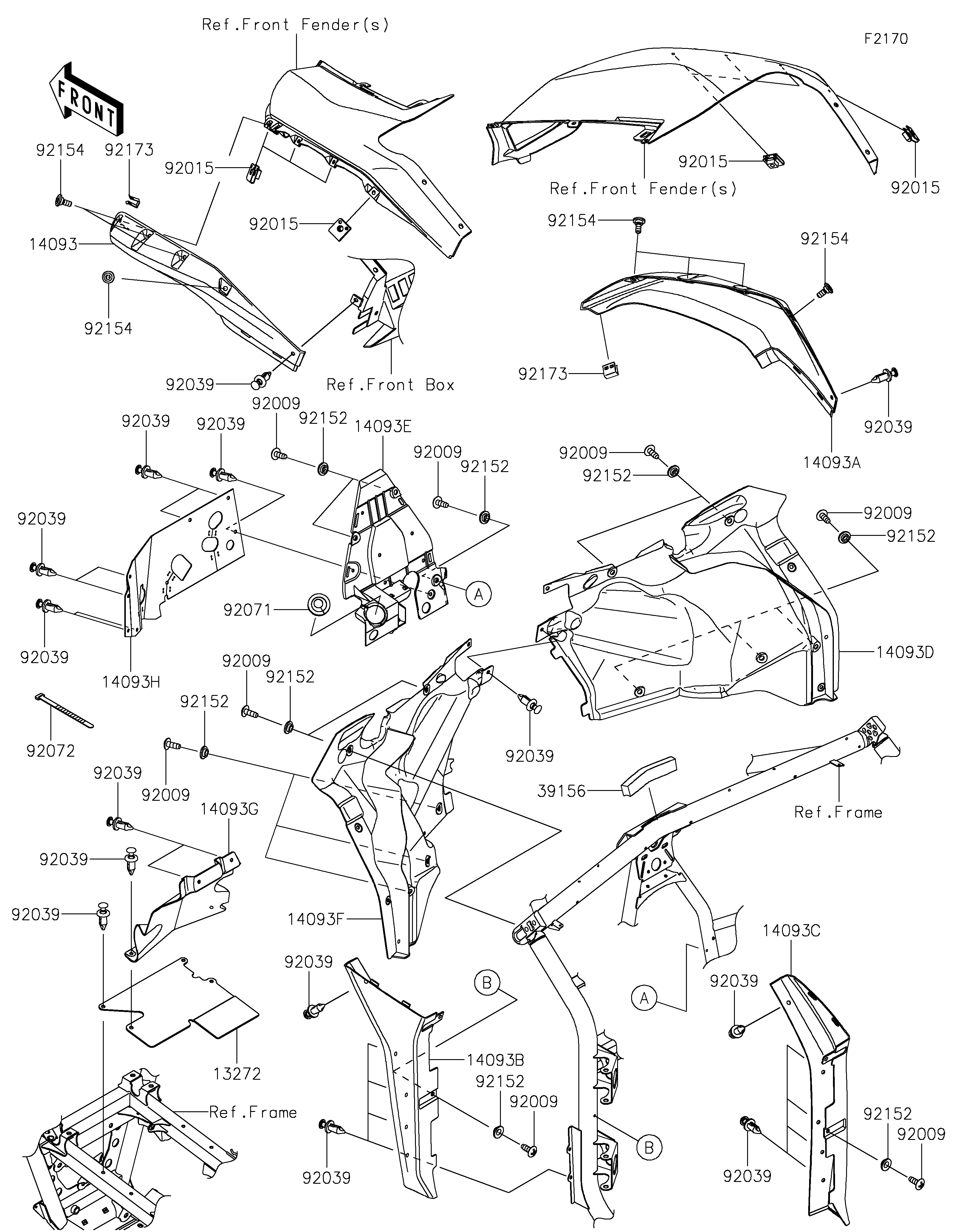

2023 TERYX KRX® 1000 TRAIL EDITION - Fenders
13272
14093
14093A
14093B
14093C
14093D
14093E
14093F
14093G
14093H
39156
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92071
92072
92152
92152
92152
92152
92152
92152
92152
92152
92154
92154
92154
92154
92173
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,FR FRAME | 13272 | 13272-4143 | 1 | ||
| COVER,FLAP,UPP,LH | 14093 | 14093-0806 | 1 | ||
| COVER,FLAP,UPP,RH | 14093A | 14093-0807 | 1 | ||
| COVER,FLAP,LWR,LH | 14093B | 14093-0808 | 1 | ||
| COVER,FLAP,LWR,RH | 14093C | 14093-0809 | 1 | ||
| COVER,FLOOR UPP,RH | 14093D | 14093-0822 | 1 | ||
| COVER,FLOOR UPP,CNT | 14093E | 14093-0823 | 1 | ||
| COVER,FLOOR UPP,LH | 14093F | 14093-0824 | 1 | ||
| COVER,WINDBREAK | 14093G | 14093-1390 | 1 | ||
| COVER,RUBBER | 14093H | 14093-1455 | 1 | ||
| PAD,20X170X30 | 39156 | 39156-2436 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 15 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1678 | 8 | ||
| RIVET | 92039 | 92039-0776 | 26 | ||
| GROMMET | 92071 | 92071-0830 | 1 | ||
| BAND,L=123 | 92072 | 92072-030 | 5 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 15 | ||
| BOLT | 92154 | 92154-2474 | 8 | ||
| CLAMP | 92173 | 92173-2249 | 2 |
| PLATE,FR FRAME | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLAP,UPP,LH | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLAP,UPP,RH | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLAP,LWR,LH | |
| REF # | 14093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLAP,LWR,RH | |
| REF # | 14093C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR UPP,RH | |
| REF # | 14093D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR UPP,CNT | |
| REF # | 14093E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR UPP,LH | |
| REF # | 14093F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,WINDBREAK | |
| REF # | 14093G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RUBBER | |
| REF # | 14093H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,20X170X30 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 26 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
