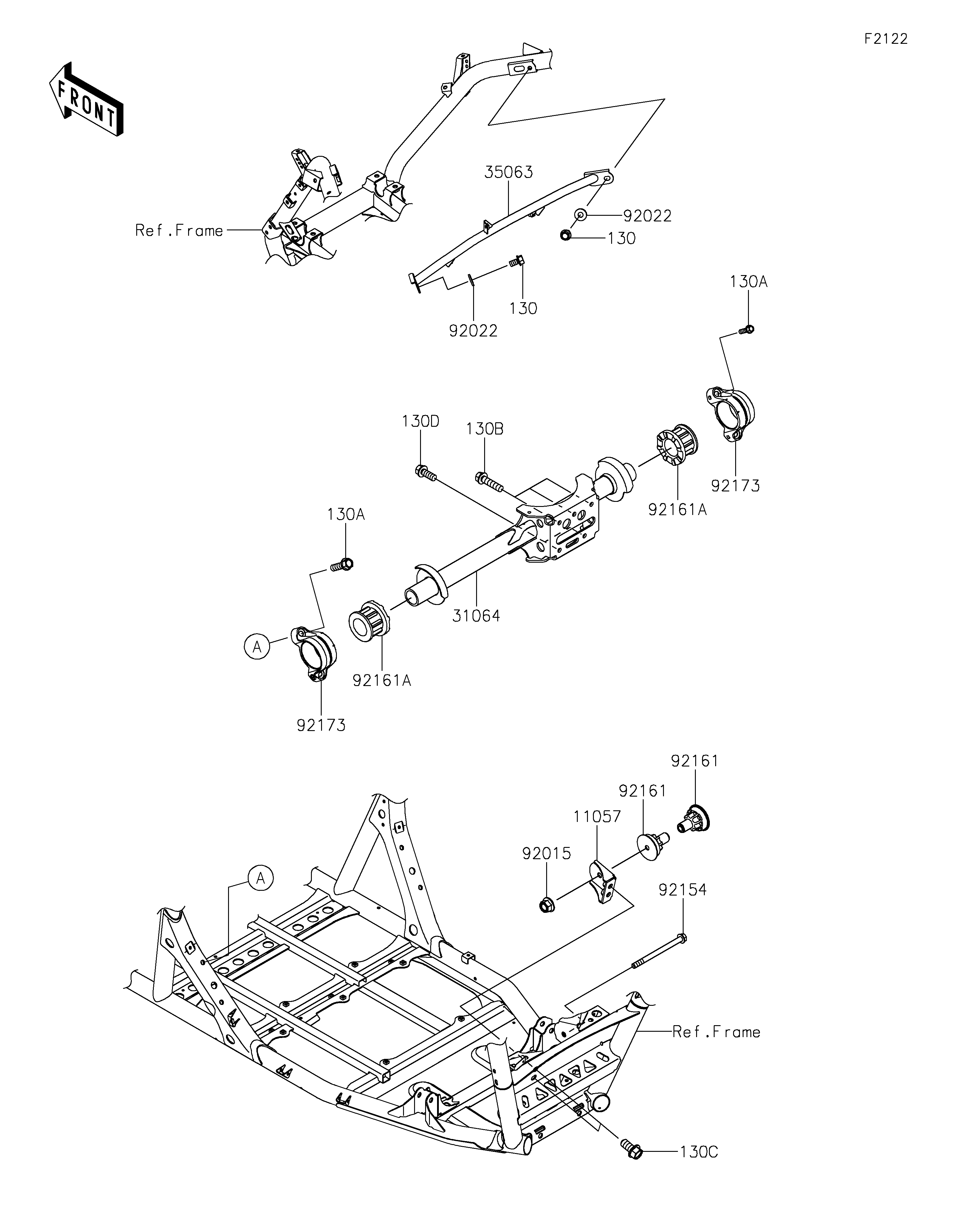

2023 TERYX KRX® 1000 TRAIL EDITION - Engine Mount
11057
31064
35063
92015
92022
92022
92154
92161
92161
92161A
92161A
92173
92173
130
130
130A
130A
130B
130C
130D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RR | 11057 | 11057-2103 | 1 | ||
| PIPE-COMP,FR | 31064 | 31064-0732 | 1 | ||
| STAY,UPP | 35063 | 35063-1466 | 1 | ||
| NUT,LOCK,FLANGED,12MM | 92015 | 92015-1433 | 1 | ||
| WASHER,8.2X19X2 | 92022 | 92022-1533 | 2 | ||
| BOLT,FLANGED,12X160 | 92154 | 92154-3916 | 1 | ||
| DAMPER | 92161 | 92161-2171 | 2 | ||
| DAMPER | 92161A | 92161-2205 | 2 | ||
| CLAMP | 92173 | 92173-2399 | 2 | ||
| BOLT-FLANGED,8X14 | 130 | 130BA0814 | 2 | ||
| BOLT-FLANGED,10X35 | 130A | 130CA1035 | 4 | ||
| BOLT-FLANGED,10X40 | 130B | 130CA1040 | 3 | ||
| BOLT-FLANGED,12X25 | 130C | 130CA1225 | 2 | ||
| BOLT-FLANGED,10X25 | 130D | 130CB1025 | 2 |
| BRACKET,RR | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,FR | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,UPP | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,12MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X19X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X160 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X35 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X40 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,12X25 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X25 | |
| REF # | 130D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
