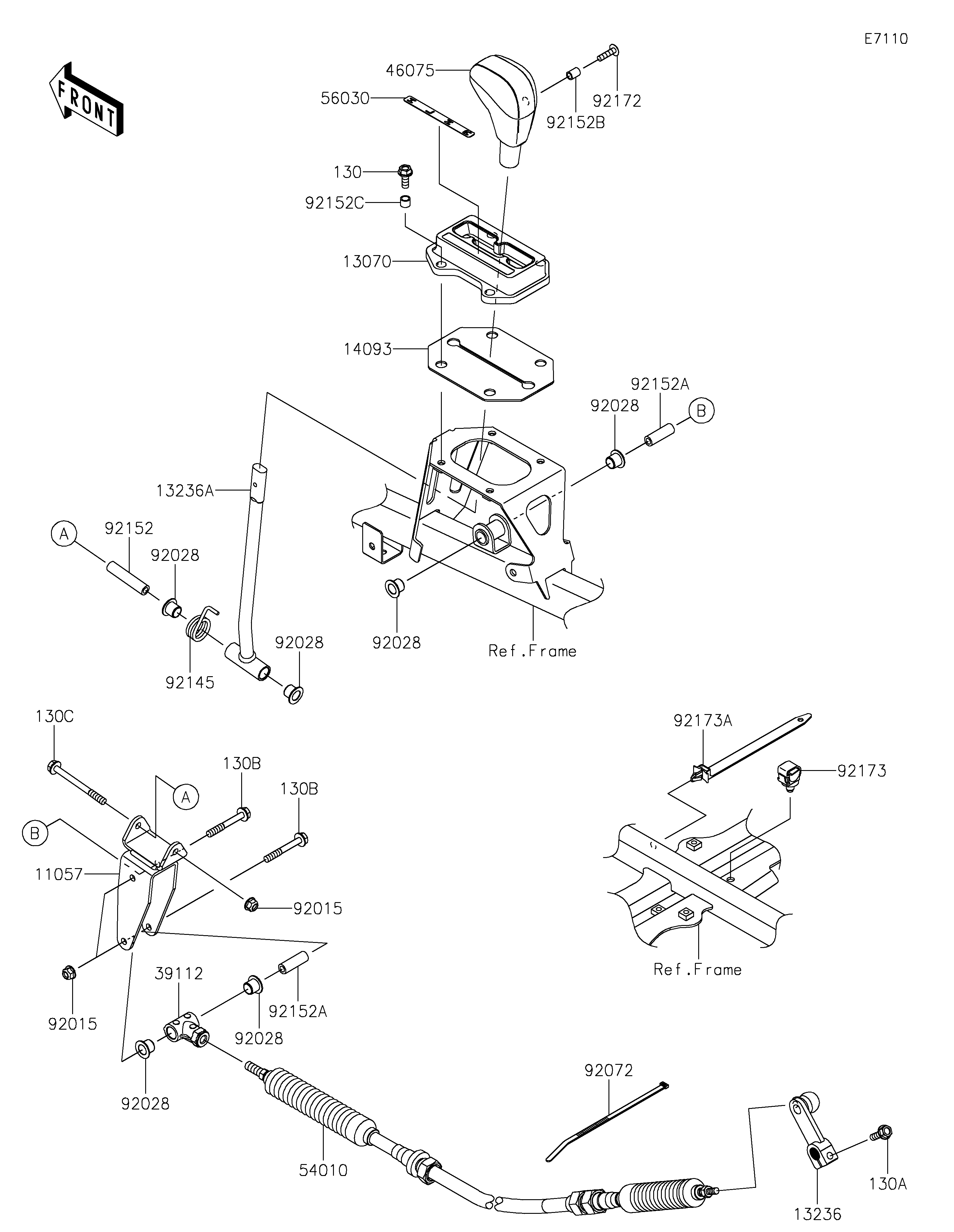

2023 TERYX KRX® 1000 TRAIL EDITION - Control

DOWNLOAD PDF
SELECT A NEW PART
11057
13070
13236
13236A
14093
39112
46075
54010
56030
92015
92015
92028
92028
92028
92028
92028
92028
92072
92145
92152
92152A
92152A
92152B
92152C
92172
92173
92173A
130
130A
130B
130B
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LEVER 11057 11057-7665 1
GUIDE 13070 13070-0894 1
LEVER-COMP,CHANGE LEVER 13236 13236-0708 1
LEVER-COMP 13236A 13236-0817 1
COVER,HEAT GUARD 14093 14093-1245 1
RODEND-TIE 39112 39112-0036 1
GRIP 46075 46075-0569 1
CABLE 54010 54010-0629 1
LABEL,POSITION 56030 56030-1421 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 3
BUSHING 92028 92028-1507 6
BAND,L=292.1 92072 92072-3509 1
SPRING 92145 92145-1839 1
COLLAR,6.0X10X47 92152 92152-1517 1
COLLAR,6.0X10X30 92152A 92152-1518 2
COLLAR,5.6X8X10.5 92152B 92152-1545 1
COLLAR,6.8X9.2X8.8 92152C 92152-2863 4
SCREW,5X20 92172 92172-2081 1
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP 92173A 92173-1980 1
BOLT-FLANGED,6X18 130 130BB0618 4
BOLT-FLANGED,6X20 130A 130CA0620 1
BOLT-FLANGED,6X45 130B 130CA0645 2
BOLT-FLANGED,6X65 130C 130CA0665 1
