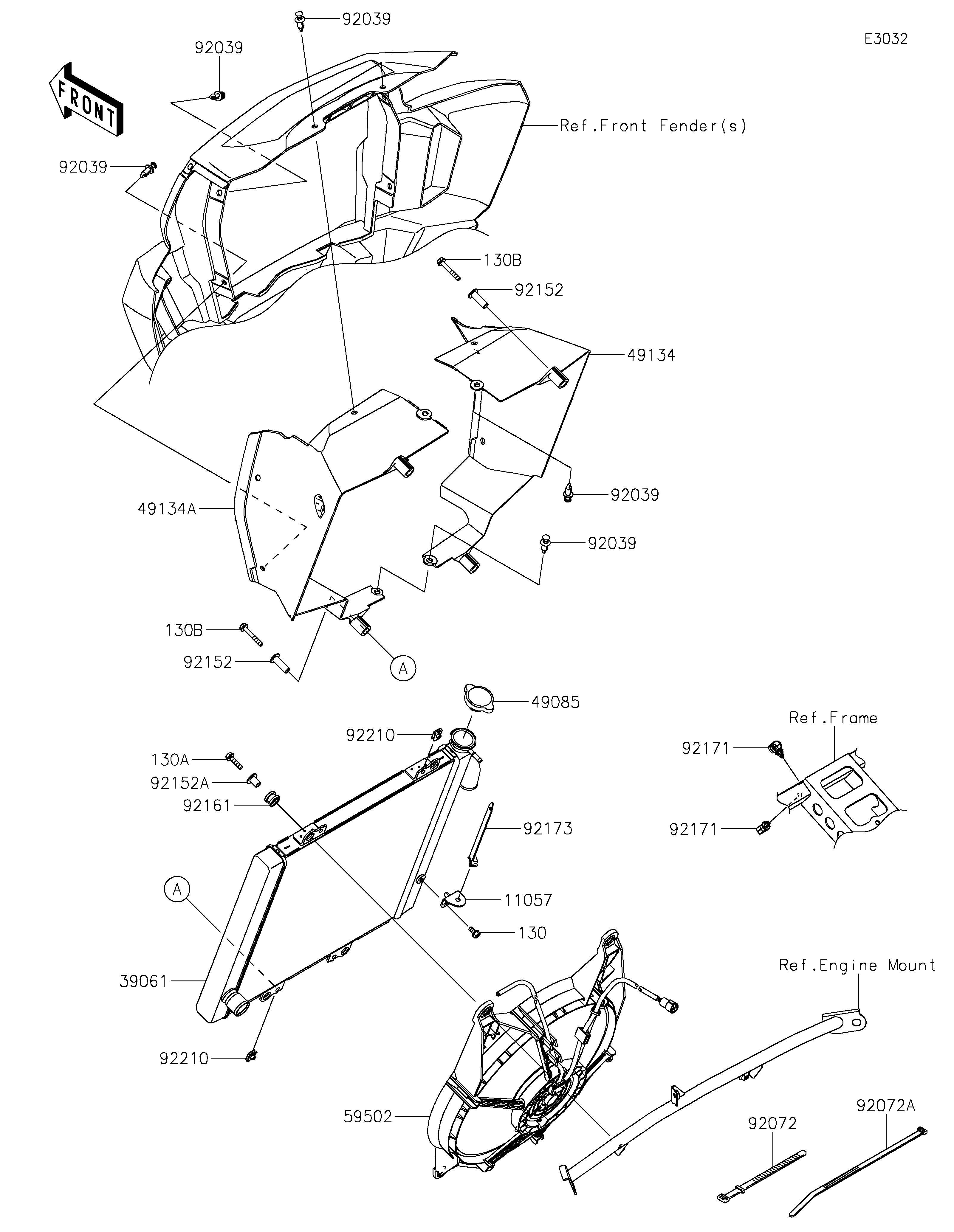

2023 TERYX KRX® 1000 TRAIL EDITION - Radiator
11057
39061
49085
49134
49134A
59502
92039
92039
92039
92039
92039
92072
92072A
92152
92152
92152A
92161
92171
92171
92173
92210
92210
130
130A
130B
130B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-2564 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0786 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0005 | 1 | ||
| SHROUD,RH | 49134 | 49134-0001 | 1 | ||
| SHROUD,LH | 49134A | 49134-0002 | 1 | ||
| FAN-ASSY | 59502 | 59502-0644 | 1 | ||
| RIVET | 92039 | 92039-0776 | 8 | ||
| BAND,L=186 | 92072 | 92072-056 | 3 | ||
| BAND,L=292.1 | 92072A | 92072-3509 | 2 | ||
| COLLAR | 92152 | 92152-1215 | 4 | ||
| COLLAR | 92152A | 92152-1512 | 4 | ||
| DAMPER | 92161 | 92161-1349 | 4 | ||
| CLAMP,13MM DIA. | 92171 | 92171-1415 | 2 | ||
| CLAMP | 92173 | 92173-1980 | 1 | ||
| NUT | 92210 | 92210-0754 | 4 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 1 | ||
| BOLT-FLANGED,6X25 | 130A | 130BA0625 | 4 | ||
| BOLT-FLANGED,6X40 | 130B | 130BA0640 | 4 |
| BRACKET | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD,RH | |
| REF # | 49134 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD,LH | |
| REF # | 49134A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BAND,L=186 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND,L=292.1 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,13MM DIA. | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X40 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
