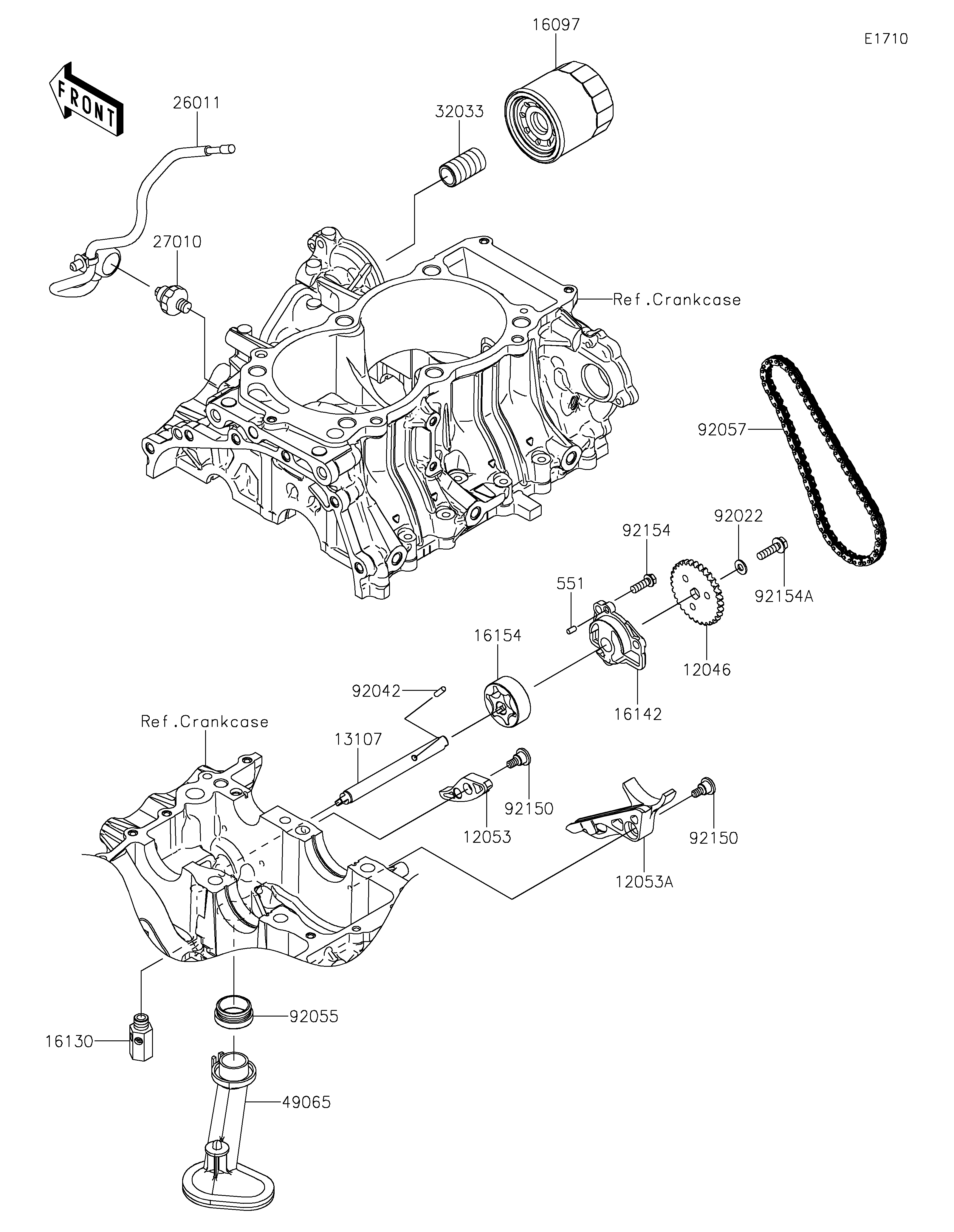

2023 TERYX KRX® 1000 TRAIL EDITION - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
12046
12053
12053A
13107
16097
16130
16142
16154
26011
27010
32033
49065
92022
92042
92055
92057
92150
92150
92154
92154A
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,OIL PUMP,31T 12046 12046-0614 1
GUIDE-CHAIN,UPP 12053 12053-0276 1
GUIDE-CHAIN,LWR 12053A 12053-0296 1
SHAFT,OIL PUMP 13107 13107-0896 1
FILTER-ASSY-OIL 16097 16097-0007 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
COVER-PUMP 16142 16142-0754 1
ROTOR-PUMP 16154 16154-0750 1
WIRE-LEAD 26011 26011-1985 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,OIL FILTER 32033 32033-1535 1
FILTER-OIL 49065 49065-0050 1
WASHER,6X12.8X1.2 92022 92022-1827 1
PIN,DOWEL,4X13.8 92042 92042-030 1
RING-O,OIL FILTER 92055 92055-1503 1
CHAIN,98XRH2010-70M 92057 92057-0765 1
BOLT,6MM 92150 92150-1090 2
BOLT,FLANGED,6X18 92154 92154-0499 3
BOLT,FLANGED,6X22 92154A 92154-1525 1
PIN-DOWEL,4X8 551 551A0408 1
