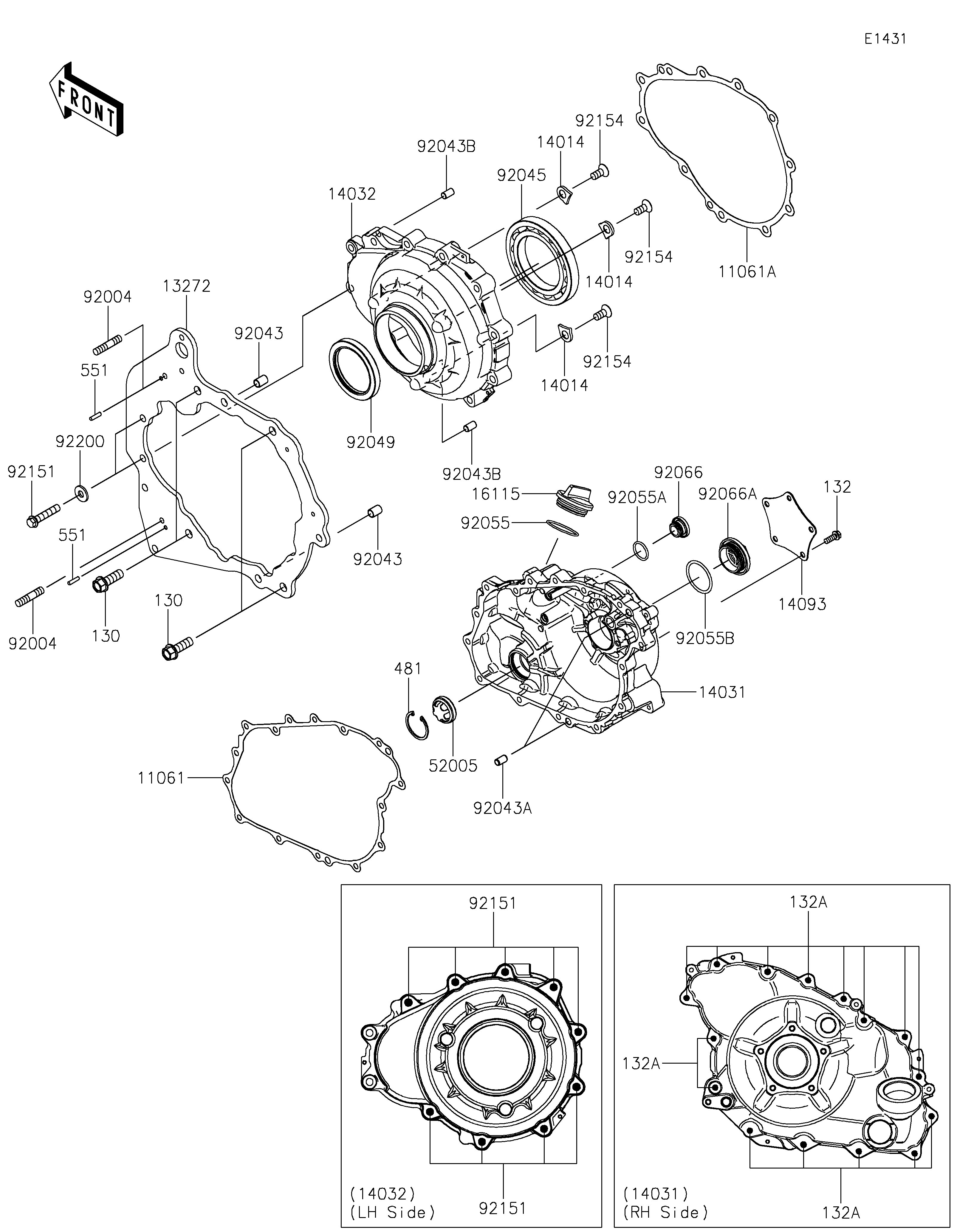

2023 TERYX KRX® 1000 TRAIL EDITION - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
13272
14014
14014
14014
14031
14032
14093
16115
52005
92004
92004
92043
92043
92043A
92043B
92043B
92045
92049
92055
92055A
92055B
92066
92066A
92151
92151
92151
92154
92154
92154
92200
130
130
132
132A
132A
132A
481
551
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVER 11061 11061-1304 1
GASKET,CLUTCH COVER 11061A 11061-1305 1
PLATE,CLUTCH COVER,BACK 13272 13272-2799 1
PLATE-POSITION 14014 14014-0556 3
COVER-GENERATOR 14031 14031-0639 1
COVER-CLUTCH 14032 14032-0646 1
COVER,GENERATOR,OUTER 14093 14093-0794 1
CAP-OIL FILLER 16115 16115-1064 1
GAUGE,OIL 52005 52005-0766 1
STUD,8X30 92004 92004-0790 2
PIN,DOWEL,10X14 92043 92043-1037 2
PIN,6.2X8X14 92043A 92043-1263 2
PIN,8X14 92043B 92043-1567 2
BEARING-BALL,16014CS45 92045 92045-0709 1
SEAL-OIL,HTC 59X77X9 92049 92049-0820 1
RING-O,37.2X1.9 92055 92055-0959 1
RING-O,20X2 92055A 92055-1146 1
RING-O,35.8MM 92055B 92055-1281 1
PLUG,COVER 92066 92066-0011 1
PLUG,36X7.5 92066A 92066-0744 1
BOLT,8X40 92151 92151-1621 11
BOLT,FLAT,8X13.6 92154 92154-0978 3
WASHER,8.5X18X2.3 92200 92200-1213 2
BOLT-FLANGED,10X30 130 130BA1030 4
BOLT-FLANGED-SMALL,6X16 132 132BA0616 5
BOLT-FLANGED-SMALL,6X30 132A 132BA0630 15
CIRCLIP 481 481J3400 1
PIN-DOWEL,4X16 551 551A0416 2
