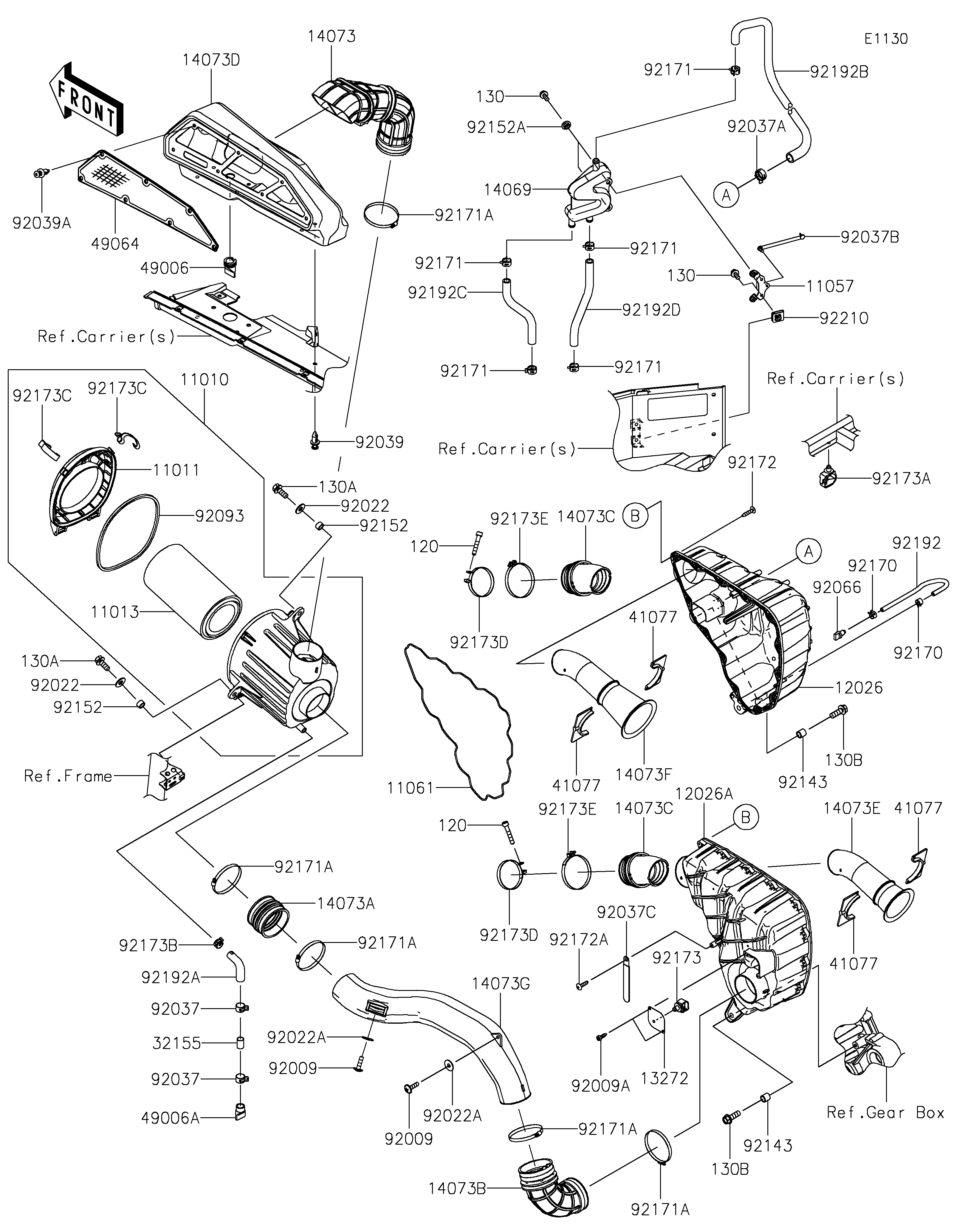

2023 TERYX KRX® 1000 TRAIL EDITION - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11010
11011
11011
11013
11013
11057
11057
11061
11061
12026
12026
12026A
12026A
13272
13272
14069
14069
14073
14073
14073A
14073A
14073B
14073B
14073C
14073C
14073C
14073C
14073D
14073D
14073E
14073E
14073F
14073F
14073G
14073G
32155
32155
41077
41077
41077
41077
41077
41077
41077
41077
49006
49006
49006A
49006A
49064
49064
92009
92009
92009
92009
92009A
92009A
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037C
92037C
92039
92039
92039A
92039A
92066
92066
92093
92093
92143
92143
92143
92143
92152
92152
92152
92152
92152A
92152A
92170
92170
92170
92170
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92172
92172
92172A
92172A
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
92173C
92173C
92173D
92173D
92173D
92173D
92173E
92173E
92173E
92173E
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
92210
92210
120
120
120
120
130
130
130
130
130A
130A
130A
130A
130B
130B
130B
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0900 1
CASE-AIR FILTER,UPP 11011 11011-0905 1
ELEMENT-AIR FILTER 11013 11013-0782 1
BRACKET,BREATHER 11057 11057-2431 1
GASKET,CHAMBER 11061 11061-1312 1
CHAMBER,RH 12026 12026-0019 1
CHAMBER,LH 12026A 12026-0020 1
PLATE,TEMP SENSOR 13272 13272-2711 1
BREATHER 14069 14069-0032 1
DUCT,INTAKE,DIRTYSIDE 14073 14073-0922 1
DUCT,A/F CASE 14073A 14073-0923 1
DUCT,CHAMBER 14073B 14073-0925 1
DUCT,CHAMBER-THROTTLE 14073C 14073-0931 2
DUCT,INTAKE,DIRTYSIDE BOX 14073D 14073-0954 1
DUCT,INTAKE,#1 CYLINDER 14073E 14073-0956 1
DUCT,INTAKE,#2 CYLINDER 14073F 14073-0957 1
DUCT,A/F CASE-CHAMBER 14073G 14073-0963 1
PIPE,DRAIN 32155 32155-4087 1
ADAPTER 41077 41077-0737 4
BOOT 49006 49006-0633 1
BOOT 49006A 49006-1292 1
FILTER-AIR 49064 49064-0012 1
SCREW,6X22 92009 92009-1441 2
SCREW,TAPPING,5X16 92009A 92009-1984 2
WASHER,8.5X20X1.6 92022 92022-1561 2
WASHER,PLAIN,6.5X20X1 92022A 92022-165 2
CLAMP,HOSE CLIP 92037 92037-1460 2
CLAMP 92037A 92037-1594 1
CLAMP,SPEED,L=80.5 92037B 92037-1903 1
CLAMP 92037C 92037-1993 1
RIVET 92039 92039-0776 6
RIVET,TWO-PIECE CLIP 92039A 92039-0818 7
PLUG,DRAIN 92066 92066-0782 1
SEAL,AIR FILTER CASE 92093 92093-0726 1
COLLAR,8.8X12X11.5 92143 92143-1340 3
COLLAR,8.8X12.3X6.9 92152 92152-1853 2
COLLAR,6.5X10X5.3 92152A 92152-1863 2
CLAMP 92170 92170-2042 2
CLAMP 92171 92171-0329 5
CLAMP 92171A 92171-1383 5
SCREW,TAPPING,5X25 92172 92172-0432 13
SCREW,TAPPING,5X20 92172A 92172-0483 1
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP 92173A 92173-0861 1
CLAMP 92173B 92173-1463 1
CLAMP,AIR FILTER CASE 92173C 92173-2023 2
CLAMP,74MM 92173D 92173-2219 2
CLAMP,88MM 92173E 92173-2256 2
TUBE,7X10X310 92192 92192-1955 1
TUBE,DRAIN 92192A 92192-2312 1
TUBE,BREATHER-CHAMBER 92192B 92192-2337 1
TUBE,CYL.HEAD,RH-BREATHER,LH 92192C 92192-2338 1
TUBE,CYL.HEAD,LH-BREATHER,RH 92192D 92192-2339 1
NUT,CLIP,6MM 92210 92210-1768 2
BOLT-SOCKET,6X35 120 120CA0635 2
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,8X20 130A 130BA0820 2
BOLT-FLANGED,8X25 130B 130BA0825 3
