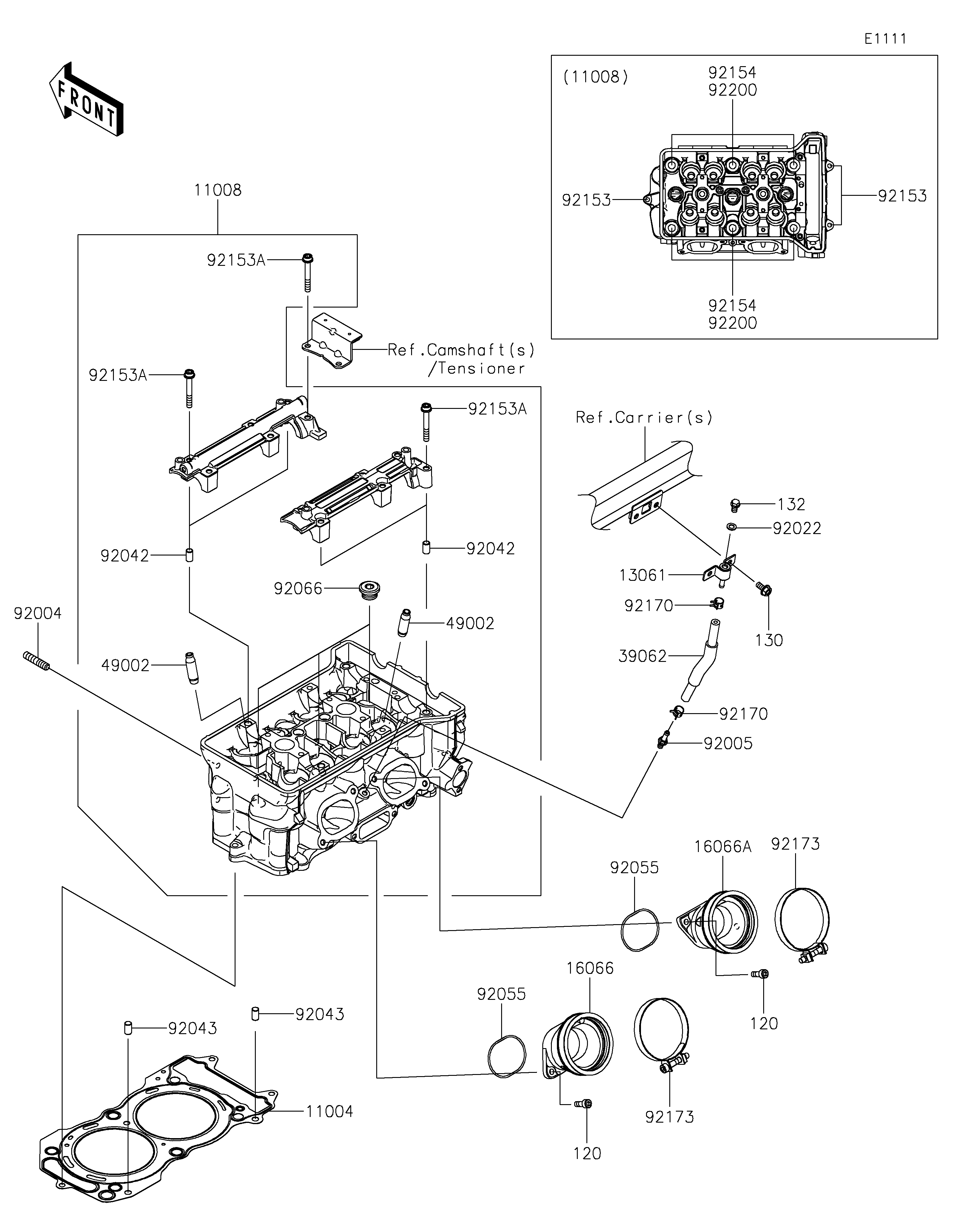

2023 TERYX KRX® 1000 TRAIL EDITION - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
13061
16066
16066A
39062
49002
49002
92004
92005
92022
92042
92042
92043
92043
92055
92055
92066
92153
92153
92153A
92153A
92153A
92154
92154
92170
92170
92173
92173
92200
92200
120
120
130
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0785 1
HEAD-COMP-CYLINDER 11008 11008-1461 1
BOSS 13061 13061-0977 1
HOLDER-THROTTLE BODY,#1 16066 16066-0015 1
HOLDER-THROTTLE BODY,#2 16066A 16066-0016 1
HOSE-COOLING,CYL.HEAD-AIR VENT 39062 39062-0862 1
GUIDE-VALVE 49002 49002-0709 8
STUD,8X22 92004 92004-1217 8
FITTING 92005 92005-0826 1
WASHER,6.2X11X1 92022 92022-304 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,8X14 92043 92043-1567 2
RING-O,49.7X1.9 92055 92055-0930 2
PLUG,18X10 92066 92066-0832 3
BOLT,6X95 92153 92153-0320 3
BOLT,SOCKET,6X45 92153A 92153-0656 12
BOLT,11X157 92154 92154-3931 6
CLAMP 92170 92170-1493 2
CLAMP,72MM 92173 92173-2025 2
WASHER,11.5X20.5X3.2 92200 92200-0727 6
BOLT-SOCKET,6X18 120 120CA0618 4
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
