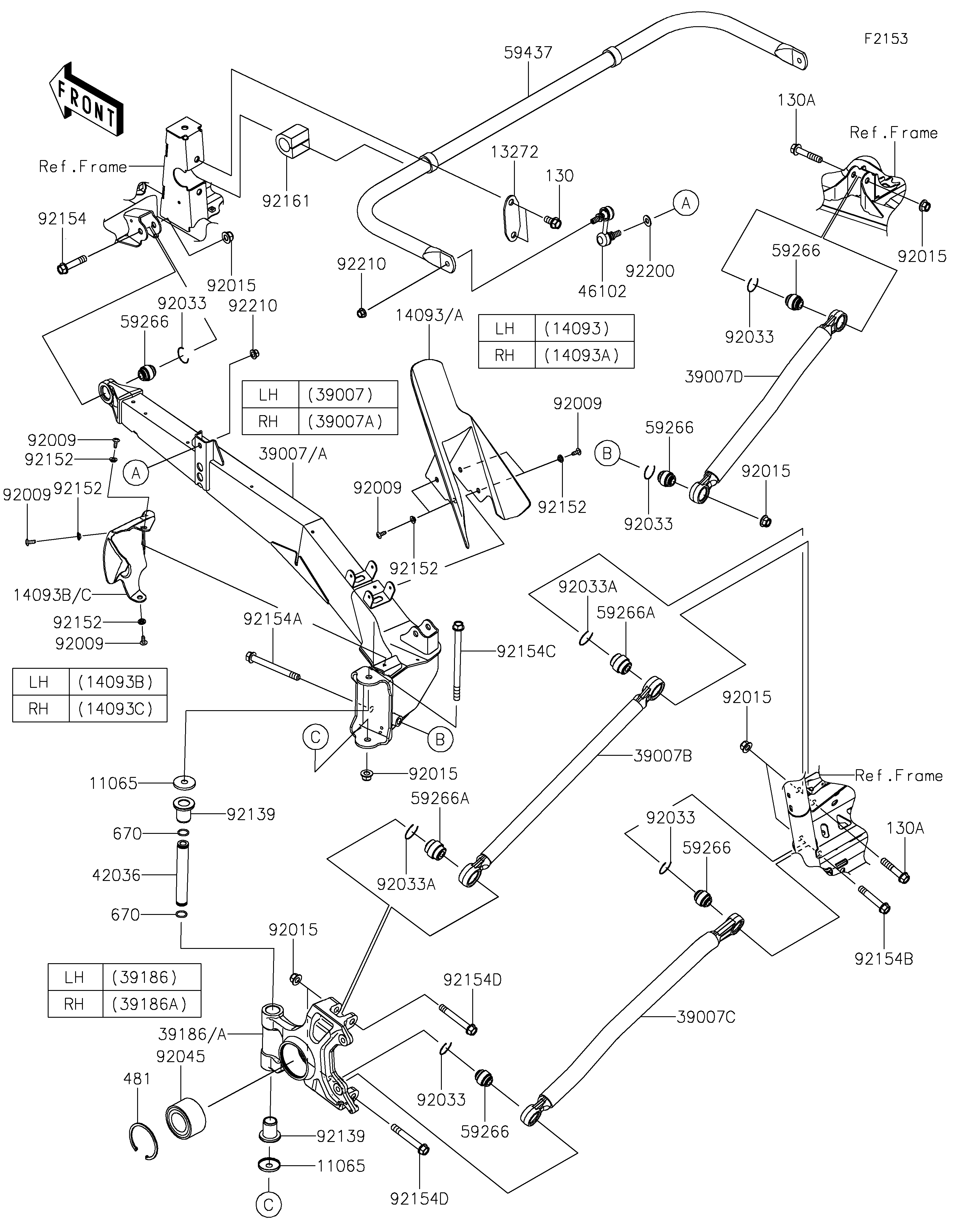

2022 TERYX KRX® 1000 TRAIL EDITION - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13272
14093
14093A
14093B
14093C
39007
39007A
39007B
39007C
39007D
39186
39186A
42036
46102
59266
59266
59266
59266
59266
59266A
59266A
59437
92009
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92033
92033
92033
92033
92033
92033A
92033A
92045
92139
92139
92152
92152
92152
92152
92152
92154
92154A
92154B
92154C
92154D
92154D
92161
92200
92210
92210
130
130A
130A
481
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-1305 4
PLATE 13272 13272-2728 2
COVER,RR SHOCK,LH 14093 14093-0955 1
COVER,RR SHOCK,RH 14093A 14093-0956 1
COVER,TRAILING ARM,LH 14093B 14093-0994 1
COVER,TRAILING ARM,RH 14093C 14093-0995 1
ARM-SUSP,TRAILING,LH,P.P.N.YEL 39007 39007-0468-66P 1
ARM-SUSP,TRAILING,RH,P.P.N.YEL 39007A 39007-0469-66P 1
ARM-SUSP,CONTROL,RR,UPP,YELLOW 39007B 39007-0470-66P 2
ARM-SUSP,CONTROL,RR,LWR,YELLOW 39007C 39007-0471-66P 2
ARM-SUSP,CONTROL,FR,P.P.N.YEL 39007D 39007-0472-66P 2
KNUCKLE,RR,LH 39186 39186-0325 1
KNUCKLE,RR,RH 39186A 39186-0326 1
SLEEVE,12.1X22X147 42036 42036-0837 2
ROD,STABILIZER 46102 46102-0638 2
JOINT-BALL 59266 59266-0747 10
JOINT-BALL 59266A 59266-0748 4
STABILIZER,RR 59437 59437-0024 1
SCREW,TAPPING,6X16 92009 92009-1166 14
NUT,LOCK,FLANGED,12MM 92015 92015-1433 16
RING-SNAP 92033 92033-0802 10
RING-SNAP 92033A 92033-0803 4
BEARING-BALL,40X74X42 92045 92045-0920 2
BUSHING 92139 92139-0938 4
COLLAR,6.3X9.5X4.1 92152 92152-1571 14
BOLT,FLANGED,12X55 92154 92154-0289 2
BOLT,FLANGED,12X117 92154A 92154-0867 2
BOLT,FLANGED,12X68 92154B 92154-3927 2
BOLT,FLANGED,12X175 92154C 92154-3928 2
BOLT,FLANGED,12X86 92154D 92154-3929 4
DAMPER 92161 92161-2414 2
WASHER,10.3X23X1.6 92200 92200-0724 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 4
BOLT-FLANGED,12X25 130 130CA1225 4
BOLT-FLANGED,12X60 130A 130CA1260 4
CIRCLIP-TYPE-C 481 481J7500 2
O RING,18MM 670 670B2018 4
