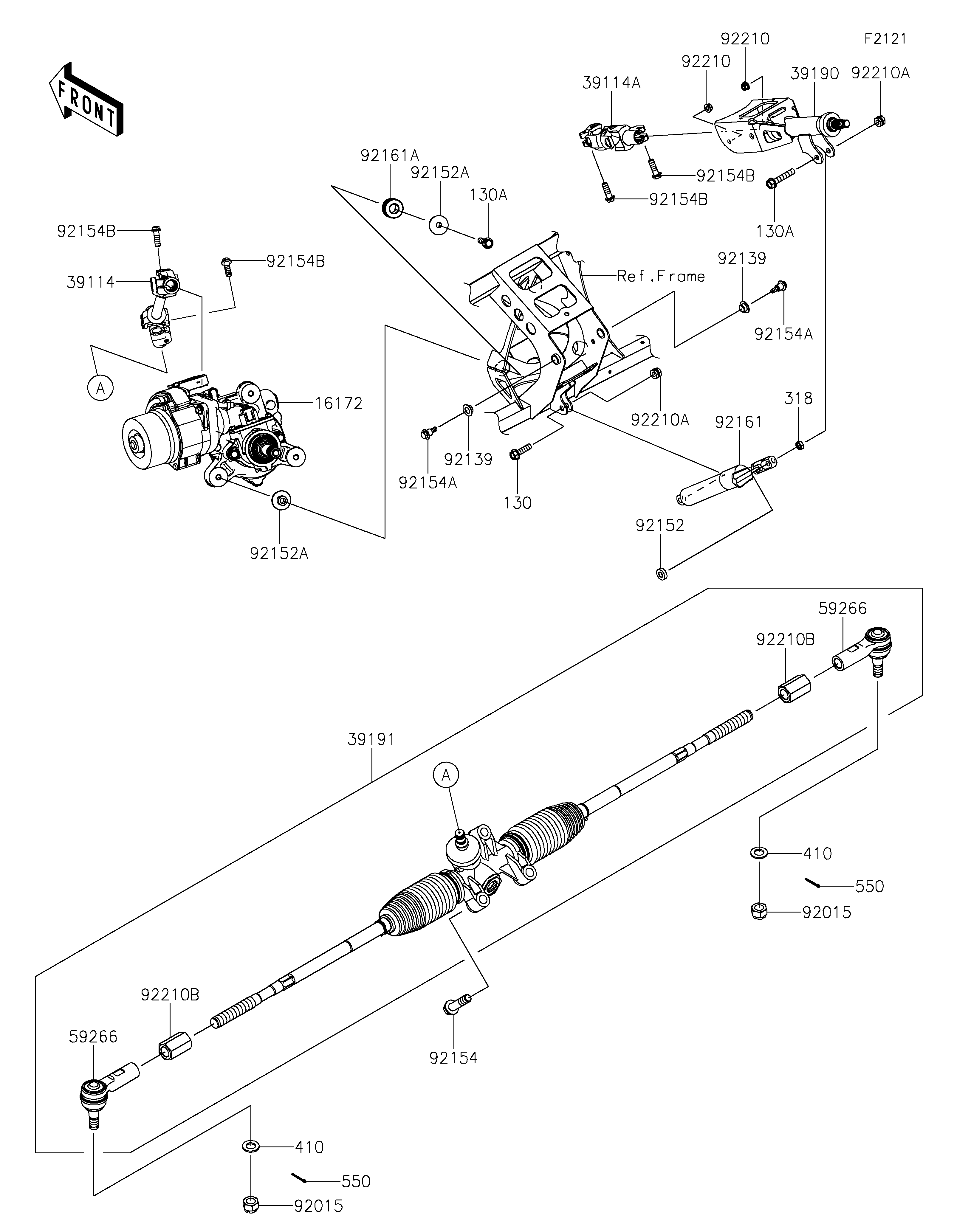

2022 TERYX KRX® 1000 TRAIL EDITION - Steering Shaft

DOWNLOAD PDF
SELECT A NEW PART
16172
39114
39114A
39190
39191
59266
59266
92015
92015
92139
92139
92152
92152A
92152A
92154
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161A
92210
92210
92210A
92210A
92210B
92210B
130
130A
130A
318
410
410
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ACTUATOR,EPS 16172 16172-0043 1
SHAFT-COMP-STRG,LWR 39114 39114-0023 1
SHAFT-COMP-STRG,UPP 39114A 39114-0024 1
SHAFT-ASSY-STEERING 39190 39190-0009 1
GEAR-ASSY-STEERING 39191 39191-0034 1
JOINT-BALL 59266 59266-0743 2
NUT,CASTLE,14MM 92015 92015-1841 2
BUSHING 92139 92139-0230 2
COLLAR,8.2X18X5 92152 92152-1848 1
COLLAR,8.5X30X10.6 92152A 92152-2149 6
BOLT,FLANGED,12X50 92154 92154-1008 3
BOLT,6X21.5 92154A 92154-1320 2
BOLT,FLANGED,8X25 92154B 92154-2190 4
DAMPER,STEERING TILT 92161 92161-2186 1
DAMPER 92161A 92161-2187 3
NUT,LOCK,FLANGED,6MM 92210 92210-0303 2
NUT,HARD LOCK,8MM 92210A 92210-0934 2
NUT 92210B 92210-1803 2
BOLT-FLANGED,8X30 130 130CA0830 1
BOLT-FLANGED,8X45 130A 130CA0845 4
NUT-HEX-SMALL,8MM 318 318BA0800 1
WASHER-PLAIN-SMALL,14MM 410 410AA1400 2
PIN-COTTER,3.0X25 550 550AA3025 2
