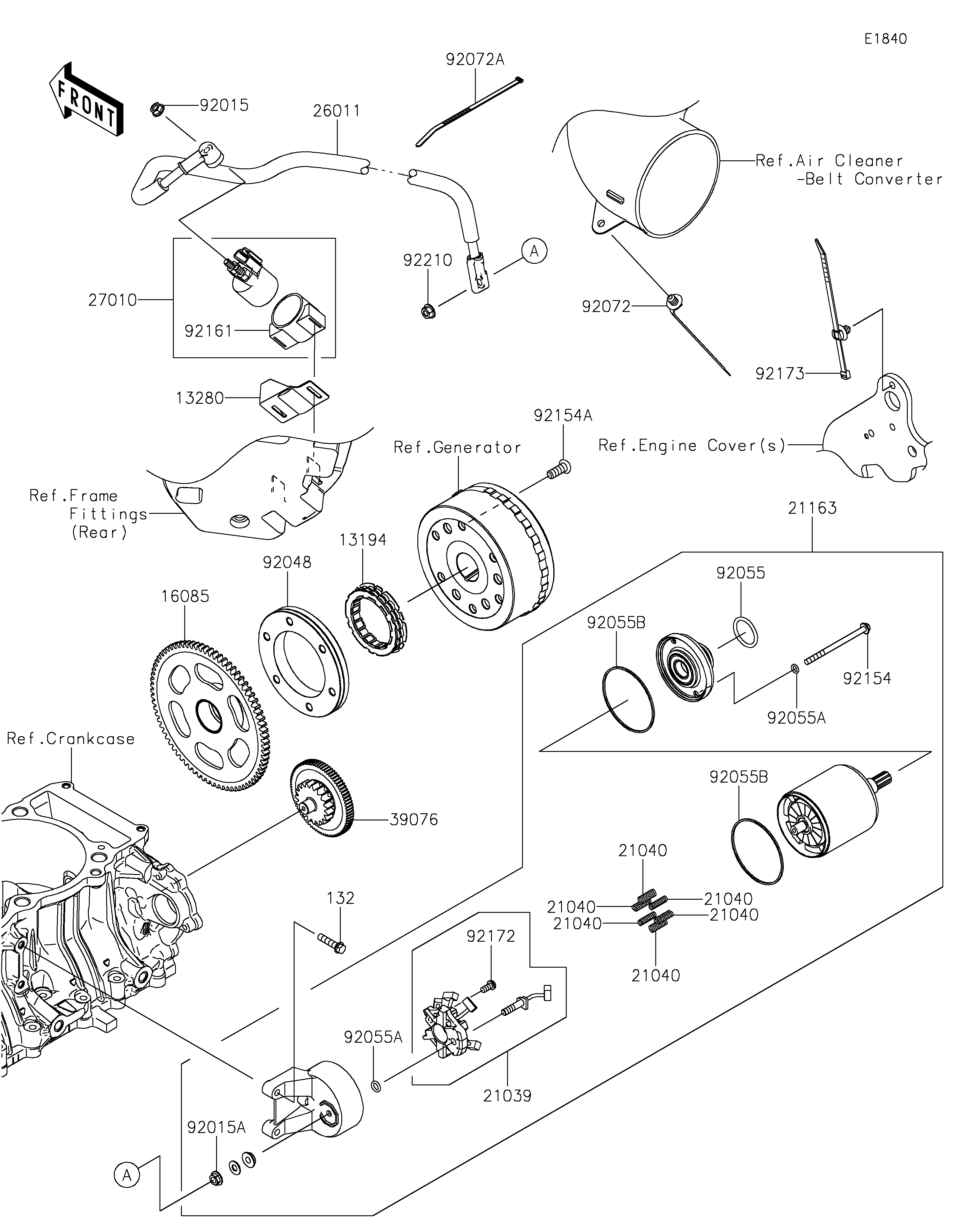

2022 TERYX KRX® 1000 TRAIL EDITION - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13194
13280
16085
21039
21040
21040
21040
21040
21040
21040
21163
26011
27010
39076
92015
92015A
92048
92055
92055A
92055A
92055B
92055B
92072
92072A
92154
92154A
92161
92172
92173
92210
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ONEWAY 13194 13194-0021 1
HOLDER,MAGNETIC SWITCH 13280 13280-0973 1
GEAR,76T 16085 16085-0691 1
BRUSH 21039 21039-0009 1
SPRING-BRUSH 21040 21040-0003 6
STARTER-ELECTRIC 21163 21163-0786 1
WIRE-LEAD 26011 26011-1914 1
SWITCH,MAGNETIC 27010 27010-0766 1
LIMITER 39076 39076-0039 1
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,STARTER MOTOR 92015A 92015-1476 1
RACE 92048 92048-0041 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 3
RING-O,STARTER MOTOR 92055B 92055-1381 2
BAND,OS170-FT7(BLACK) 92072 92072-1414 1
BAND,L=292.1 92072A 92072-3509 1
BOLT 92154 92154-0265 2
BOLT,TORX,8X20 92154A 92154-0421 6
DAMPER,MAGNETIC SWITCH 92161 92161-1722 1
SCREW 92172 92172-0334 1
CLAMP 92173 92173-2188 1
NUT,6MM 92210 92210-0188 1
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
