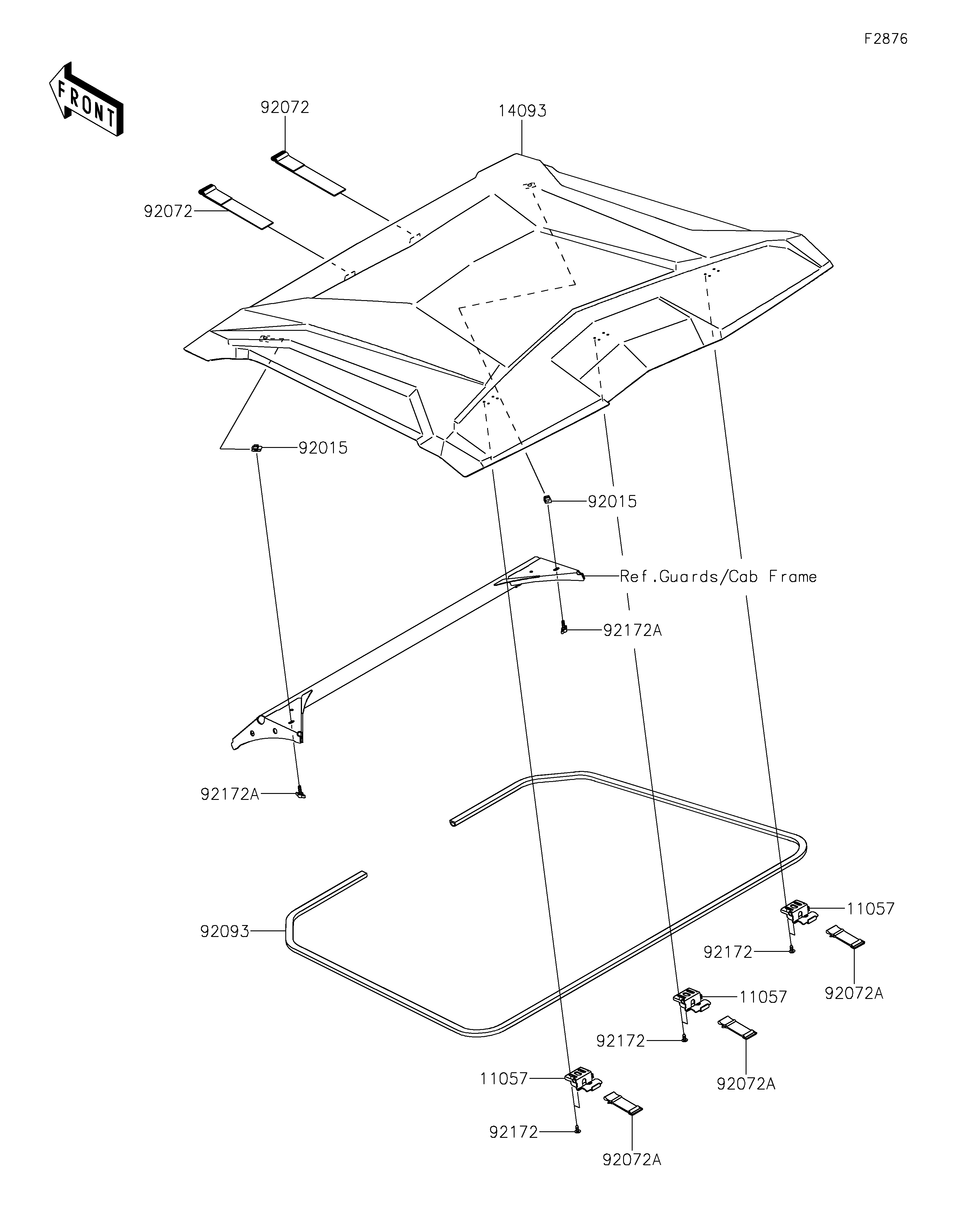

11057
11057
11057
14093
92015
92015
92072
92072
92072A
92072A
92072A
92093
92172
92172
92172
92172A
92172A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-3701 | 3 | ||
| COVER,ROOF | 14093 | 14093-0983 | 1 | ||
| NUT,6MM | 92015 | 92015-1602 | 2 | ||
| BAND | 92072 | 92072-0871 | 2 | ||
| BAND,TOOL | 92072A | 92072-1176 | 3 | ||
| SEAL | 92093 | 92093-0747 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 12 | ||
| SCREW,THUMB,6X20 | 92172A | 92172-1376 | 2 |
