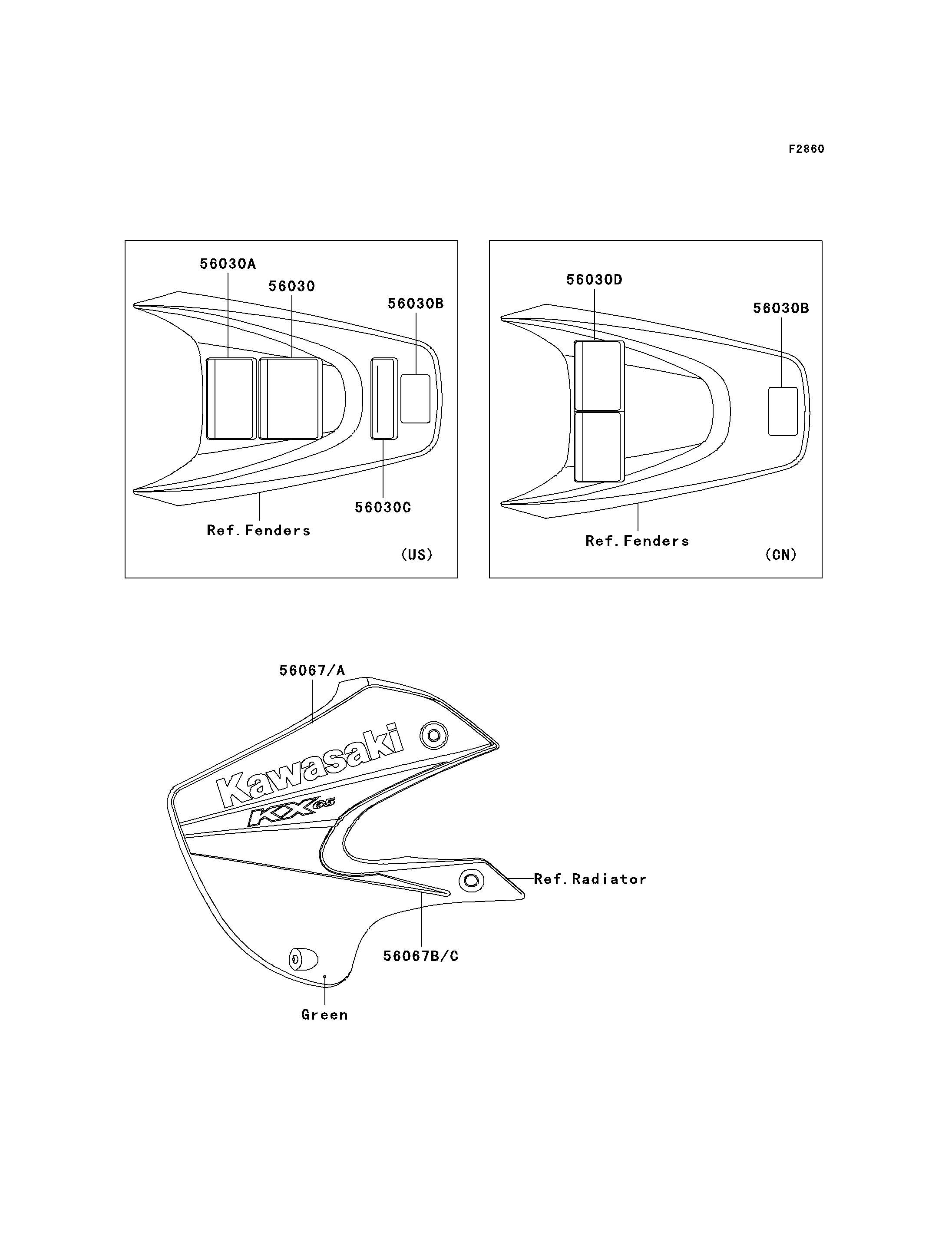

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,32:1 | 56030B | 56030-1230 | 1 | ||
| PATTERN,SHROUD,UPP,LH | 56067 | 56067-0140 | 1 | ||
| PATTERN,SHROUD,UPP,RH | 56067A | 56067-0141 | 1 | ||
| PATTERN,SHROUD,LWR,LH | 56067B | 56067-0142 | 1 | ||
| PATTERN,SHROUD,LWR,RH | 56067C | 56067-0143 | 1 | ||
| LABEL,IMPORTANT NOTICE | 56030 | 56030-1228 | 1 | US | |
| LABEL,DISCLAIMER | 56030A | 56030-1229 | 1 | US | |
| LABEL,NOISE EMISSION | 56030C | 56030-1231 | 1 | US | |
| LABEL,DISCLAIMER | 56030D | 56030-1233 | 1 | CN |
