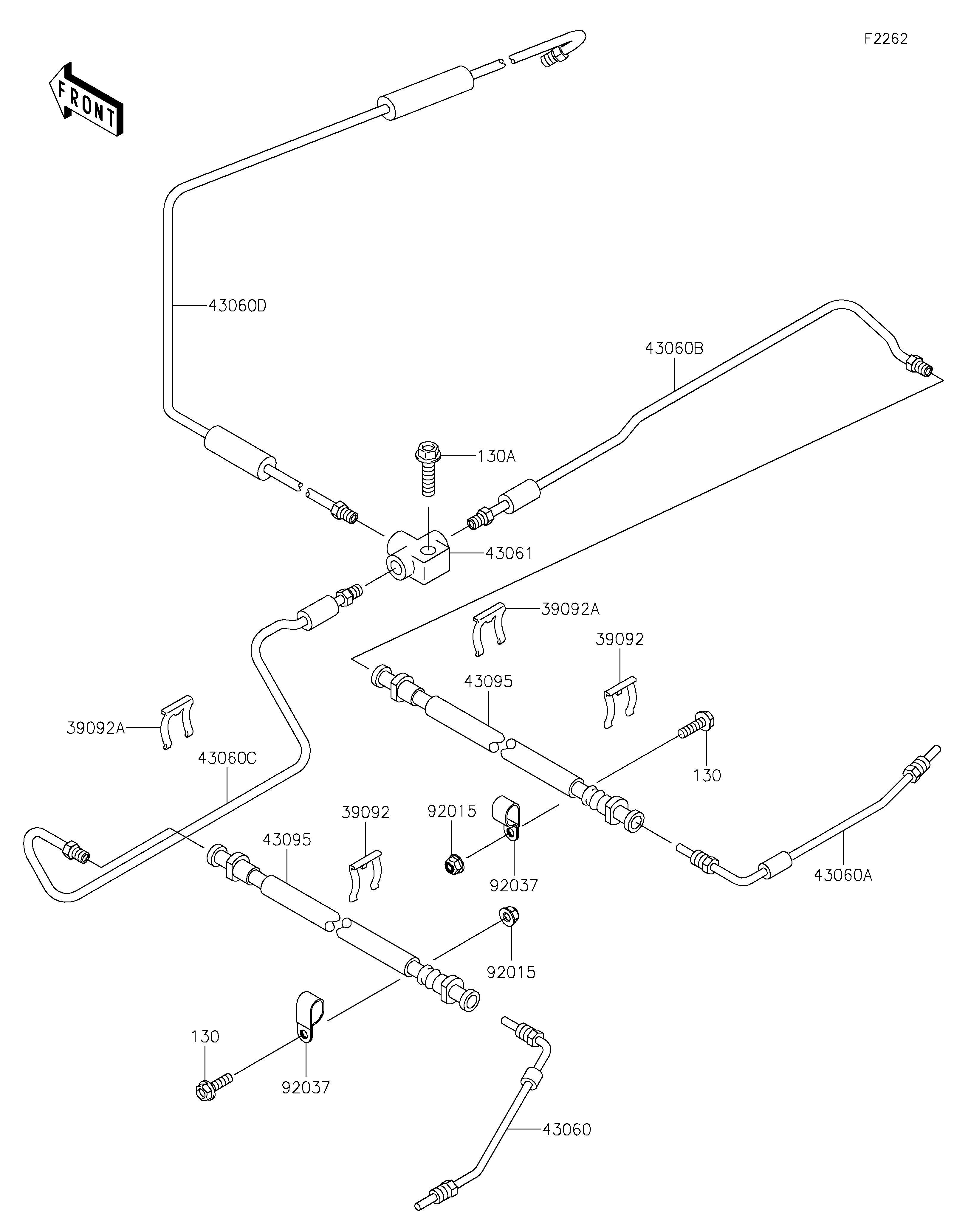

2025 MULE™ 4010 TRANS4x4® - Brake Piping
39092
39092
39092A
39092A
43060
43060A
43060B
43060C
43060D
43061
43095
43095
92015
92015
92037
92037
130
130
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-HAIR | 39092 | 39092-1052 | 2 | ||
| PIN-HAIR | 39092A | 39092-1059 | 2 | ||
| PIPE-BRAKE,RR,LH | 43060 | 43060-1083 | 1 | ||
| PIPE-BRAKE,RR,RH | 43060A | 43060-1084 | 1 | ||
| PIPE-BRAKE,MIDDLE,RH | 43060B | 43060-7503 | 1 | ||
| PIPE-BRAKE,MIDDLE,LH | 43060C | 43060-7504 | 1 | ||
| PIPE-BRAKE,FR | 43060D | 43060-7505 | 1 | ||
| JOINT-BRAKE | 43061 | 43061-1063 | 1 | ||
| HOSE-BRAKE,RR | 43095 | 43095-1823 | 2 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 2 | ||
| CLAMP | 92037 | 92037-1608 | 2 | ||
| BOLT-FLANGED,6X20 | 130 | 130AA0620 | 2 | ||
| BOLT-FLANGED,8X30 | 130A | 130CA0830 | 1 |
