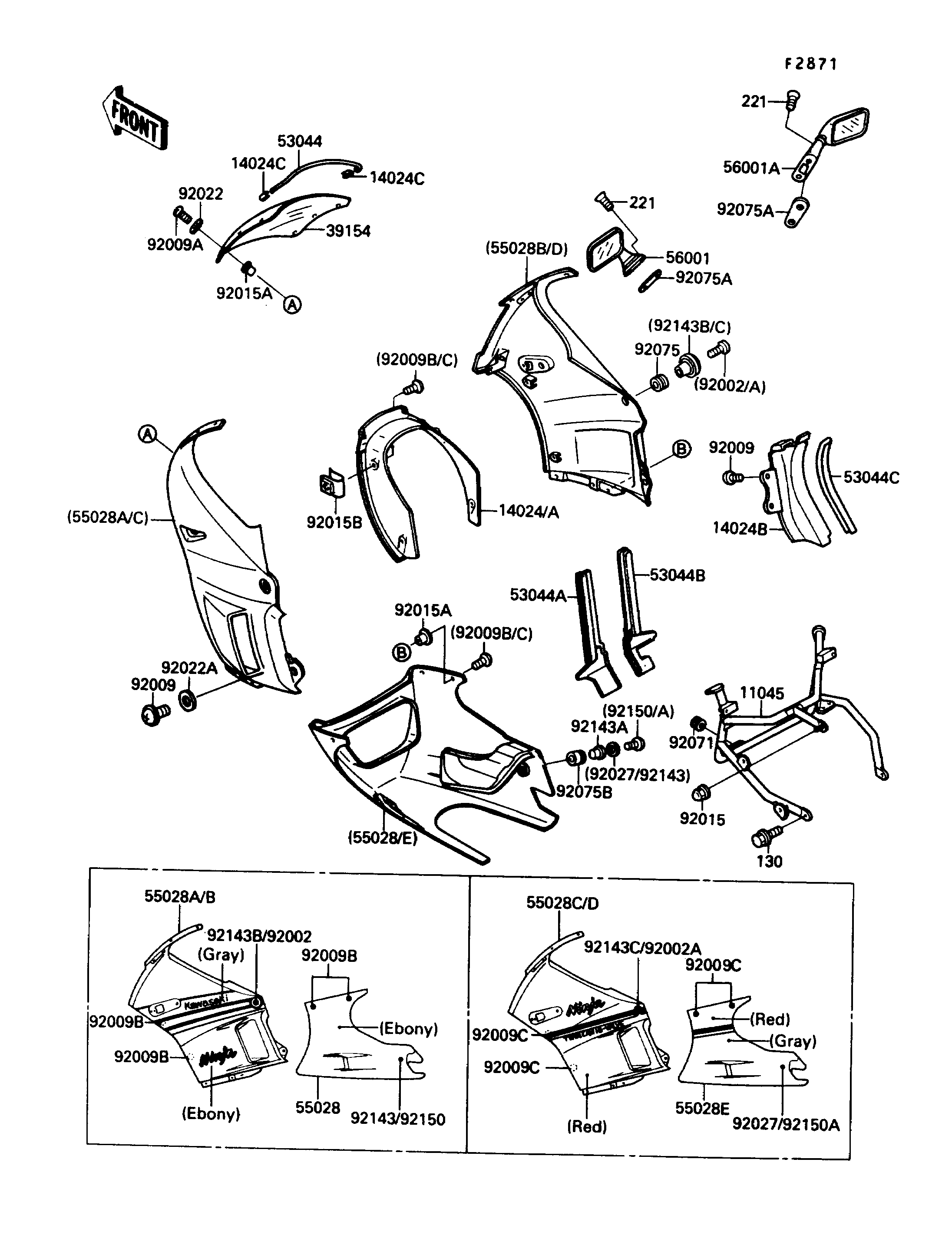

1988 NINJA® 600R - Cowling (ZX600-C1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COWLING 11045 11045-1538 1
COVER,HEAD LAMP,C.P.RED 14024 14024-1408-A5 1
COVER,HEAD LAMP,EBONY 14024A 14024-1408-H8 1
COVER,COWLING,INNER,RH 14024B 14024-1538 1
COVER,TRIM END 14024C 14025-1756 2
WINDSHIELD 39154 39154-1107 1
TRIM,WINDSHIELD 53044 53044-1130 1
TRIM,COWLING,LH 53044A 53044-1193 1
TRIM,COWLING,RH 53044B 53044-1194 1
TRIM 53044C 53044-1198 1
COWLING,LWR,EBONY 55028 55028-1156-H8 1
COWLING,UPP,LH,EBONY/GRAY 55028A 55028-5359-T4 1
COWLING,UPP,RH.EBONY/GRAY 55028B 55028-5360-T4 1
COWLING,UPP,LH,C.P.RED 55028C 55028-5377-A5 1
COWLING,UPP,RH,C.P.RED 55028D 55028-5378-A5 1
COWLING,LWR,RED/GRAYSTONE 55028E 55028-5379-CF 1
MIRROR-ASSY,LH 56001 56001-1317 1
MIRROR-ASSY,RH 56001A 56001-1318 1
BOLT,SOCKET,6X18,BLACK 92002 92002-1514 2
BOLT,SOCKET,6X18,WHITE 92002A 92002-1889 2
SCREW,6X14 92009 92009-1288 4
SCREW,5X16,BLACK 92009A 92009-1301 6
SCREW,5X20,BLACK 92009B 92009-1453 8
SCREW,5X20,WHITE 92009C 92009-1491 8
NUT,CAP,8MM,BLACK 92015 92015-1174 1
NUT,WELL,5MM 92015A 92015-1640 10
NUT,5MM 92015B 92015-1710 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
WASHER,6.5X16X1.0 92022A 92022-1654 2
COLLAR,L=6.5,WHITE 92027 92027-1886 2
GROMMET 92071 92071-056 2
DAMPER 92075 92075-1634 2
DAMPER,MIRROR 92075A 92075-1929 2
DAMPER 92075B 92075-1936 2
COLLAR,L=6.5,BLACK 92143 92143-1086 2
COLLAR,L=19.6 92143A 92143-1100 2
COLLAR,BLACK 92143B 92143-1226 2
COLLAR,WHITE 92143C 92143-1273 2
BOLT,SOCKET,6X30,BLACK 92150 92002-1945 2
BOLT,SOCKET,6X30,WHITE 92150A 92002-1998 2
BOLT-FLANGED,8X12,BLACK 130 130C0812 2
SCREW-CSK-CROS,6X30 221 221C0630 4
